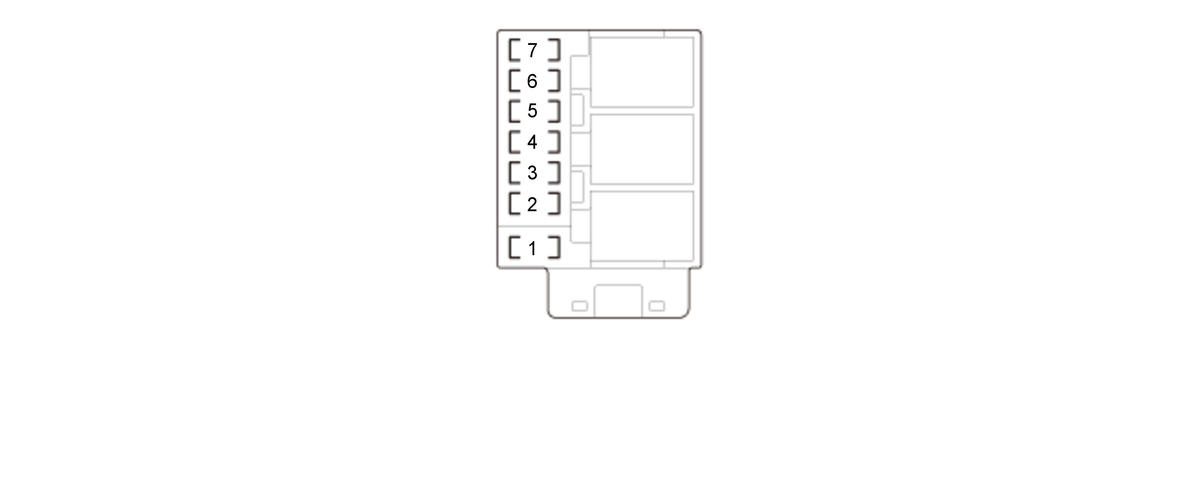

Auxiliary Under-Dash Fuse Box (D)
Auxiliary Under-Dash Fuse Box (D) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| D1 | 7.5 A | ANC/active sound control unit (IG1 METER(DC/DC)), BSI radar units (IG1 METER(DC/DC)), Climate control unit (IG1 METER(DC/DC)), Gauge control module (IG1 METER(DC/DC)), Rear control panel, Second row seat heater control unit (IG1 METER(DC/DC)), Ventilated seat control unit (IG1 METER(DC/DC)) |
| D2 | 7.5 A | Brake light relay, EPS control unit (IG1 VSA(DC/DC)), Steering angle sensor (IG1 VSA(DC/DC)), VSA modulator-control unit (IG1 VSA(DC/DC)) |
| D3 | 7.5 A | Engine mount control unit (IG1 ACM(DC/DC)), Millimeter wave radar (IG1 ACM(DC/DC)), Multipurpose camera unit (IG1 ACM(DC/DC)), Multipurpose camera unit (LDW SW) (via RDW OFF switch), RDW OFF switch indicator |
| D4 | 7.5 A | MICU (IG1 METER(DC/DC)) |
| D5 | 20 A | Audio-navigation unit (+B AUDIO(DC/DC)) |
| D6 | 10 A | ANC/active sound control unit (+B BACKUP(DC/DC)), Automatic lighting/rain sensor*, Rear controller and screen (+B BACKUP(DC/DC)) |
| D7 | 7.5 A | Via DC-DC converter ACC relay: Audio-navigation unit (ACC(DC/DC)), Media HUB unit (ACC(DC/DC)), Rear ANC/active sound control microphone (ACC(DC/DC)), USB charger unit (ACC(DC/DC)) |
*: With automatic wiper
