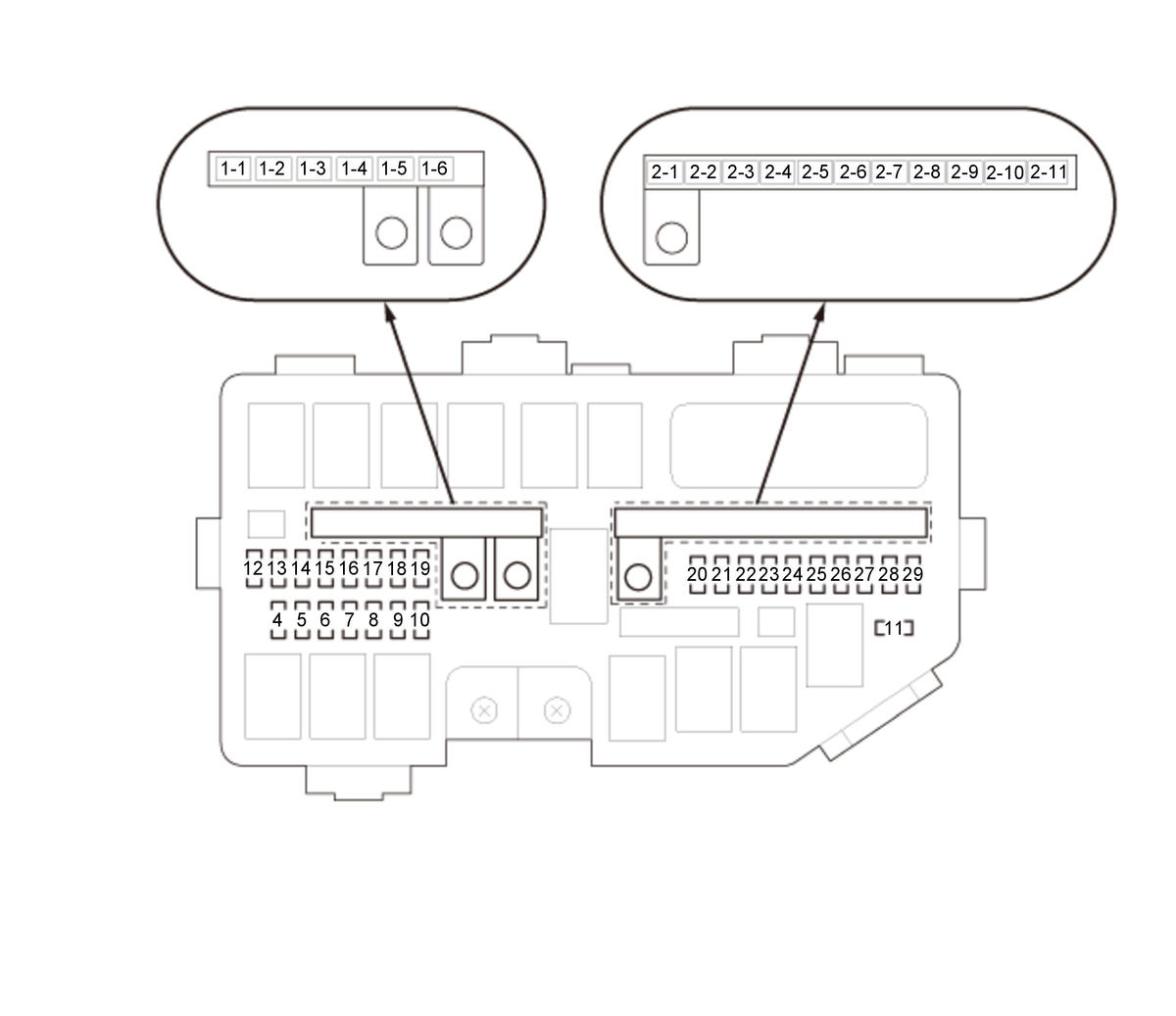

Under-Hood Fuse/Relay Box
Under-Hood Fuse/Relay Box
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A1-1 | - - - | Not used | |
| A1-2 | 30 A | Rear blower motor (via rear blower motor relay) | |
| A1-3 | 40 A | VSA modulator-control unit | |
| A1-4 | 20 A | VSA modulator-control unit | |
| A1-5 | 30 A | A/C condenser fan motor (via radiator fan relay and fan control relay), Radiator fan motor (via radiator fan relay) | |
| A1-6 | 150 A | No. A2-1, No. A2-2, No. A2-3, No. A2-4, No. A2-5, No. A2-6, No. A2-7, No. A2-8, No. A2-9, No. A2-11, No. A20, No. A21, No. A22, No. A23, No. A24, No. A25, No. A26, No. A27*, No. A28, and No. A29 fuses, Alternator |
*: With heated steering wheel |
| A2-1 | 30 A | A/C condenser fan motor (via A/C condenser fan relay) | |
| A2-2 | 30 A | Windshield wiper motor (via windshield wiper motor intermittent relay circuit and windshield wiper motor high/low relay circuit (built into the relay circuit board)) | |
| A2-3 | 20 A | Rear window washer motor relay, Windshield washer motor relay, Windshield/rear window washer motor (via rear window washer motor relay), Windshield/rear window washer motor (via windshield washer motor relay) | |
| A2-4 | 20 A | Sunshade motor-control unit | |
| A2-5 | 30 A | Engine mount control unit (via active control engine mount (ACM) control relay) | |
| A2-6 | 40 A | Front blower motor (via front blower motor relay) | |
| A2-7 | 30 A | AC inverter unit | |
| A2-8 | 30 A | Tuner-amplifier unit | |
| A2-9 | 40 A | Rear window defogger (via rear window defogger relay) | |
| A2-10 | - - - | Not used | |
| A2-11 | 20 A | Stereo amplifier | |
| A3-1 | - - - | Not used | |
| A3-2 | - - - | Not used | |
| A3-3 | - - - | Not used | |
| A3-4 | - - - | Not used | |
| A4 | 10 A | No. C25 and No. C27 fuses in the under-dash fuse/relay box (via taillight relay (built into the relay circuit board)), Taillight relay circuit (built into the relay circuit board) | |
| A5 | 7.5 A | PCM (CANCEL SW FI-ECU) | |
| A6 | 10 A | Via brake light relay Brake lights, High mount brake light, VSA modulator-control unit (BRAKE DIAG) |
|
| Via brake pedal position switch and under-dash fuse/relay box: Keyless access/TPMS control unit (STOP SW), PCM (STOP SW) |
|||
| Via brake pedal position switch, under-dash fuse/relay box, and brake light relay: Brake lights, High mount brake light, VSA modulator-control unit (BRAKE DIAG) |
|||
| MICU (STOP SW) (via brake pedal position switch) | |||
| A7* | 10 A | EVAP canister vent shut valve | *: USA and Canada models |
| A8 | 10 A | Left headlight | |
| A9 | - - - | Not used | |
| A10 | 10 A | Right headlight | |
| A11 | 7.5 A | Diode | |
| A12 | 20 A | Injector relay, PCM (INJ RLY OUT) (via injector relay) | |
| A13 | 20 A | No. A8 and No. A10 fuses (via headlight relay), Headlight relay |
|
| A14 | 10 A | PCM (+B VBUM) | |
| A15 | 10 A | Front fog light relay, Front fog lights (via front fog light relay) | |
| A16 | 15 A | MICU (+B HAZARD) | |
| A17 | 20 A | Recline motor (via front passenger's power seat adjustment switch) | |
| A18 | 20 A | Slide motor (via front passenger's power seat adjustment switch) | |
| A19 | 20 A | Stereo amplifier | |
| A20 | 7.5 A | A/C compressor clutch (via A/C compressor clutch relay) | |
| A21 | 15 A | PGM-FI main relay 1 circuit (built into the relay circuit board) | |
| Via PGM-FI main relay 1 circuit (built into the relay circuit board): No. A11 fuse, CKP sensor, CMP sensor, Electronic throttle control system (ETCS) control relay circuit (built into the relay circuit board), PCM (IGP), PGM-FI main relay 2 |
|||
| A22 | 15 A | Via PGM-FI subrelay circuit (built into the relay circuit board): No. A7 fuse, Front AF sensor (bank 2, sensor 1), Front secondary HO2S (bank 2, sensor 2), Rear AF sensor (bank 1, sensor 1), Rear secondary HO2S (bank 1, sensor 2) |
|
| PGM-FI subrelay circuit (built into the relay circuit board) | |||
| A23 | 15 A | Ignition coil relay circuit (built into the relay circuit board), Ignition coils (via Ignition coil relay circuit (built into the relay circuit board)) | |
| A24 | 15 A | PCM (IG1(DBW)) (via electronic throttle control system (ETCS) control relay circuit (built into the relay circuit board)), | |
| A25 | 20 A | No. A4 and No. A6 fuses | |
| A26 | 10 A | Automatic lighting control unit-sensor (+B BACKUP)*2, CAN gateway*4, Data link connector (DLC), Gauge control module (+B BACKUP), Hands free access power tailgate control unit/sensor (+B BACKUP)*1, Homelink unit (+B BACKUP), Keyless access/TPMS control unit (+B BACKUP), MICU (+B BACKUP), Multipurpose camera unit (+B BACKUP)*3, Power mirror control unit (+B BACKUP), Power seat control unit (+B BACKUP), Power tailgate control unit (+B BACKUP), Power window master switch (+B BACKUP), RES control unit (+B BACKUP), RES screen, Wireless charger | *1: With hands free access power tailgate *2: Without automatic wiper *3: With multipurpose camera unit *4: With CAN gateway |
| A27* | 15 A | Heated steering wheel control unit (HSW VCC) (via heated steering wheel relay and cable reel) | *: With heated steering wheel |
| A28 | 10 A | Horn relay, Horns (via horn relay) | |
| A29 | 15 A | ANC/active sound control unit (+B RADIO), BD player unit (+B RADIO), CD player unit(+B RADIO), Center display unit (+B RADIO), Infotainment control unit (+B RADIO), Tuner unit (+B RADIO), USB charger units (+B RADIO) |
