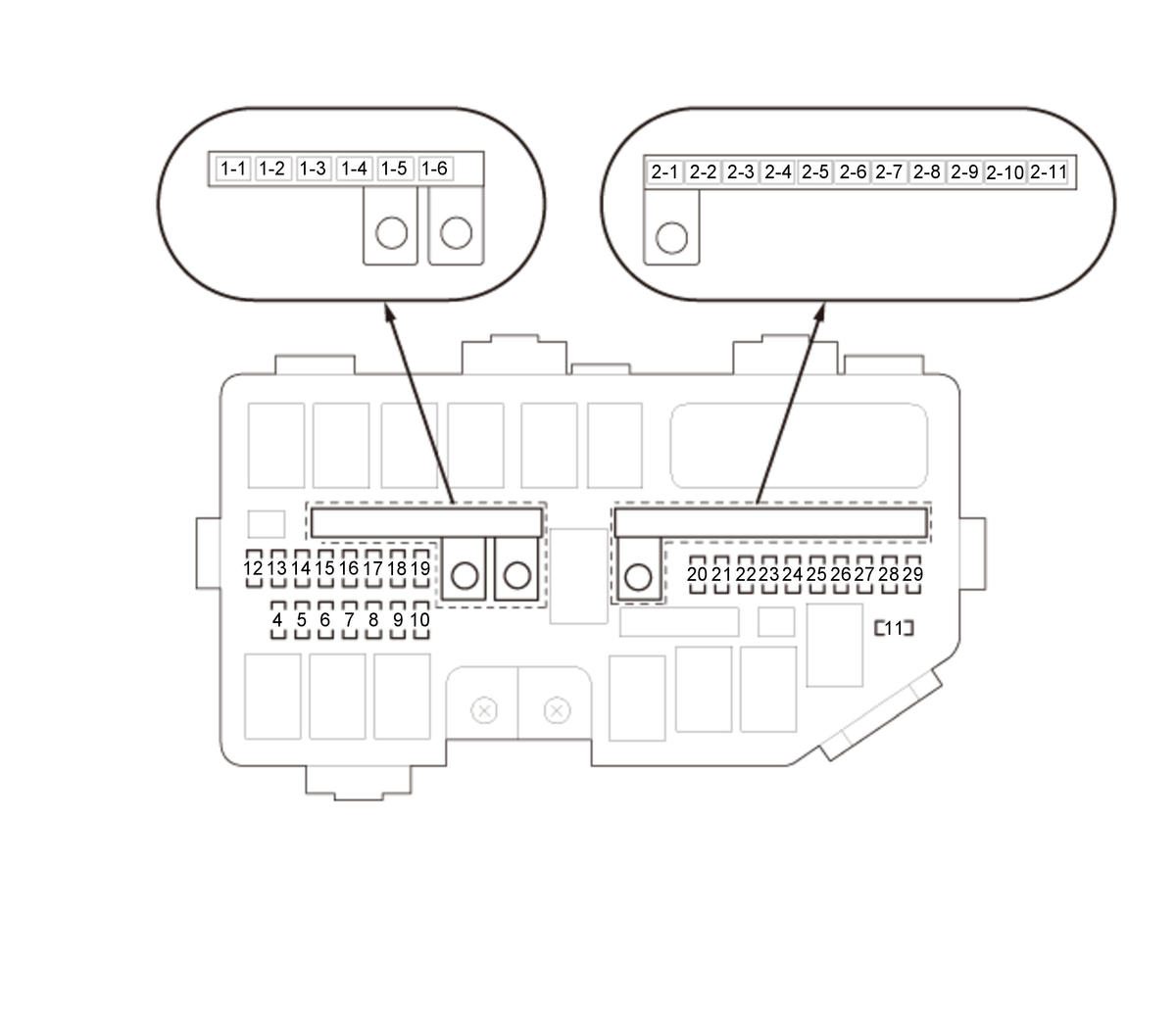

Under-Hood Fuse/Relay Box
Under-Hood Fuse/Relay Box Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | ||
|---|---|---|---|---|
| A1 | A1-1 | - - - | - - - | Not used |
| A1-2 | +B RR BLOWER | 30 A | Rear blower motor (via rear blower motor relay) | |
| A1-3 | +B VSA MTR | 40 A | VSA modulator-control unit (VSA MTR (+B)) | |
| A1-4 | +B VSA FSR | 20 A | VSA modulator-control unit (FSR +B) | |
| A1-5 | +B MAIN FAN | 30 A | A/C condenser fan motor (via radiator fan relay and fan control relay), Radiator fan motor (via radiator fan relay) |
|
| A1-6 | MAIN FUSE | 150 A | No. A2-1, No. A2-2, No. A2-3, No. A2-4, No. A2-6, No. A2-7, No. A2-8, No. A2-9, No. A20, No. A21, No. A22, No. A23, No. A24, No. A25, No. A26, No. A28, and No. A29 fuses, Alternator | |
| A2 | A2-1 | +B SUB FAN | 30 A | A/C condenser fan motor (via A/C condenser fan relay) |
| A2-2 | +B WIPER MTR | 30 A | Windshield wiper motor (via windshield wiper motor intermittent relay circuit and windshield wiper motor high/low relay circuit (built into the relay circuit board)) | |
| A2-3 | +B WASHER | 20 A | Rear window washer motor relay, Windshield washer motor relay, Windshield/rear window washer motor (via rear window washer motor relay), Windshield/rear window washer motor (via windshield washer motor relay) | |
| A2-4 | - - - | - - - | Not used | |
| A2-5 | - - - | - - - | Not used | |
| A2-6 | +B FR BLOWER | 40 A | Front blower motor (via front blower motor relay) | |
| A2-7*9 | +B AC INVERTER | 30 A | AC inverter unit (+B A/C INVERTER) | |
| A2-8 | +B AMP | 30 A | Stereo amplifier (+B AUDIO AMP) *5*8 | |
| A2-9 | +B RR DEF | 40 A | Rear window defogger (via rear window defogger relay) | |
| A2-10 | - - - | - - - | Not used | |
| A2-11 | - - - | - - - | Not used | |
| A3 | A3-1 | - - - | - - - | Not used |
| A3-2 | - - - | - - - | Not used | |
| A3-3 | - - - | - - - | Not used | |
| A3-4 | - - - | - - - | Not used | |
| A4 | 10 A | No. C25 and No. C27 fuses in the under-dash fuse/relay box (via taillight relay circuit (built into the relay circuit board)), Taillight relay circuit (built into the relay circuit board) | ||
| A5 | - - - | Not used | ||
| A6 | 10 A | Via brake light relay: Brake lights, High mount brake light, VSA modulator-control unit (BRAKE DIAG) |
||
| Via brake pedal position switch: Keyless access/TPMS control unit (STOP SW), MICU (STOP SW), PCM (STOP SW) |
||||
| Via brake pedal position switch and brake light relay: Brake lights, High mount brake light, VSA modulator-control unit (BRAKE DIAG) |
||||
| A7 | - - - | Not used | ||
| A8 | 10 A | Left headlight (low beam) | ||
| A9 | - - - | Not used | ||
| A10 | 10 A | Right headlight (low beam) | ||
| A11 | 7.5 A | Diode | ||
| A12 | 20 A | Via injector relay: Injector control module (IG(EDU)1), Injector control module (IG(EDU)2) | ||
| A13 | 20 A | No. A8 and No. A10 fuses (via headlight relay), Headlight relay | ||
| A14 | 15 A | Media HUB unit (+B USB(15A))*7, USB charger unit (+B USB(15A))*5*8 | ||
| A15 | 15 A | Front fog light relay, Front fog lights (via front fog light relay) | ||
| A16 | 15 A | MICU (+B HAZARD) | ||
| A17*1 | 20 A | Recline motor (via front passenger's power seat adjustment switch) | ||
| A18*1 | 20 A | Slide motor (via front passenger's power seat adjustment switch) | ||
| A19 | 20 A | Engine mount control unit (IG1 SOL) (via active control engine mount (ACM) control relay) | ||
| A20 | 7.5 A | A/C compressor clutch (via A/C compressor clutch relay) | ||
| A21 | 15 A | PGM-FI main relay 1 circuit (built into the relay circuit board) | ||
| Via PGM-FI main relay 1 circuit (built into the relay circuit board): No. A11 fuse, CKP sensor, CMP sensor, Electronic throttle control system (ETCS) control relay circuit (built into the relay circuit board), MAF sensor, PCM (IGP), PGM-FI main relay 2 |
||||
| A22 | 15 A | Via PGM-FI subrelay circuit (built into the relay circuit board): EVAP canister vent shut valve*4, Front AF sensor (bank 2, sensor 1), Front secondary HO2S (bank 2, sensor 2), Rear AF sensor (bank 1, sensor 1), Rear secondary HO2S (bank 1, sensor 2) |
||
| PGM-FI subrelay circuit (built into the relay circuit board) | ||||
| A23 | 15 A | Ignition coil relay circuit (built into the relay circuit board), Ignition coils (via Ignition coil relay circuit (built into the relay circuit board)) | ||
| A24 | 15 A | PCM (IG1M) (via electronic throttle control system (ETCS) control relay circuit (built into the relay circuit board)) | ||
| A25 | 20 A | No. A4 and No. A6 fuses | ||
| A26 | 10 A | Automatic lighting control unit-sensor (+B BACKUP), Data link connector (+B BACKUP), Gauge control module (+B BACKUP), Homelink unit (+B BACKUP), Keyless access/TPMS control unit (+B BACKUP), MICU (+B BACKUP), Multipurpose camera unit (+B BACKUP), Power mirror control unit (+B BACK UP)*3, Power seat control unit (+B BACKUP)*3, Power tailgate control unit (+B BACKUP), Power window master switch (+B BACKUP), Rear controller and screen (+B BACKUP)*6*7 | ||
| A27*2 | 10 A | Heated steering wheel control unit (HSW VCC) (via heated steering wheel relay and cable reel) | ||
| A28 | 10 A | Horn relay, Horns (via horn relay) | ||
| A29 | 20 A | ANC/active sound control unit (+B RADIO), Audio unit (+B RADIO)*6, Audio-navigation unit (+B RADIO)*5 | ||
| *1: With front passenger's power seat *2: With heated steering wheel *3: With DPMS *4: USA and Canada models *5: With navigation *6: Without navigation *7: Except color audio type (5-inch screen) *8: Mexico model *9: With AC inverter |
||||
