Dashboard - 1/4

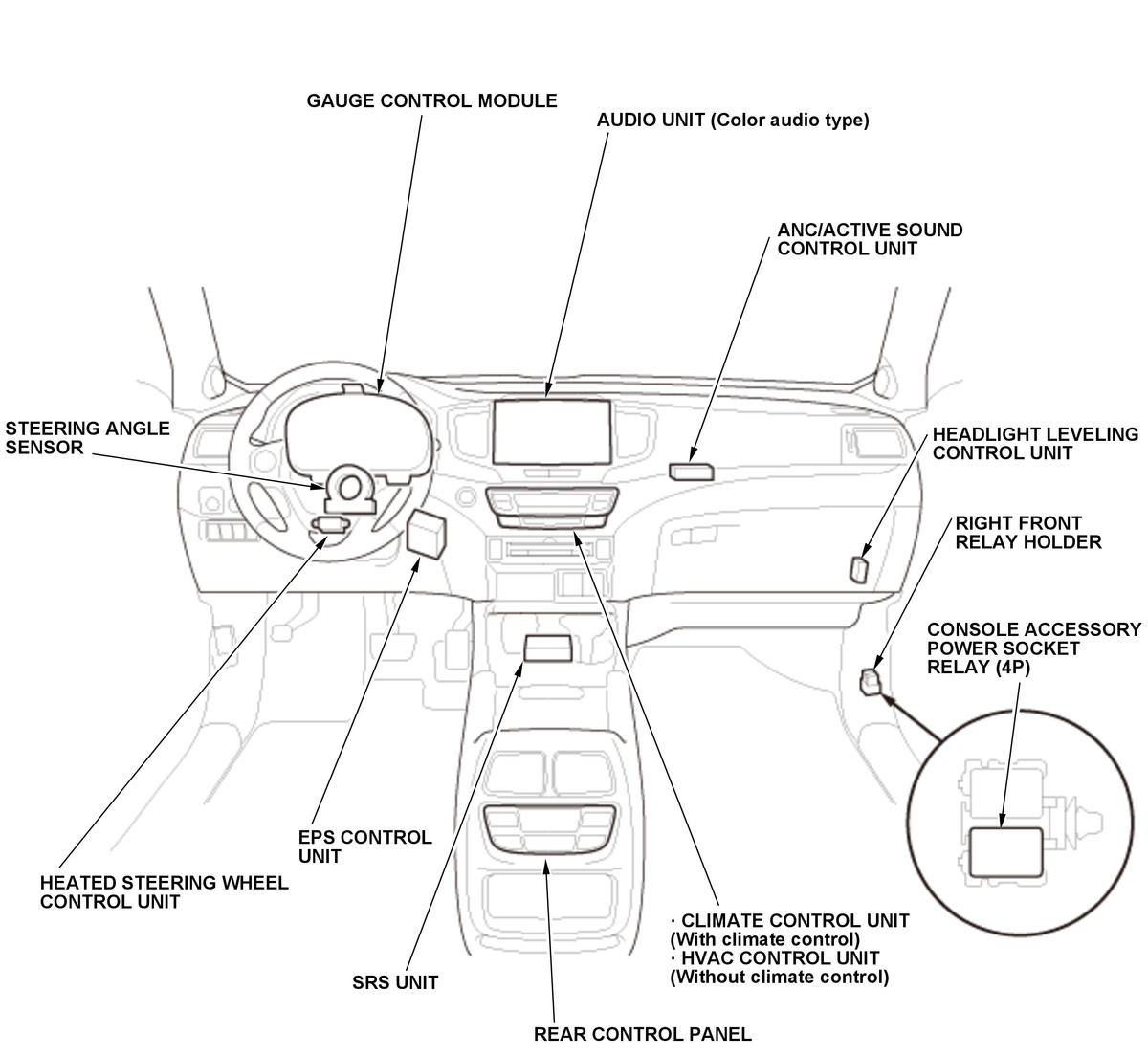

Dashboard - 1/4 Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
