Relay And Control Unit Locations (2019 2020 2021): Rear

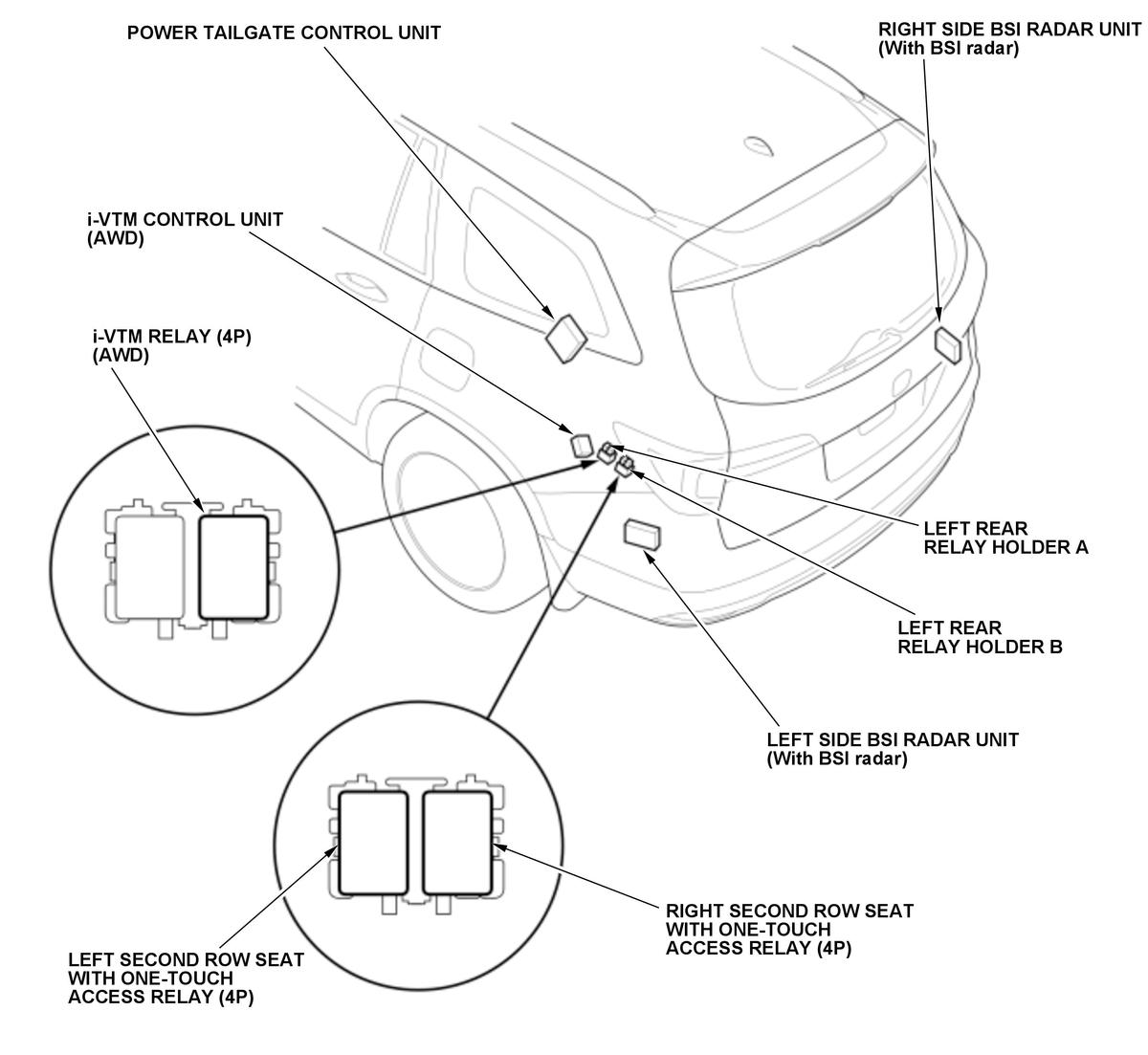

Rear Location

GHH306357

Courtesy of HONDA, U.S.A., INC.
