Steering Lock Removal and Installation: Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (2016) , or SRS Component Location Index (2017 2018 2019 2020 2021) , and the Precautions And Procedures before doing repairs or service.

1. Steering Lock - Install

   Courtesy of HONDA, U.S.A., INC.

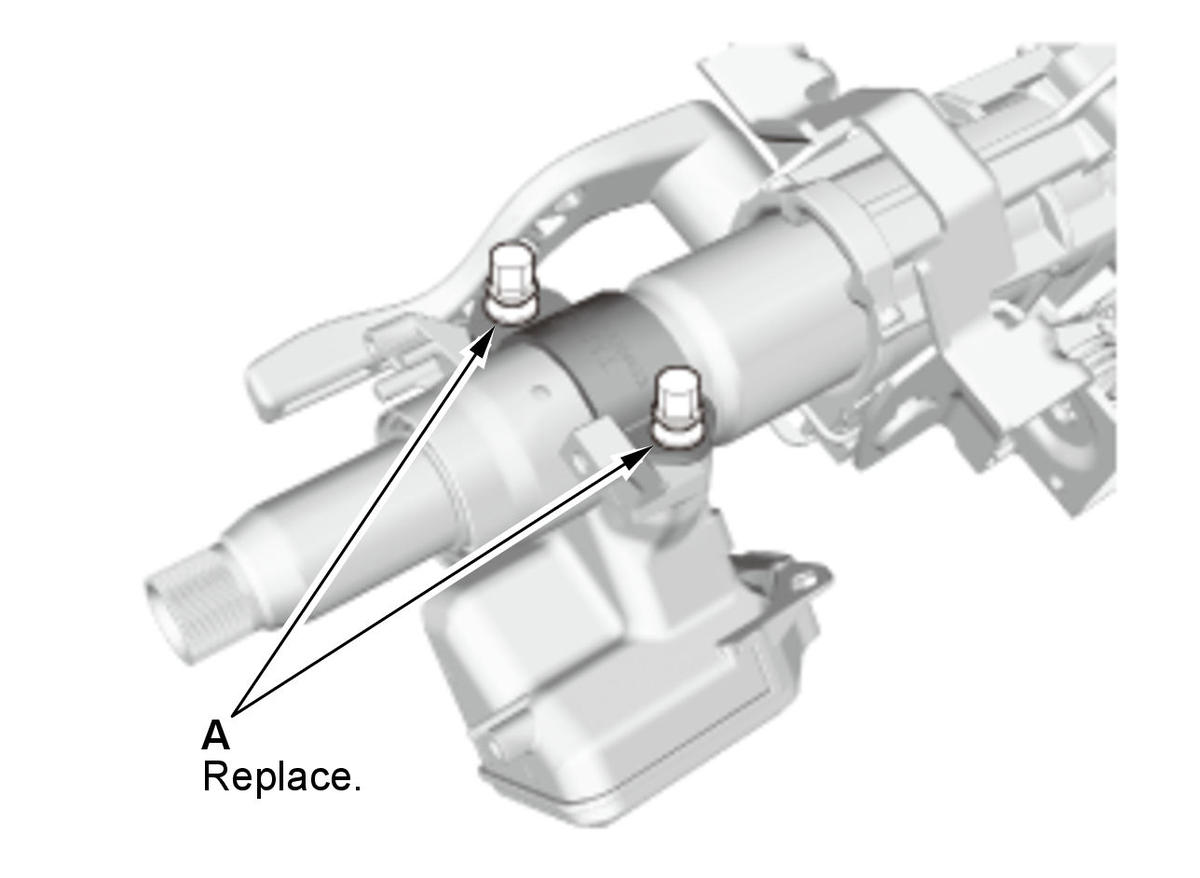

   1. Loosely tighten the new shear bolts (A).

   Courtesy of HONDA, U.S.A., INC.

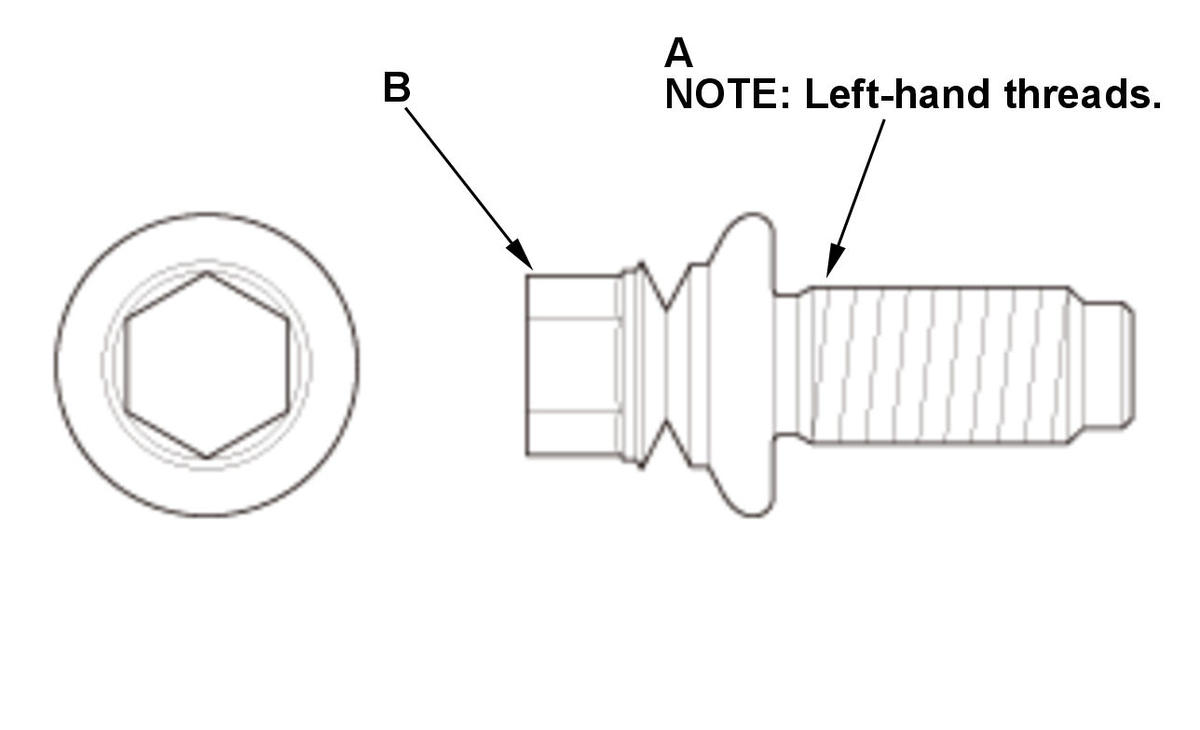

   2. Tighten the shear bolts (A) until the hex heads (B) twist off.

2. Steering Column/EPS Control Unit - Install
3. Keyless Access System - Register
