DTC : P0521: General Description

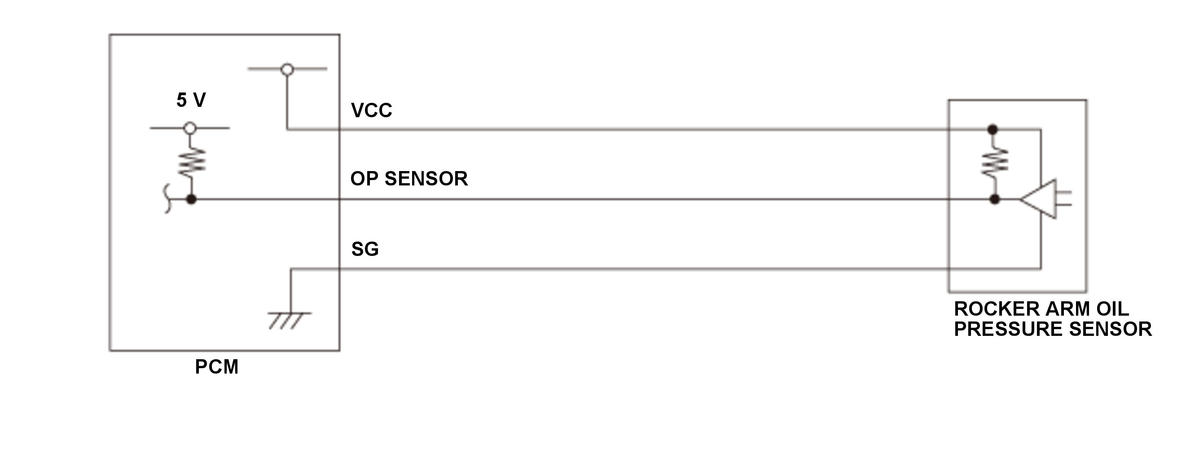

GHH306703Courtesy of HONDA, U.S.A., INC.

The rocker arm oil pressure sensor detects engine oil pressure in the valve pause system. When the voltage from the rocker arm oil pressure sensor is a set value for a specified time, the powertrain control module (PCM) detects a malfunction and stores a DTC.
