Keyless Door Lock Control

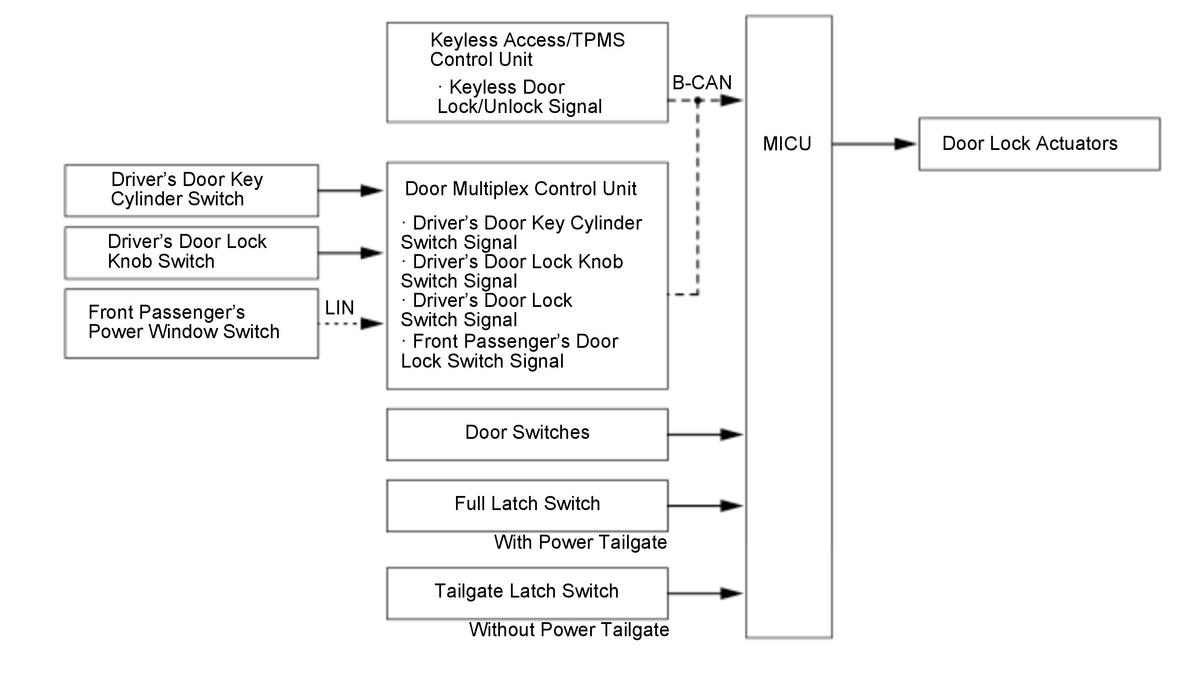

The remote can transmit a lock or unlock signal to the keyless access/TPMS control unit, which sends the keyless request to the MICU using the B-CAN, then the MICU controls the door lock actuators by the B-CAN signal, and various switch signal. The customization menu can also set the relock timer value.
