Keyless Access System Touch Sensor Circuit

  1. Keyless access system check

    -1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter HISTORY DATA.

    One-Push - KEYLESS ACCESS CONTROL UNIT- HISTORY DATA

    -2. Select HISTORY CLEAR, and back to TEST MODE menu:

    NOTE:  When the freeze data is cleared, the information indicates "NOT CONFIRMED".

    • DRIVER DOOR UNLOCK SWITCH
    • DRIVER DOOR LOCK SWITCH
    • FRONT PASSENGER DOOR UNLOCK SWITCH
    • FRONT PASSENGER DOOR LOCK SWITCH

    - 3. Turn the vehicle to the OFF (LOCK) mode.

    - 4. Get out of the vehicle with the keyless remote, and touch the each door outer handle touch sensor and push the lock button.

    - 5. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter HISTORY DATA.

    One-Push - KEYLESS ACCESS CONTROL UNIT- HISTORY DATA

    - 6. Recheck HISTORY DATA.

    • DRIVER DOOR UNLOCK SWITCH
    • DRIVER DOOR LOCK SWITCH
    • FRONT PASSENGER DOOR UNLOCK SWITCH
    • FRONT PASSENGER DOOR LOCK SWITCH

    Is all the information OK?

    YES

    Intermittent failure, the system is OK at this time.

    NO

    Go to step 2.

  2. Open wire check (GND line)

    -1. Disconnect the following connectors.

    Each door outer handle 8P connectors

    - 2. Check for continuity between test points 1 and 2.

    Driver's door

    Test condition Vehicle OFF (LOCK) mode
    Driver's door outer handle 8P connector: disconnected
    Test point 1 Driver's door outer handle 8P connector No. 8
    Test point 2 Body ground

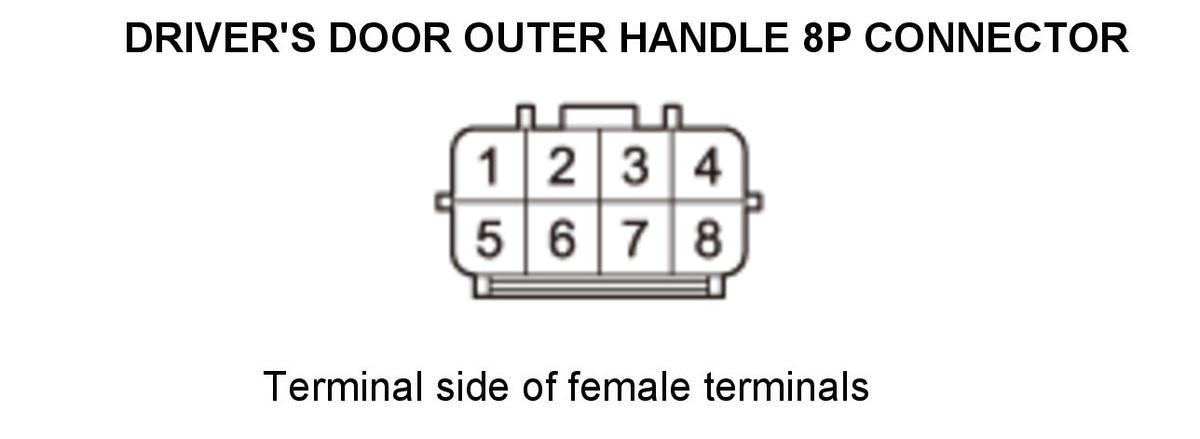

    GHH312320Courtesy of HONDA, U.S.A., INC.

    Front passenger's door

    Test condition Vehicle OFF (LOCK) mode
    Front passenger's door outer handle 8P connector: disconnected
    Test point 1 Front passenger's door outer handle 8P connector No. 8
    Test point 2 Body ground

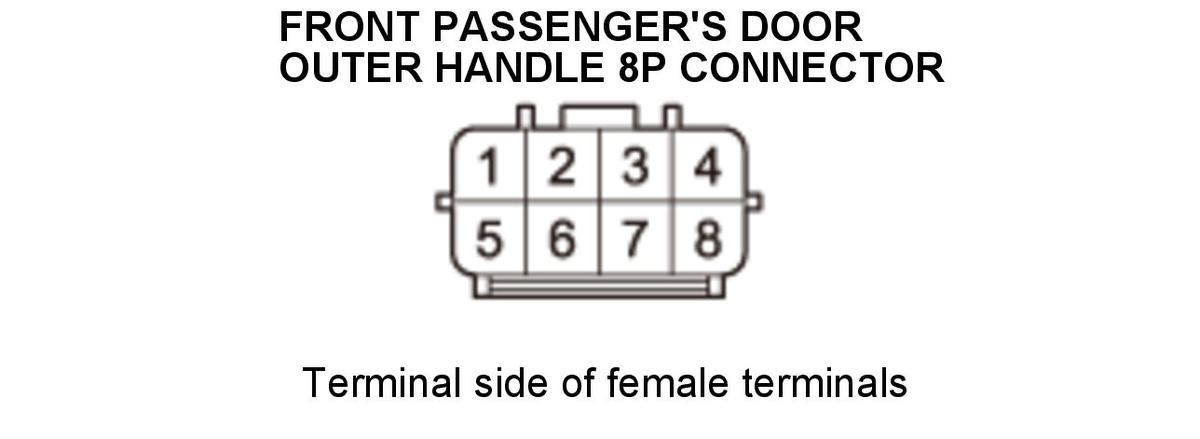

    GHH312321Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND/GND wires are OK. Go to step 3.

    NO

    Repair an open or high resistance in the ground wire or poor ground (G401, G405).

  3. Determine possible failure area (TS line, VOUT line)

    -1. Measure the voltage between test points 1 and 2.

    Driver's door

    Test condition Vehicle OFF (LOCK) mode
    Driver's door outer handle 8P connector: disconnected
    Test point 1 Driver's door outer handle 8P connector No. 4
    Test point 2 Body ground

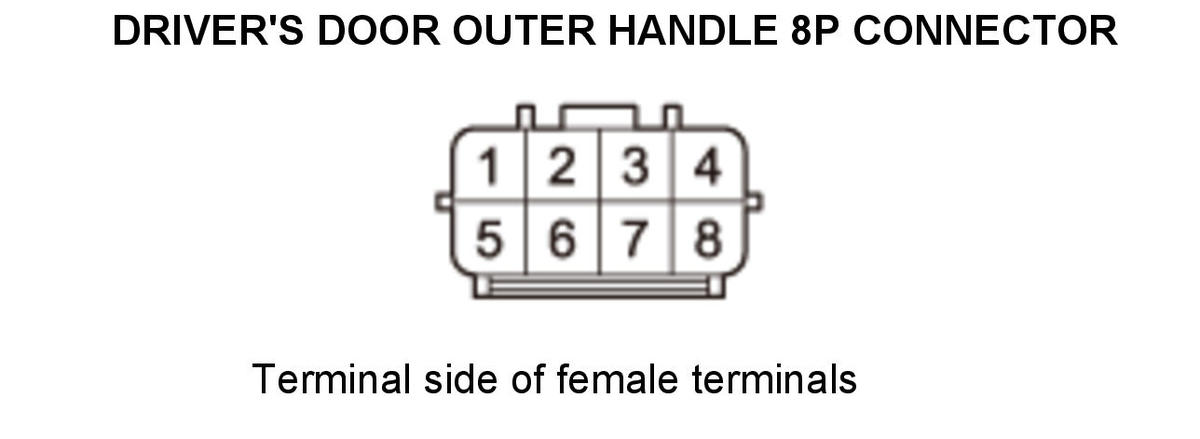

    GHH312322Courtesy of HONDA, U.S.A., INC.

    Front passenger's door

    Test condition Vehicle OFF (LOCK) mode
    Front passenger's door outer handle 8P connector: disconnected
    Test point 1 Front passenger's door outer handle 8P connector No. 4
    Test point 2 Body ground

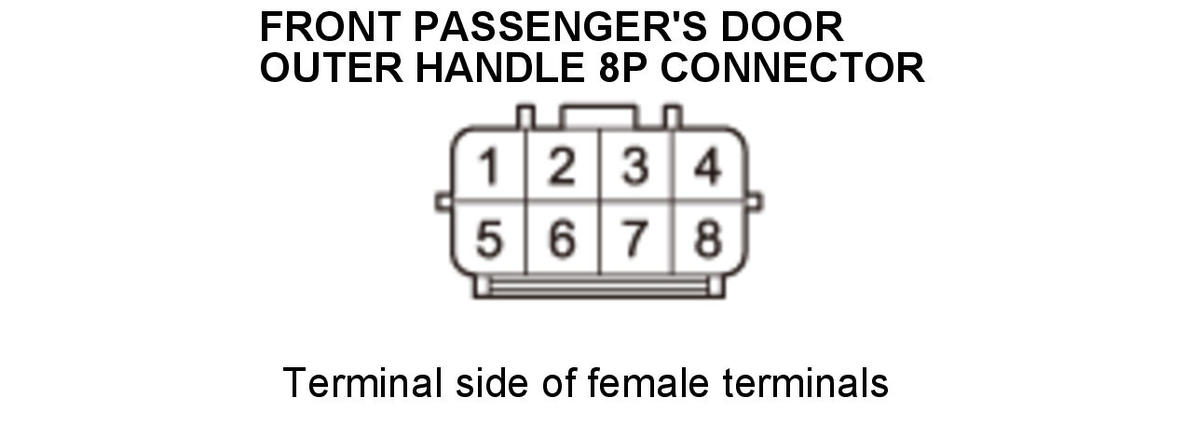

    GHH312323Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 4.

    NO

    Go to step 7.

  4. Open wire check (TS FR DR and TS FR AS lines)

    -1. Disconnect the following connector.

    Keyless access/TPMS control unit connector C (20P)

    - 2. Connect terminals A and B with jumper wires.

    Driver's door

    Terminal A Driver's door outer handle 8P connector No. 3
    Terminal B Body ground
    GHH312324Courtesy of HONDA, U.S.A., INC.

    Front passenger's door

    Terminal A Front passenger's door outer handle 8P connector No. 3
    Terminal B Body ground

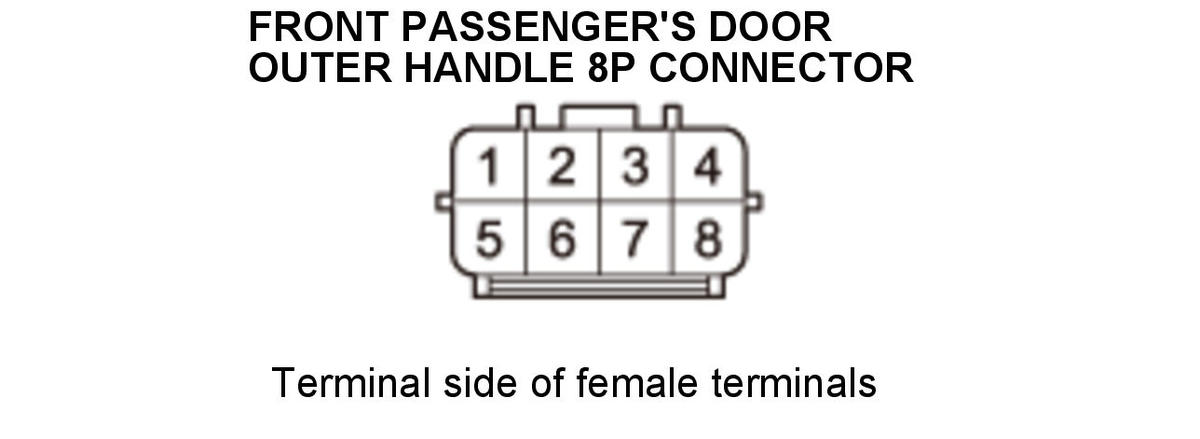

    GHH312325Courtesy of HONDA, U.S.A., INC.

    - 3. Check for continuity between test points 1 and 2 individually.

    Test condition Vehicle OFF (LOCK) mode
    Each door outer handle 8P connectors: disconnected
    Each door outer handle 8P connectors: jumped to body ground
    Keyless access/TPMS control unit connector C (20P): disconnected
    Test point 1 Keyless access/TPMS control unit connector C (20P) No. 15 - Refer to: or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018) or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021) .
    Test point 2 Body ground
    Test point 1 Keyless access/TPMS control unit connector C (20P) No. 17 - Refer to:
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018) or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021) .
    Test point 2 Body ground

    Is there continuity?

    YES

    The TS FR DR and TS FR AS wires are not open. Go to step 5.

    NO

    Repair an open or high resistance in the wire.

  5. Shorted wire check (TS FR DR and TS FR AS lines)

    -1. Remove the jumper wires from the door outer handle connectors.

    - 2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Each door outer handle 8P connectors: disconnected
    Keyless access/TPMS control unit connector C (20P): disconnected
    Test point 1 Keyless access/TPMS control unit connector C (20P) No. 15 - Refer to:
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018) or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021) .
    Test point 2 Body ground
    Test point 1 Keyless access/TPMS control unit connector C (20P) No. 17 - Refer to:
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018) or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021) .
    Test point 2 Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The TS FR DR and TS FR AS wires are OK. Go to step 6.

  6. Door outer handle touch sensor check (substitution)

    -1. Substitute a known-good door outer handle touch sensor, and recheck.

    Is the system OK?

    YES

    Faulty the original door outer handle touch sensor; replace the Front Door Outer Handle - Removal and Installation .

    NO

    Replace the Keyless Access/TPMS Control Unit - Removal and Installation .

  7. Open wire check (VOUT FR DR and VOUT FR AS lines)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Each door outer handle 8P connectors: disconnected
    Test point 1 Keyless access/TPMS control unit connector A (32P) No. 19 - Refer to:
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018) or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021) .
    Test point 2 Body ground
    Test point 1 Keyless access/TPMS control unit connector A (32P) No. 21 - Refer to:
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018) or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021) .
    Test point 2 Body ground

    Is there battery voltage?

    YES

    Repair an open or high resistance in the wire.

    NO

    The VOUT FR DR and VOUT FR AS wires are OK. Replace the Keyless Access/TPMS Control Unit - Removal and Installation .
