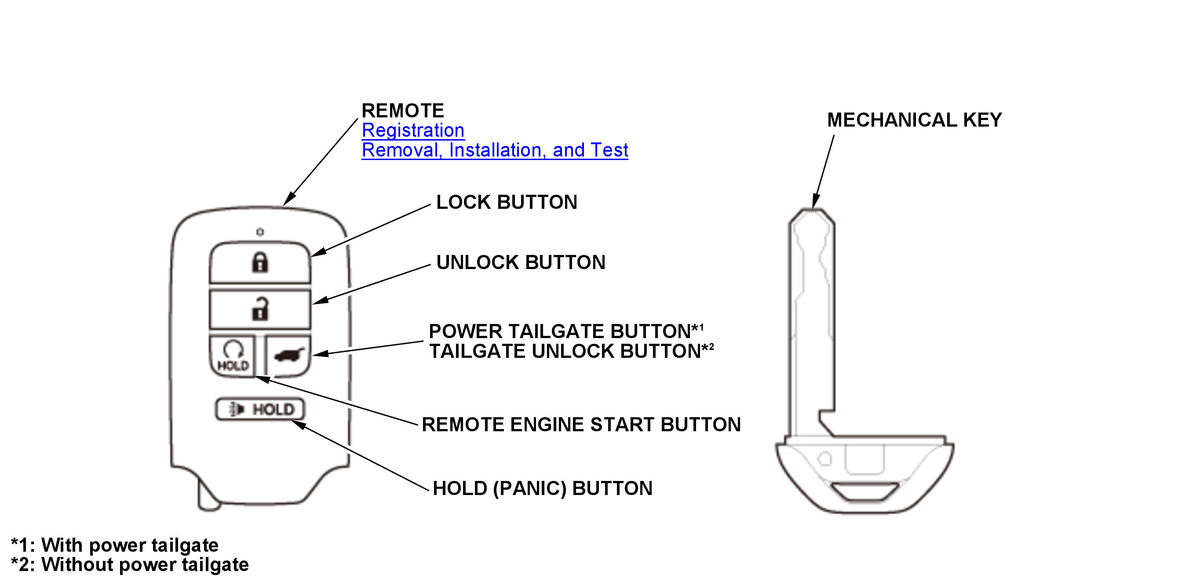

Keyless/Power Door Locks/Security System

• For the Keyless Access System, go to: Keyless Access System Component Location Index .
• For relationships between signals in a system, refer to System Diagram - Go to: Keyless/Power Door Locks/Security System Description - System Diagram .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

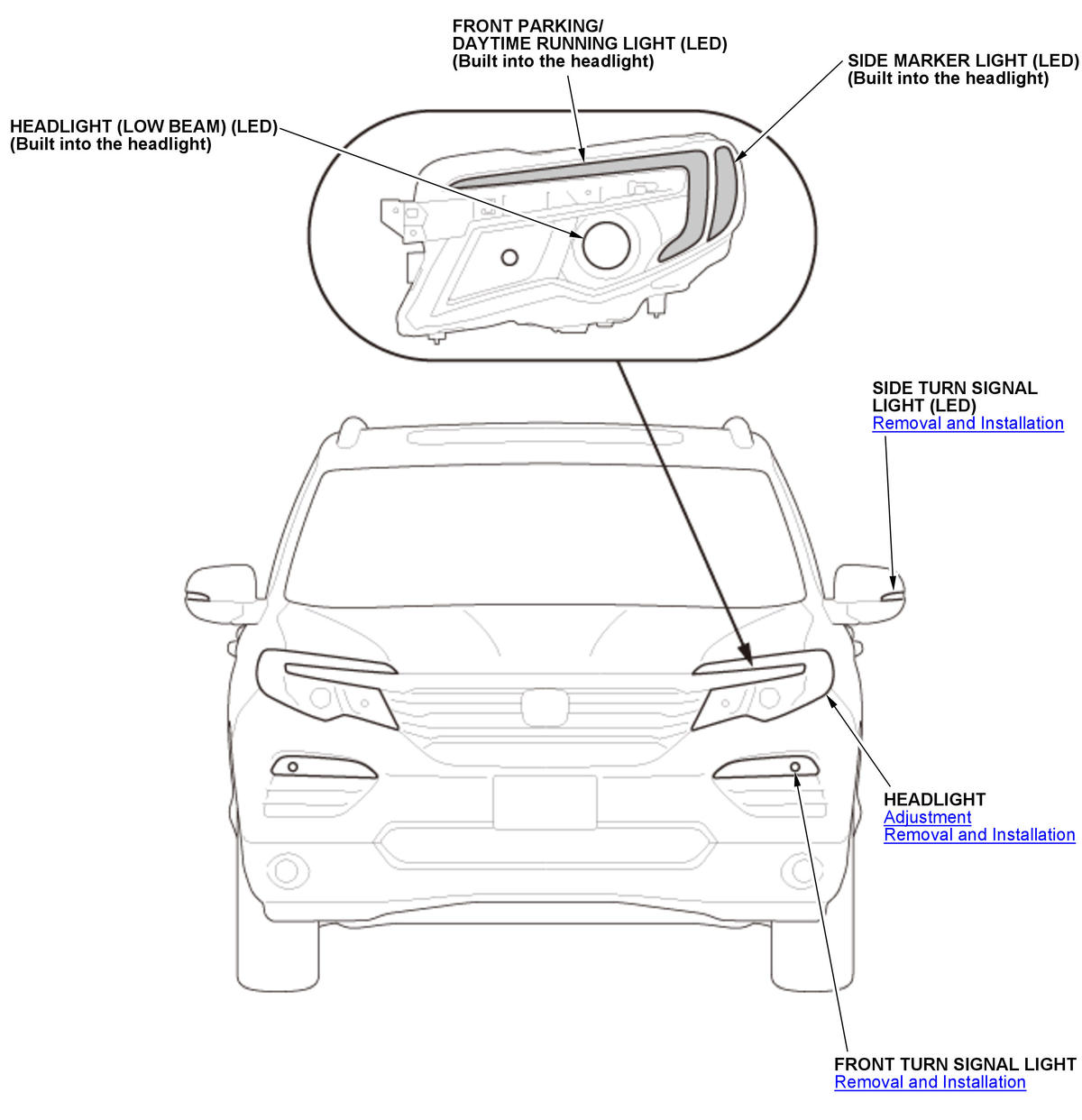

'16-18 With LED headlight (Low Beam)

Courtesy of HONDA, U.S.A., INC.

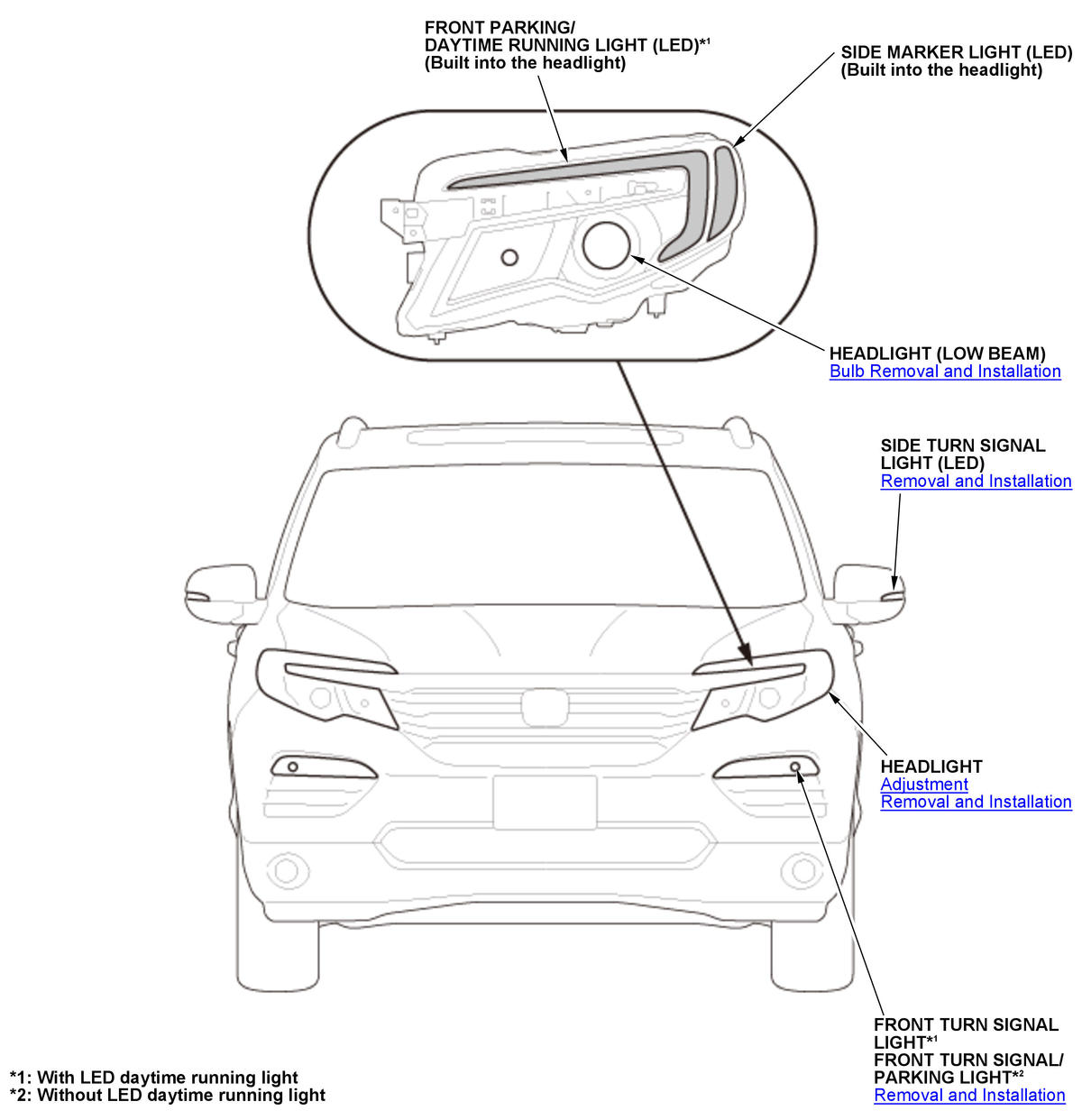

'16-18 Without LED headlight (Low Beam)

Courtesy of HONDA, U.S.A., INC.

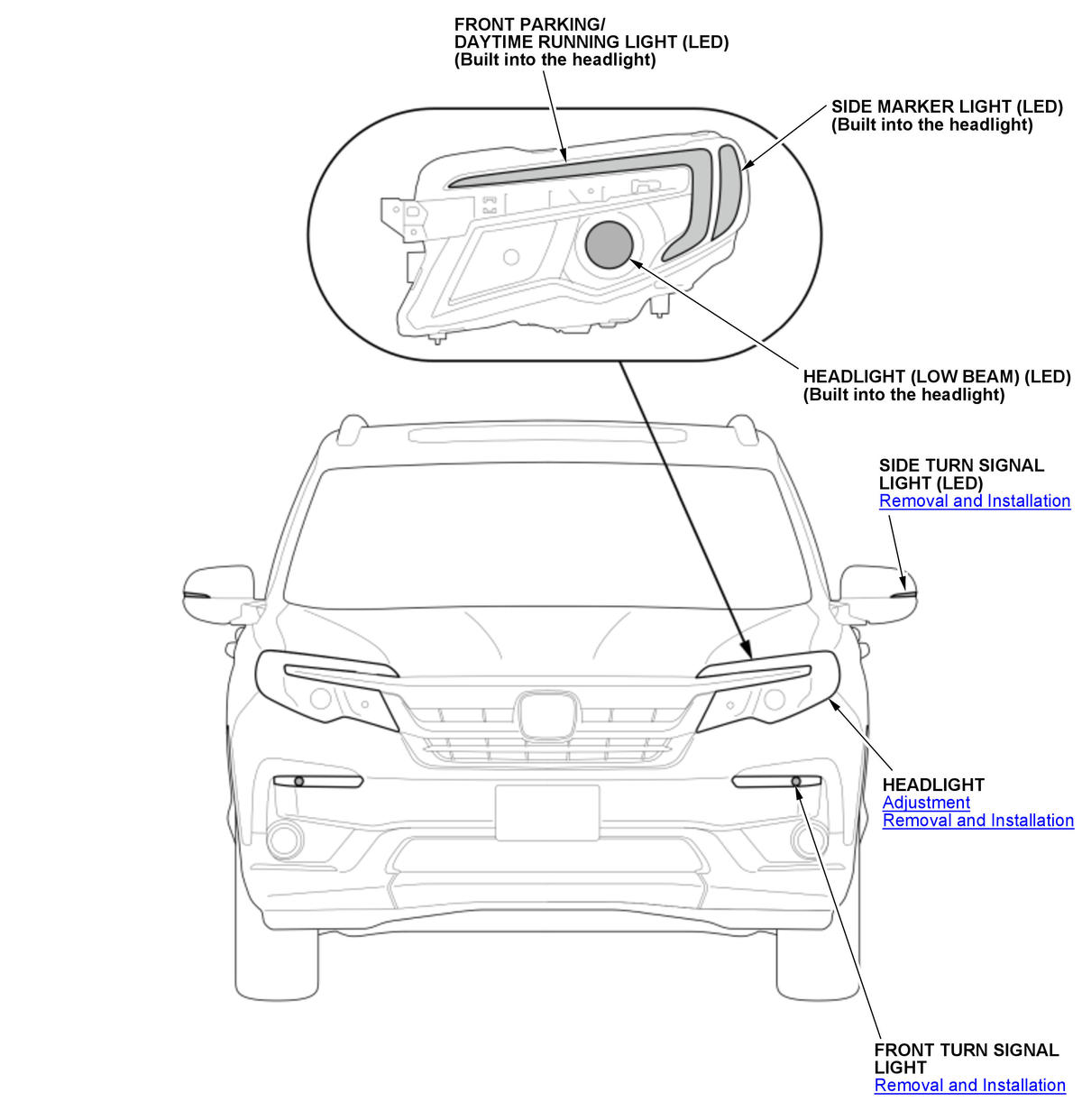

'19-21 With LED Headlight (Low Beam)

Courtesy of HONDA, U.S.A., INC.

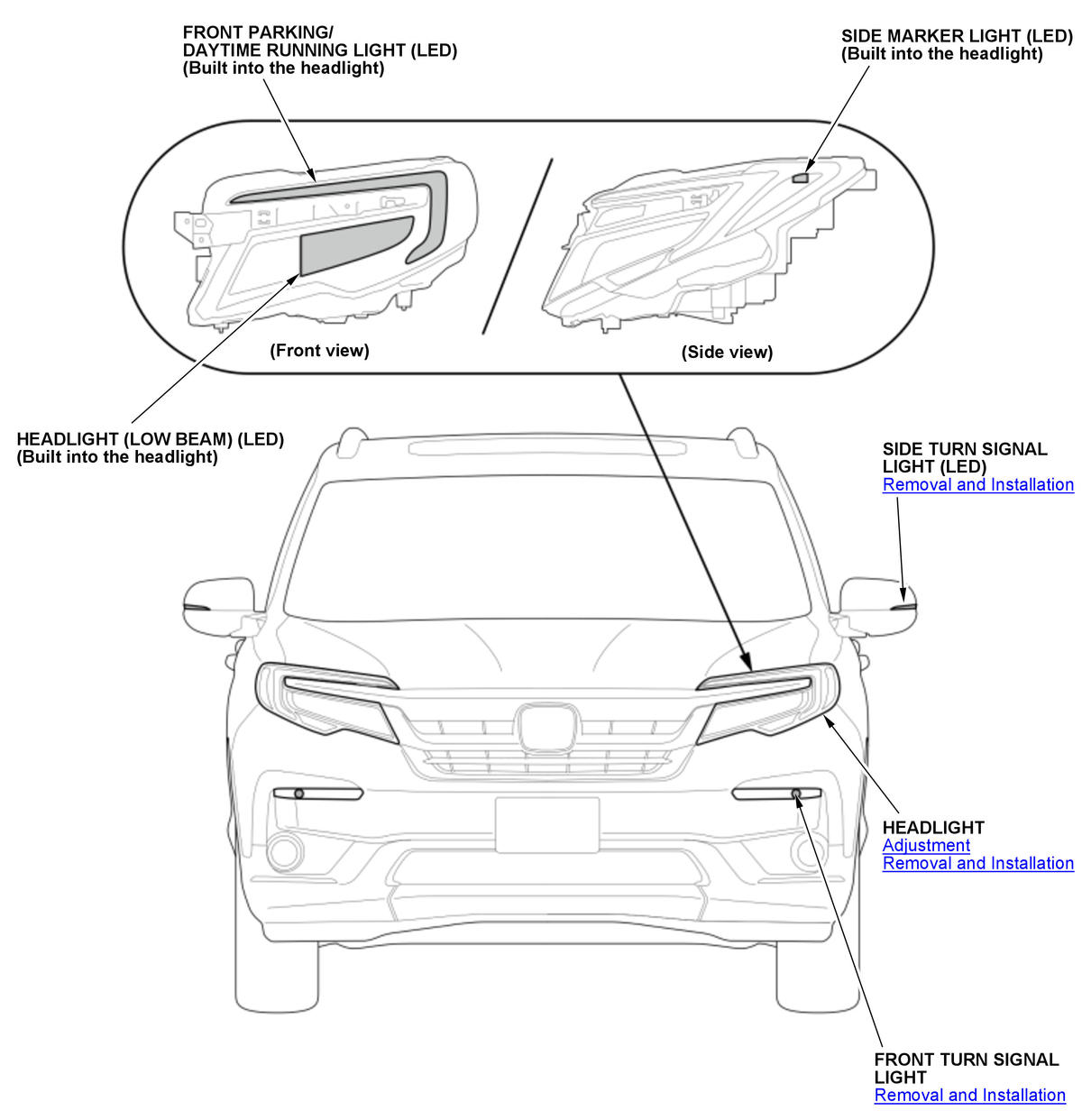

'19-21 With LED Headlight (High/Low Beam)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
