Cannot Select "On" Mode With Keyless Access, But Can Select "On" Mode With The Keyless Remote Touching The Engine Start/Stop Switch

  1. Keyless access system check 1

    -1. Push the LOCK and the UNLOCK buttons of the keyless remote, and check if the LED on the keyless remote comes on.

    Does the LED come on?

    YES

    Go to step 2.

    NO

    Replace the keyless remote battery and recheck the system. If the symptom does not go away, replace the keyless remote.

  2. Keyless access system check 2

    -1. Touch the engine start/stop switch with the keyless remote. The buttons on the keyless remote should be facing you.

    - 2. Turn the vehicle to the ON mode.

    - 3. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter SELF CHECK.

    One-Push - KEYLESS ACCESS CONTROL UNIT- SELF CHECK

    Does the system communicate with the HDS?

    YES

    Go to step 3.

    NO

    Do the keyless access/TPMS control unit input test - Refer to:

    Keyless Access System (Keyless Access Control Unit, Electric Steering Lock, and TPMS Control Unit) Input Test (2016 2017 2018) or

    Keyless Access System (Keyless Access Control Unit, Electric Steering Lock, and TPMS Control Unit) Input Test (2019 2020 2021) .

  3. PCU DTC check

    -1. Check for PCU DTCs with the HDS.

    DTC Description DTC


    Are any DTCs indicated?

    YES

    Troubleshoot the PCU DTCs.

    NO

    Go to step 4.

  4. Keyless access DTC check

    -1. Check for keyless access/TPMS control unit DTCs with the HDS.

    DTC Description DTC


    Are any DTCs indicated?

    YES

    Troubleshoot the keyless access/TPMS control unit DTCs.

    NO

    Go to step 5.

  5. Backup DTC check

    -1. Check for backup control unit DTCs with the HDS.

    DTC Description DTC


    Are any DTCs indicated?

    YES

    Troubleshoot the backup control unit DTCs.

    NO

    Go to step 6.

  6. Keyless access system check 3

    -1. Select HISTORY DATA from the KEYLESS ACCESS CONTROL UNIT mode menu with the HDS.

    One-Push - KEYLESS ACCESS CONTROL UNIT- HISTORY DATA

    Select HISTORY CLEAR, and back to TEST MODE MENU.

    - 3. Turn the vehicle to the OFF (LOCK) mode.

    - 4. Touch the engine start/stop switch with the keyless remote. The buttons on the keyless remote should be facing you.

    - 5. Turn the vehicle to the ON mode.

    - 6. Select HISTORY DATA from the KEYLESS ACCESS CONTROL UNIT mode menu with the HDS.

    One-Push - KEYLESS ACCESS CONTROL UNIT- HISTORY DATA

    History Data

    ENGINE START/STOP SWITCH 1 (+) ON
    ENGINE START/STOP SWITCH 2 (-) ON

    Is all the information ON?

    YES

    Go to step 8.

    NO

    Go to step 7.

  7. Open wire check (SS1+, SS2- lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connectors.

    Engine start/stop switch 12P connector
    Keyless access/TPMS control unit connector B (36P)

    - 3. Check for continuity between test points 1 and 2 respectively.

    Test condition Vehicle OFF (LOCK) mode
    Engine start/stop switch 12P connector: disconnected
    Keyless access/TPMS control unit connector B (36P): disconnected
    Test point 1 Keyless access/TPMS control unit connector B (36P) No. 10 - Refer to:
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018) or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021) .

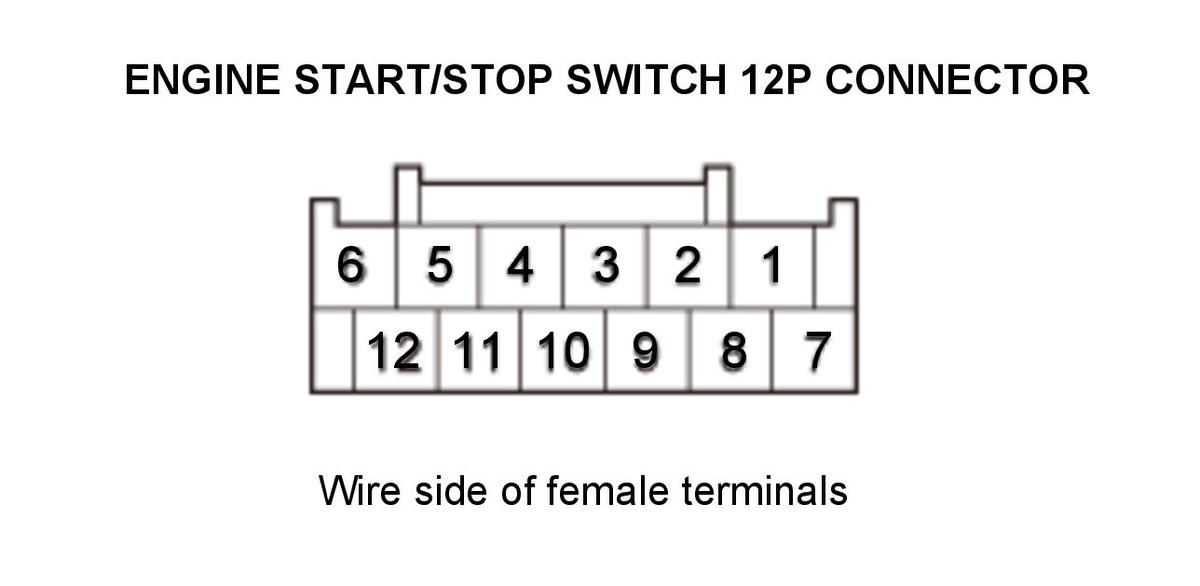

    Test point 2 Engine start/stop switch 12P connector No. 7
    Test point 1 Keyless access/TPMS control unit connector B (36P) No. 11 - Refer to:
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2016 2017 2018) or
    Keyless Access/TPMS Control Unit Connector for Inputs and Outputs (2019 2020 2021) .
    Test point 2 Engine start/stop switch 12P connector No. 6
    GHH312337Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SS1+ and SS2- wires are OK. Replace the Keyless Access/TPMS Control Unit - Removal and Installation .

    NO

    Repair an open or high resistance in the wire.

  8. Keyless access system check 4

    -1. Select KEYLESS TRANSMITTER from the BODY ELECTRICAL SYSTEM SELECT menu, then select INSPECTION, then KEYLESS CHECK.

    Inspection - Keyless Check

    Do the KEYLESS CHECK with the HDS using the all keyless remotes.

    Is DIFFERENT KEYLESS ENTRY TRANSMITTER CODE IS RECEIVED indicated?

    YES

    Go to step 10.

    NO

    Go to step 9.

  9. Keyless remote check (substitution)

    -1. Substitute a known-good keyless remote, then recheck the system.

    Does the system change to ON mode?

    YES

    Keyless Access Remote Registration , and recheck. If the symptom does not go away, replace the keyless remote.

    NO

    Replace the Keyless Access/TPMS Control Unit - Removal and Installation .

  10. Keyless remote check (substitution)

    -1. Substitute a known-good keyless remote, then recheck the system.

    Does the system change to ON mode?

    YES

    Keyless Access Remote Registration , and recheck. If the symptom does not go away, replace the keyless remote.

    NO

    Replace the Keyless Access/TPMS Control Unit - Removal and Installation .
