Keyless Entry Function

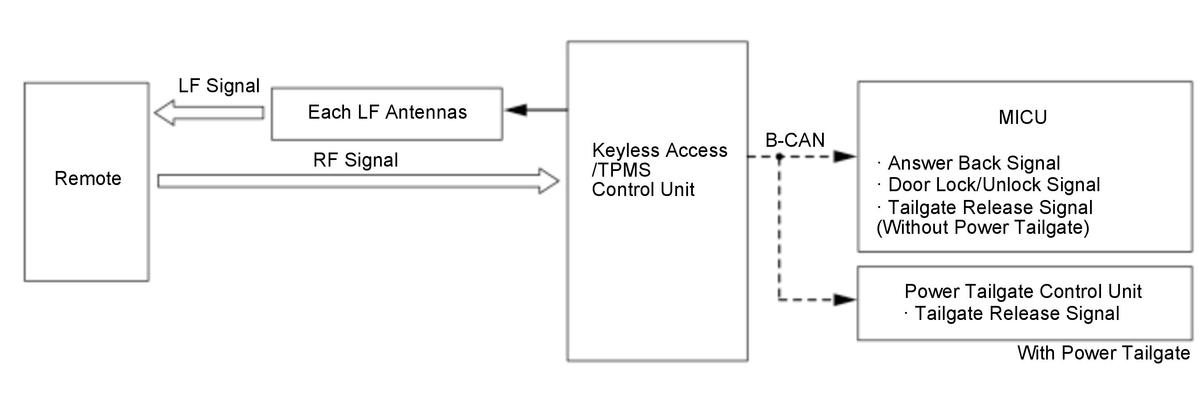

The keyless access/TPMS control unit receives keyless transmitter signal from the remote, and authenticates the RF signal. Then the keyless access/TPMS control unit sends a door lock/unlock signal and tailgate release signal via the B-CAN.

GHH312246Courtesy of HONDA, U.S.A., INC.
