Security Alarm System

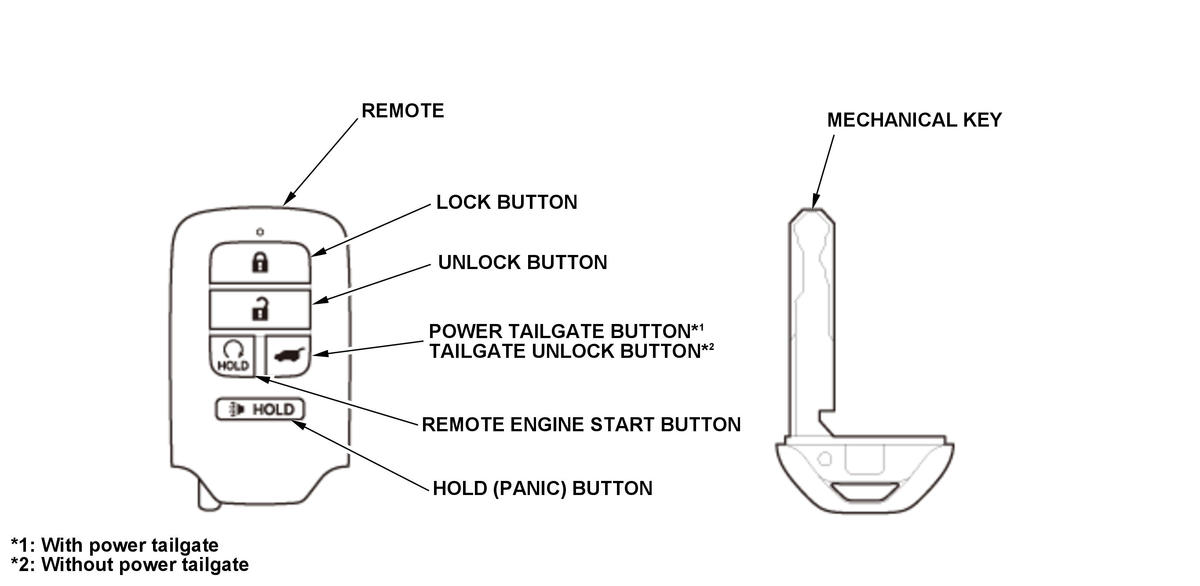

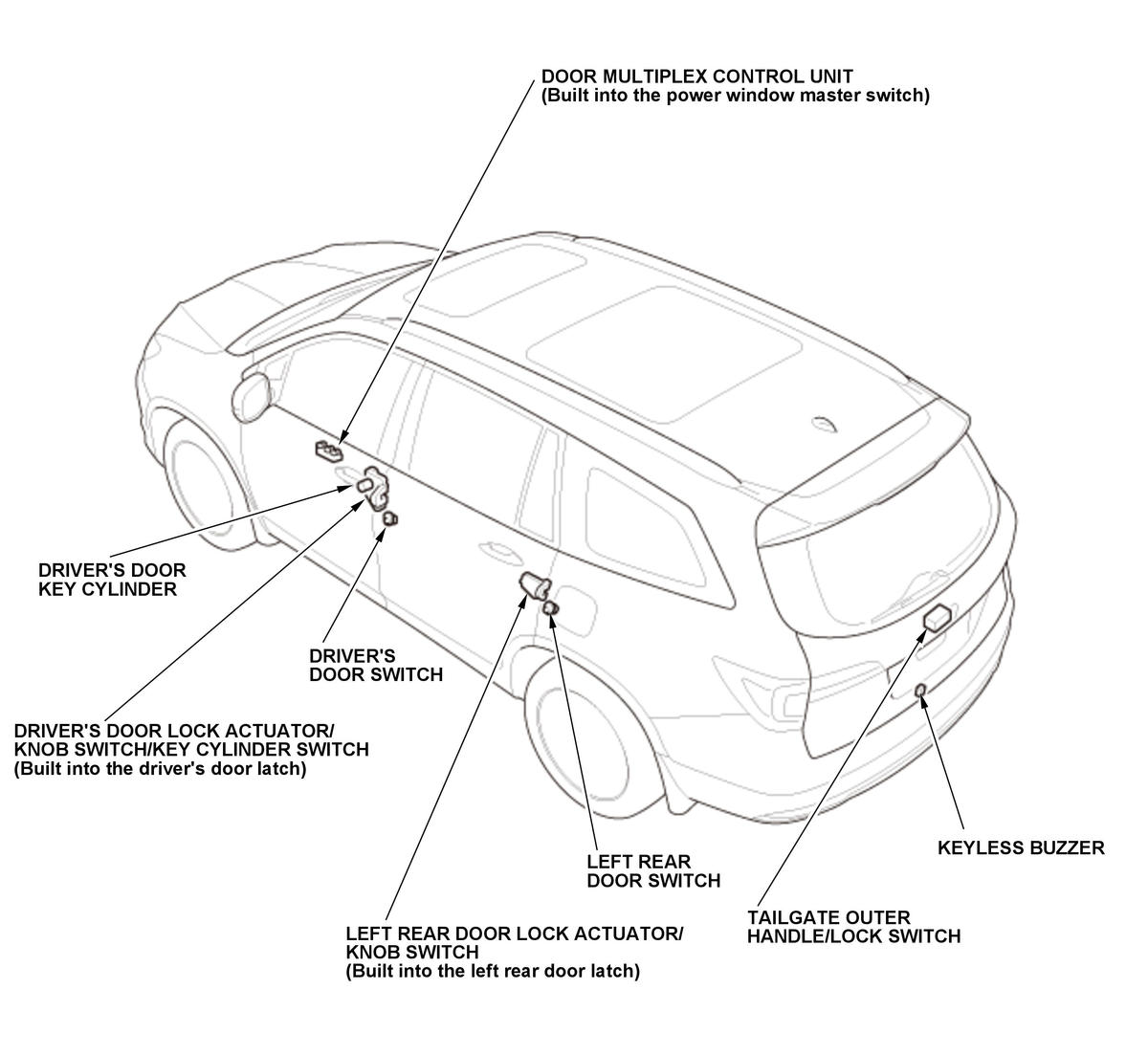

The security alarm system automatically arms after the doors, the hood, and the tailgate are closed and locked. For the system to arm, the vehicle mode must be OFF (LOCK) mode and the MICU must receive inputs that the doors, the hood, and the tailgate are closed and locked. The alarm can be disarmed at any time by unlocking the driver's door with the mechanical key or pressing the UNLOCK button on the remote or smart function.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

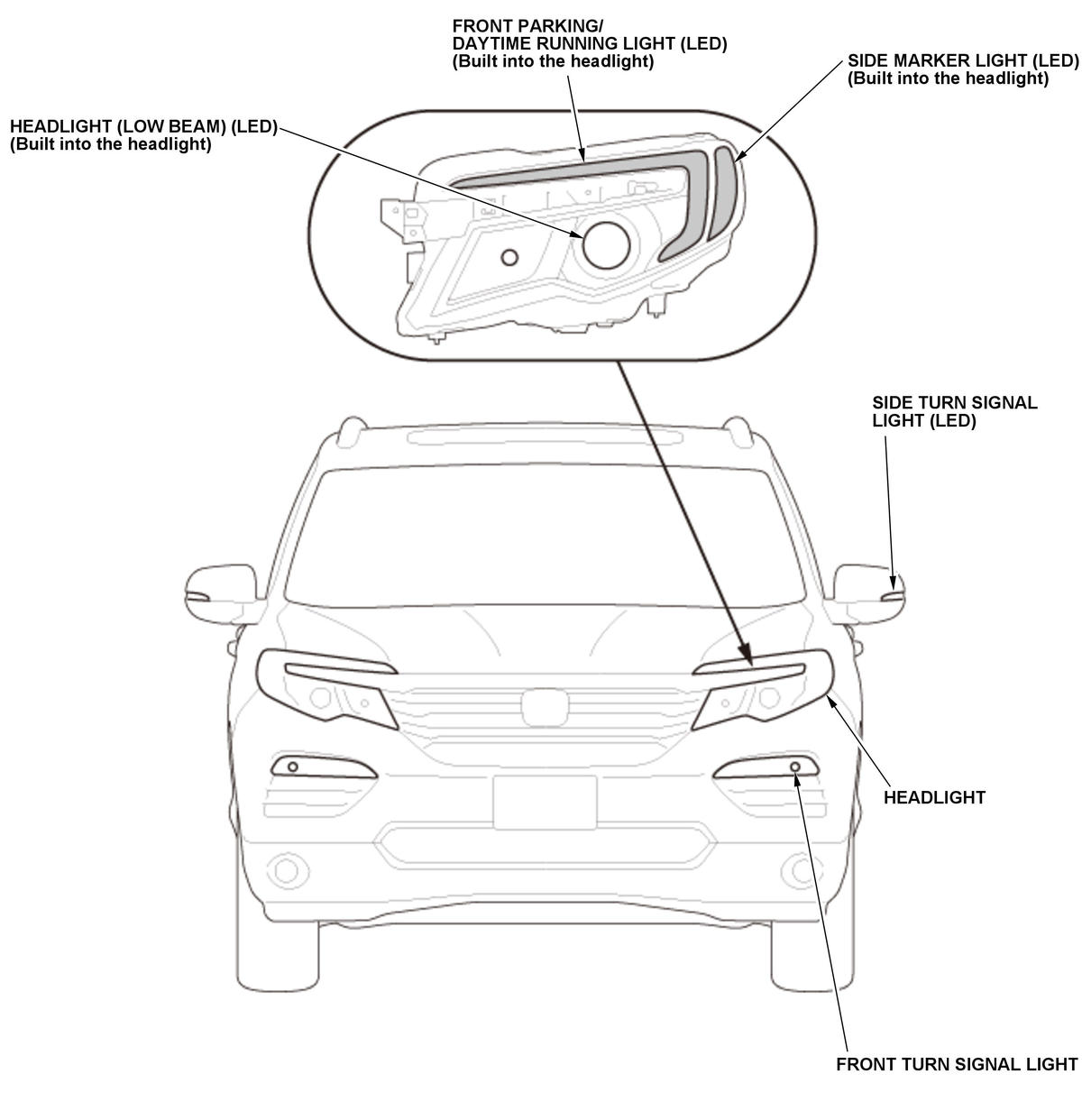

'16-18 With LED Headlight (Low Beam)

Courtesy of HONDA, U.S.A., INC.

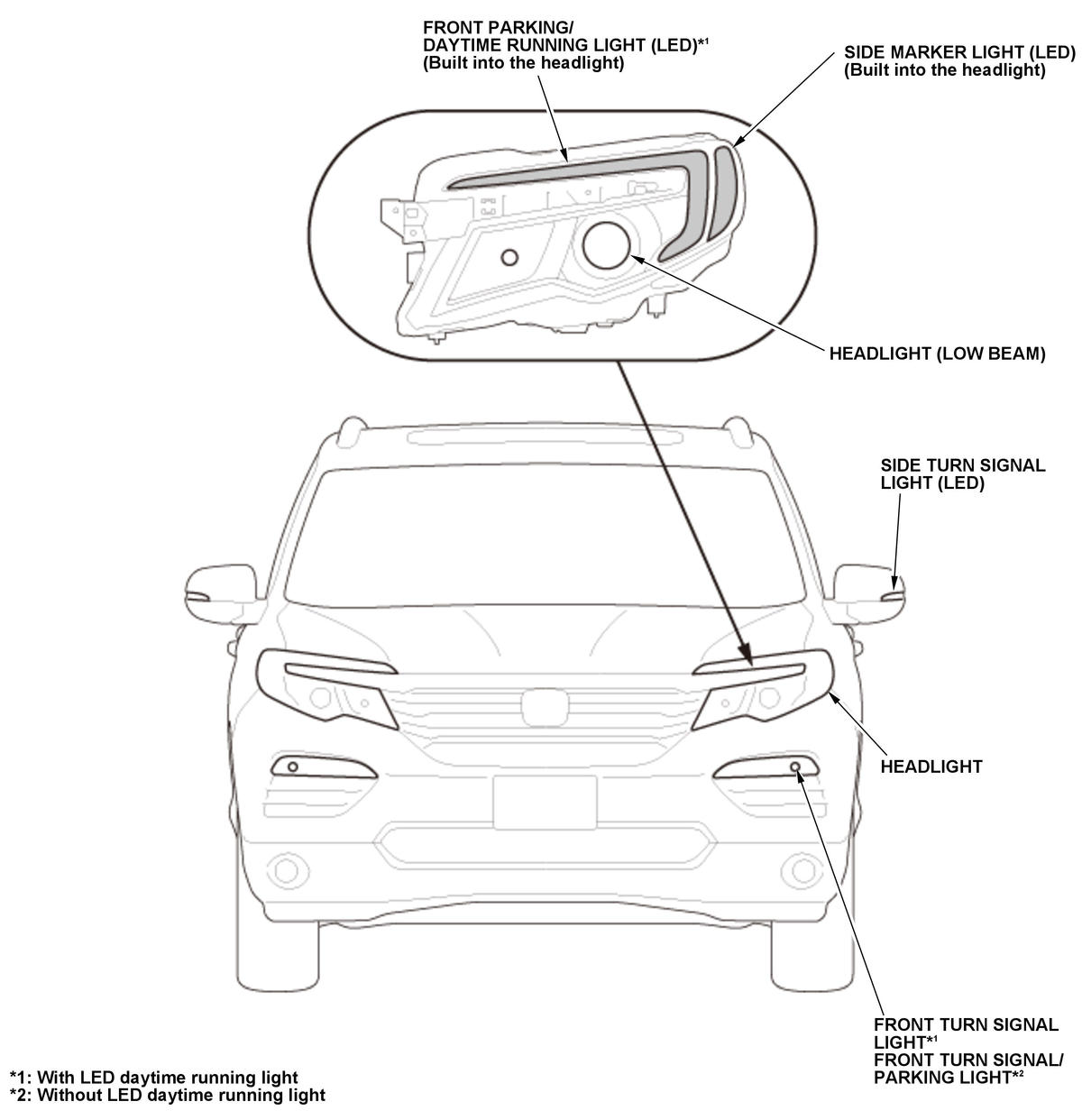

'16-18 Without LED Headlight (Low Beam)

Courtesy of HONDA, U.S.A., INC.

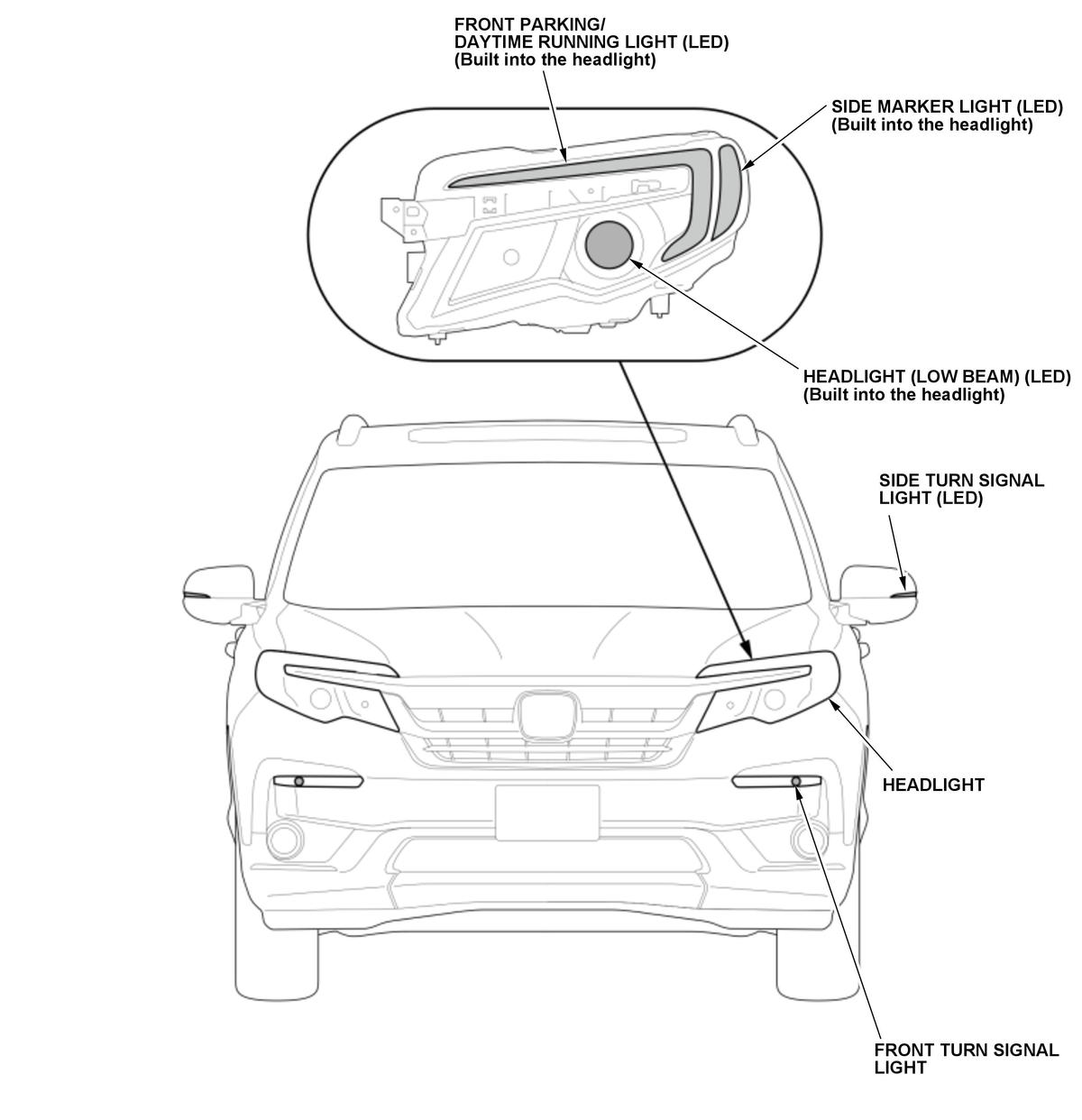

'19-21 With LED Headlight (Low Beam)

Courtesy of HONDA, U.S.A., INC.

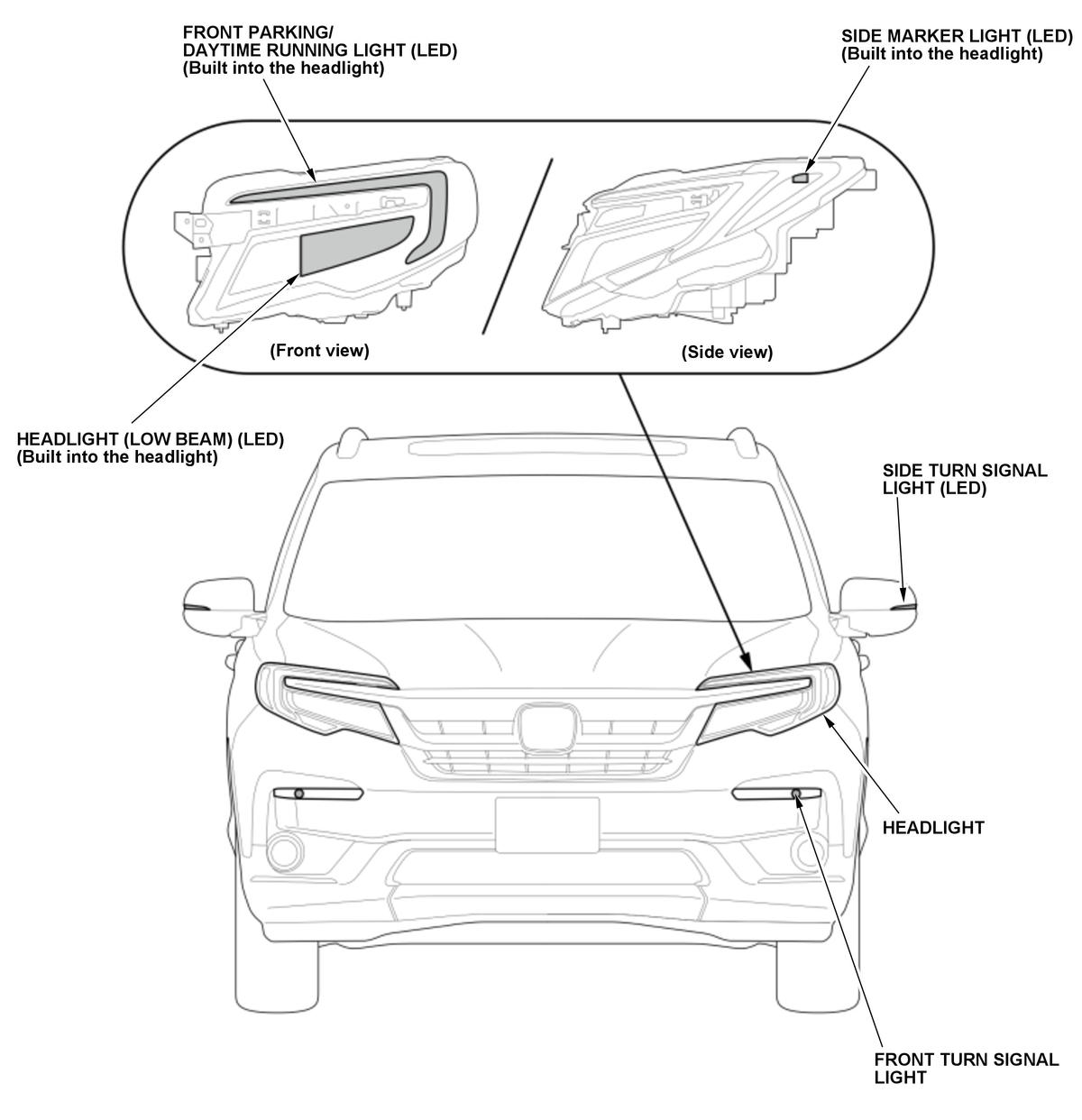

'19-21 With LED Headlight (High/Low Beam)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
