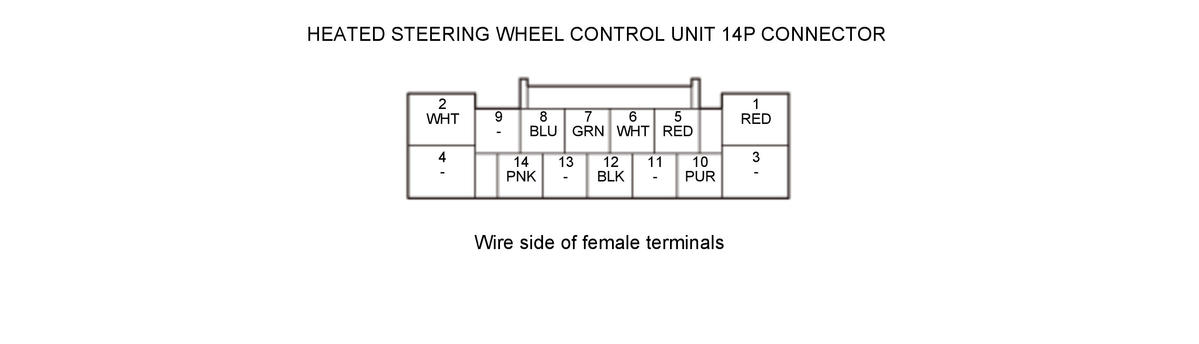

| 1 |
HEATER |
Outputs HEATER signal |
With heated steering operation: pulse (depending on steering temperature) Without heated steering operation: less than 0.2 V |
| 2 |
HSW VCC |
Power source for heated steering wheel control unit |
With vehicle in ON mode: about battery voltage |
| 3 |
Not used |
- - - |
- - - |
| 4 |
Not used |
- - - |
- - - |
| 5 |
HSW SWITCH |
Detects HSW SWITCH signal |
With vehicle in ON mode and heated steering wheel switch ON: about battery voltage. If none of above conditions are met: less than 0.2 V |
| 6 |
NTC+ |
NTC+ signal |
- - - |
| 7 |
NTC- |
NTC- signal |
- - - |
| 8 |
LIN (METER) |
Communication line |
- - - |
| 9 |
Not used |
- - - |
- - - |
| 10 |
HSW INDICATOR |
Outputs HSW INDICATOR signal |
- - - |
| 11 |
Not used |
- - - |
- - - |
| 12 |
SGND |
Ground for heated steering wheel control unit |
Less than 0.2 V at all times |
| 13 |
Not used |
- - - |
- - - |
| 14 |
HSW SW +B |
Power output terminal for heated steering wheel switch |
With vehicle in ON mode: about battery voltage |
