EPS Control Unit Connector for Inputs and Outputs (2016 2017 2018)
EPS Control Unit Connector for inputs and Outputs
| Connector Index |
| EPS Control Unit Connector A (5P) |
| EPS Control Unit Connector B (8P) |
| EPS Control Unit Connector C (6P) |
| EPS Control Unit Connector D (6P) |

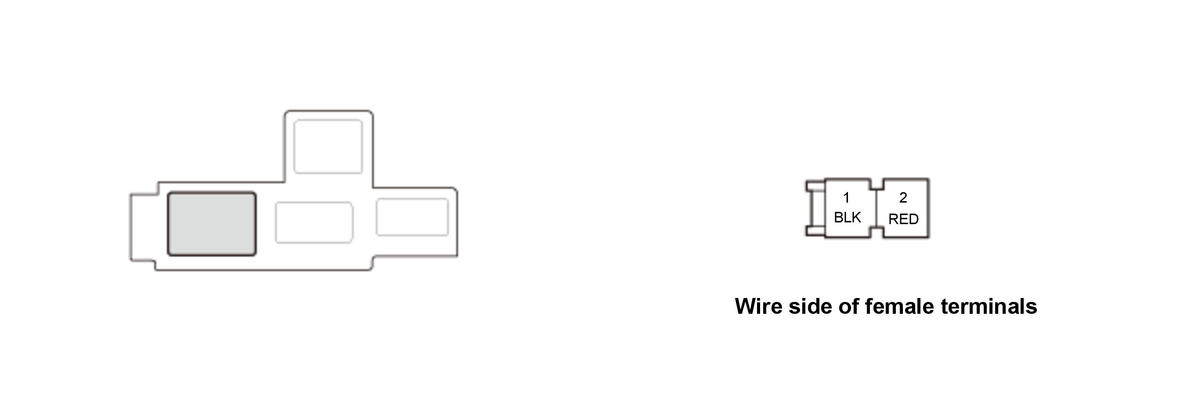

EPS Control Unit Inputs and Outputs for Connector A (2P)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
EPS GND |
Ground for the EPS control unit |
| 2 |
+B EPS |
Power source for the actuator EPS motor |

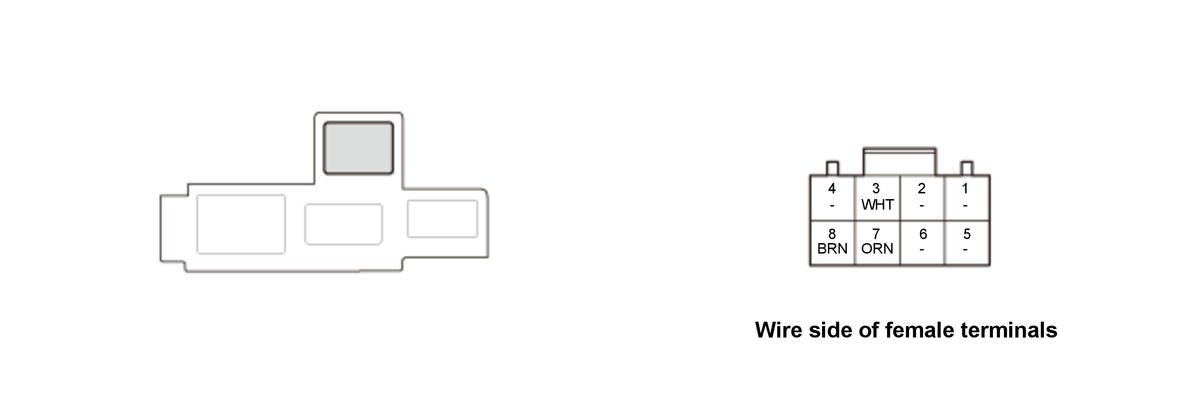

EPS Control Unit Inputs and Outputs for Connector B (8P)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
Not used |
- - - |
| 2 |
Not used |
- - - |
| 3 |
F-CAN_H* 1F-CAN A_H* 2 |
F-CAN communication circuit |
| 4 |
Not used |
- - - |
| 5 |
Not used |
- - - |
| 6 |
Not used |
- - - |
| Terminal number |
Terminal sign |
Description |
| 7 |
IG1 VSA* 3IG1 VSA (DC/DC)* 4 |
Power source for activating the system |
| 8 |
F-CAN_L* 1F-CAN A_L* 2 |
F-CAN communication circuit |
*1: 6-Speed A/T*2: 9-Speed A/T*3: Without Auto idle stop system*4: With Auto idle stop system

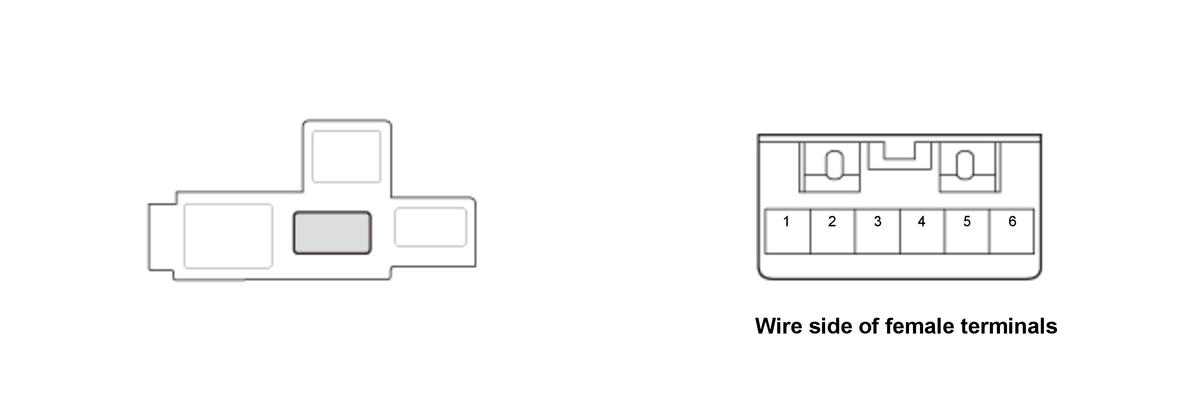

EPS Control Unit Inputs and Outputs for Connector C (6P)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
R1 |
Detects EPS motor angle sensor signal |
| 2 |
R2 |
Detects EPS motor angle sensor signal |
| 3 |
S2 |
Detects EPS motor angle sensor signal |
| 4 |
S4 |
Detects EPS motor angle sensor signal |
| 5 |
S1 |
Detects EPS motor angle sensor signal |
| 6 |
S3 |
Detects EPS motor angle sensor signal |

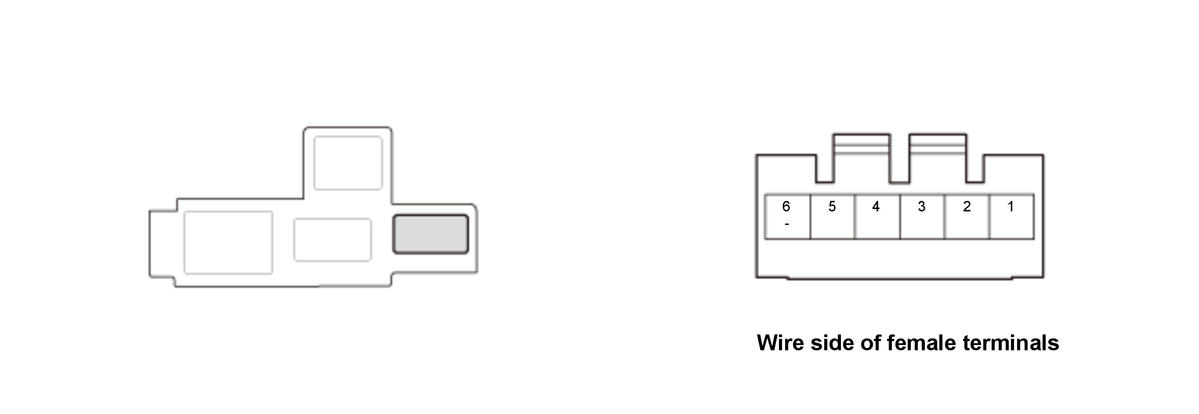

EPS Control Unit Inputs and Outputs for Connector D (6P)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
VTP |
Detect the torque sensor signal |
| Terminal number |
Terminal sign |
Description |
| 2 |
VTM |
Detects torque sensor signal |
| 3 |
SE |
Ground for the torque sensor |
| 4 |
VTS |
Detects torque sensor signal |
| 5 |
VTOREF |
Reference voltage for torque sensor |
| 6 |
Not used |
- - - |
