A/T Interlock System Component Location Index (6-Speed A/T)

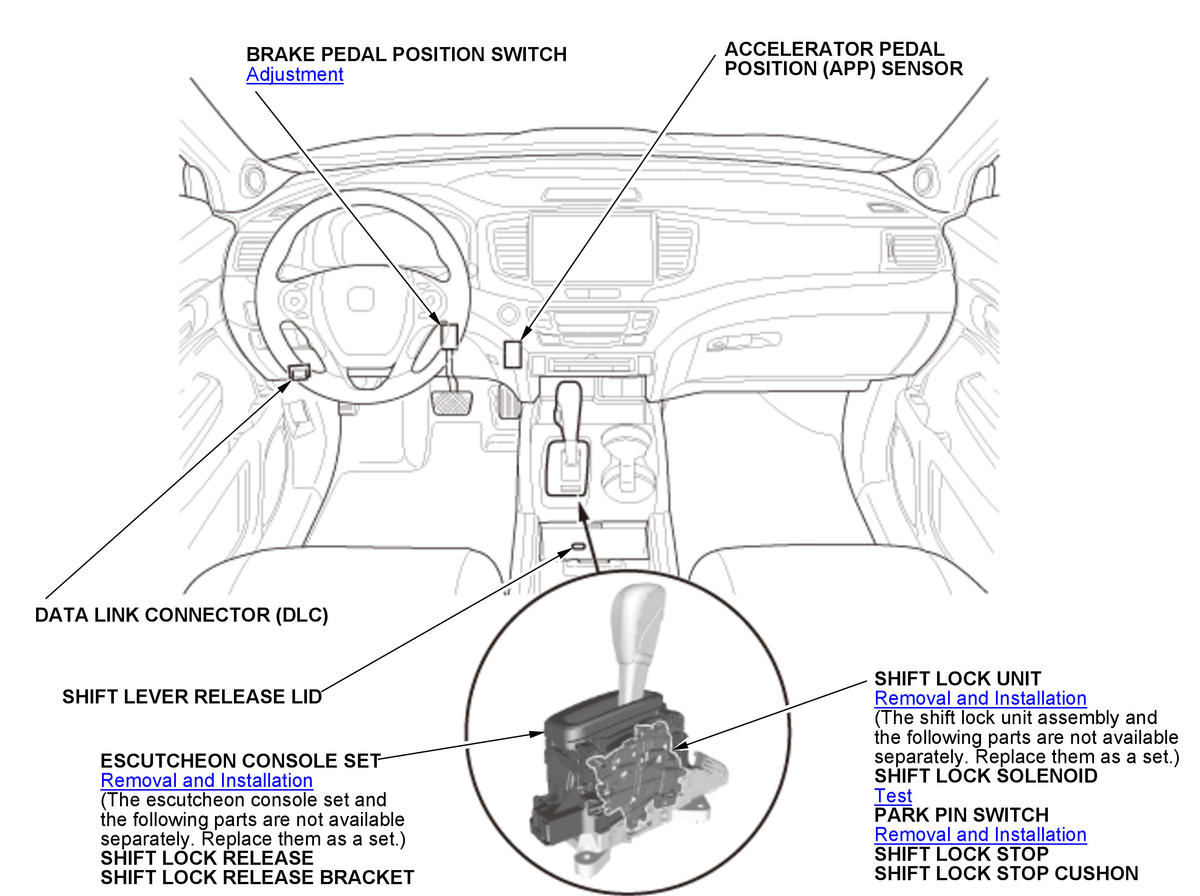

GHH304683Courtesy of HONDA, U.S.A., INC.

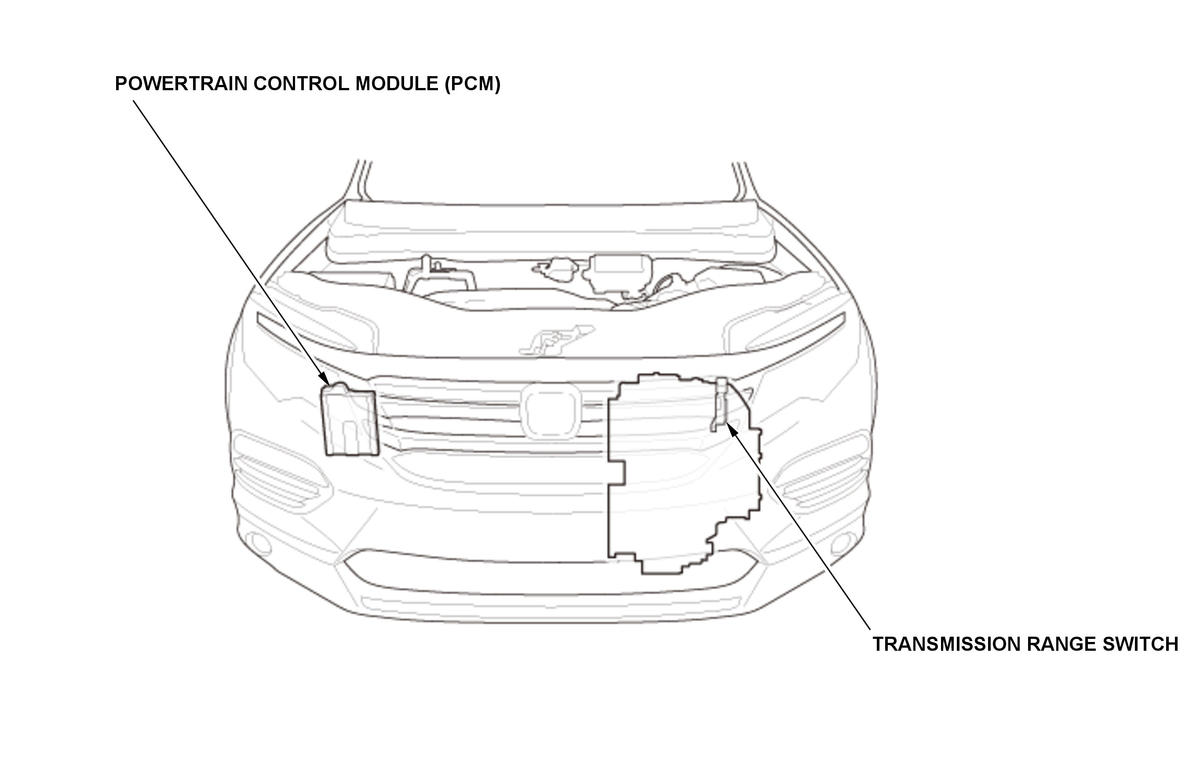

GHH304684Courtesy of HONDA, U.S.A., INC.
