A/T Control System Connector For Inputs And Outputs (2019: 9-Speed A/T)
A/T Control System Connector for Inputs and Outputs
| Connector Index |
| TCM 58P Connector |
| SBW Shifter Control Module 20P Connector |
 Courtesy of HONDA, U.S.A., INC.
|

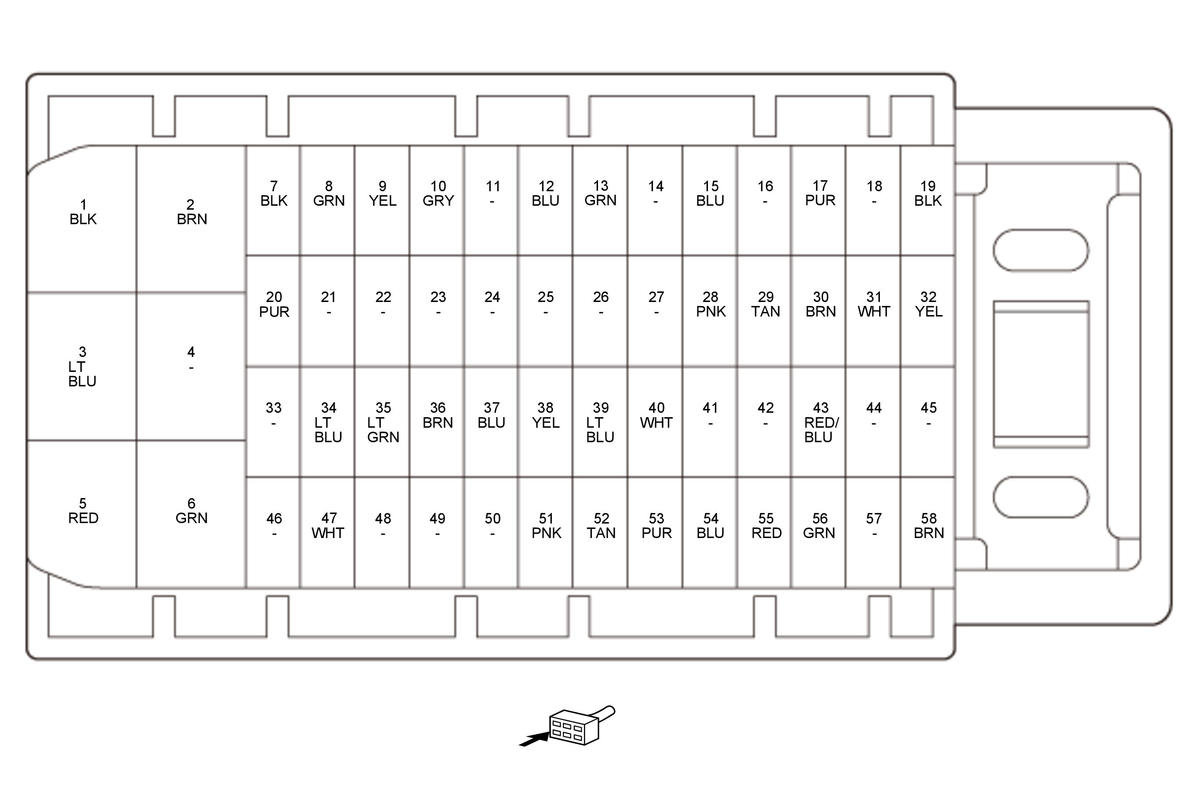

TCM 58P Connector (female terminals)
| Terminal Number |
Terminal Name |
Description |
| 1 |
GND1 (GROUND) |
Ground for TCM |
| 2 |
GND2 (GROUND) |
Ground for TCM |
| 3 |
VBSOL (POWER SOURCE) |
Power source for parking lock actuator, solenoid valves, and pressure regulators |
| 5 |
+B (POWER SOURCE) |
Power source for TCM |
| 6 |
VBSOL2 (POWER SOURCE) |
Power source for pressure regulators |
| 7 |
F-CAN B_H (F-CAN COMMUNICATION B SIGNAL HIGH) |
Sends and receives communication signal |
| 8 |
SG1 (SENSOR GROUND) |
Sensor ground |
| 9 |
ESL PWR (ESL PWR SIGNAL) |
Outputs ESL PWR signal |
| 10 |
VCC1 (SENSOR VOLTAGE) |
Provides sensor reference voltage |
| 12 |
TATFP (ATF TEMPERATURE SENSOR) |
Detects ATF temperature sensor signal |
| 13 |
PARKSEN1 (PARK POSITION SENSOR) |
Detects park position sensor signal |
| 15 |
PARKSEN2 (PARK POSITION SENSOR) |
Detects park position sensor signal |
| 17 |
VCC2 (SENSOR VOLTAGE) |
Provides sensor reference voltage |
| 19 |
PCL (TRANSMISSION FLUID PRESSURE SENSOR) |
Detects transmission fluid pressure sensor signal |
| 20 |
F-CAN B_L (F-CAN COMMUNICATION B SIGNAL LOW) |
Sends and receives communication signal |
| 28 |
SDNP (PADDLE SHIFTER - (DOWNSHIFT SWITCH)) |
Detects paddle shifter - (downshift switch) signal |
| 29 |
SUPP (PADDLE SHIFTER + (UPSHIFT SWITCH)) |
Detects paddle shifter + (upshift switch) signal |
| 30 |
TATFM (SENSOR GROUND) |
Ground for ATF temperature sensor |
| Terminal Number |
Terminal Name |
Description |
| 31 |
NM (DUAL SPEED SENSOR) |
Detects dual speed sensor (input speed sensor) signal |
| 32 |
PARKOUT (TRANSMISSION P POSITION) |
Sends transmission P position signal |
| 34 |
F-CAN A_H (F-CAN COMMUNICATION A SIGNAL HIGH) |
Sends and receives communication signal |
| 35 |
SHC (SOLENOID VALVE) |
Drives solenoid valve |
| 36 |
SHB (SOLENOID VALVE) |
Drives solenoid valve |
| 37 |
RVSOUT (TRANSMISSION R POSITION) |
Sends transmission R position signal |
| 38 |
SHA (SOLENOID VALVE) |
Drives solenoid valve |
| 39 |
LSE (PRESSURE REGULATOR) |
Drives pressure regulator |
| 40 |
LSC (PRESSURE REGULATOR) |
Drives pressure regulator |
| 43 |
NOUT (DUAL SPEED SENSOR) |
Detects dual speed sensor (output speed sensor) signal |
| 47 |
F-CAN A_L (F-CAN COMMUNICATION A SIGNAL LOW) |
Sends and receives communication signal |
| 51 |
SHD (PRESSURE REGULATOR) |
Drives pressure regulator |
| 52 |
PLA (PARKING LOCK ACTUATOR) |
Drives parking lock actuator |
| 53 |
LSD (PRESSURE REGULATOR) |
Drives pressure regulator |
| 54 |
LSA (PRESSURE REGULATOR) |
Drives pressure regulator |
| 55 |
LSB (PRESSURE REGULATOR) |
Drives pressure regulator |
| 56 |
IGN TRX (COMMUNICATION LINE) |
Communication line |
| 58 |
IG1 (IGNITION SIGNAL) |
Detects ignition signal |
 Courtesy of HONDA, U.S.A., INC.
|

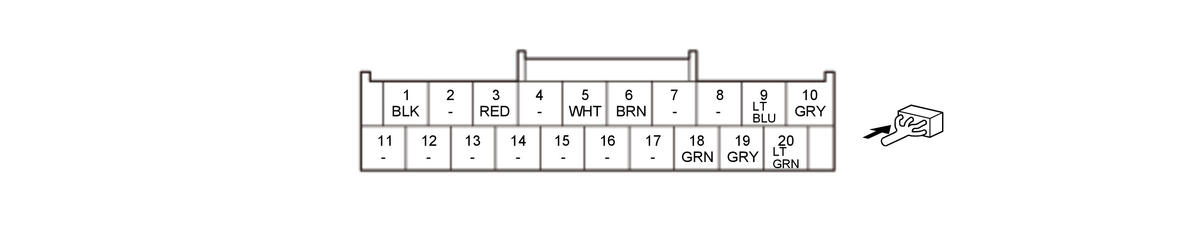

SBW Shifter Control Module 20P Connector (female terminals)
| Terminal Number |
Terminal Name |
Description |
| 1 |
GND (GROUND) |
Ground for SBW shifter control module |
| 3 |
ILLUMI-(LED) (ILLUMINATION CONTROL SIGNAL) |
Detects illumination control signal |
| 5 |
F-CAN A_H (F-CAN COMMUNICATION A SIGNAL HIGH) |
Sends and receives communication signal |
| 6 |
F-CAN A_L (F-CAN COMMUNICATION A SIGNAL LOW) |
Sends and receives communication signal |
| 9 |
F-CAN B_H (F-CAN COMMUNICATION B SIGNAL HIGH) |
Sends and receives communication signal |
| 10 |
F-CAN B_L (F-CAN COMMUNICATION B SIGNAL LOW) |
Sends and receives communication signal |
| 18 |
IG1 METER (POWER SOURCE FOR SBW SHIFTER CONTROL MODULE) |
Power source for SBW shifter control module |
| 19 |
ILLUMI+ (POWER SOURCE FOR SBW SHIFTER ILLUMINATION) |
Power source for SBW shifter illumination |
| 20 |
+B TCU (POWER SOURCE FOR SBW SHIFTER CONTROL MODULE) |
Power source for SBW shifter control module |
