DTC P062F
DTC P062F: EEPROM FAIL
General Description

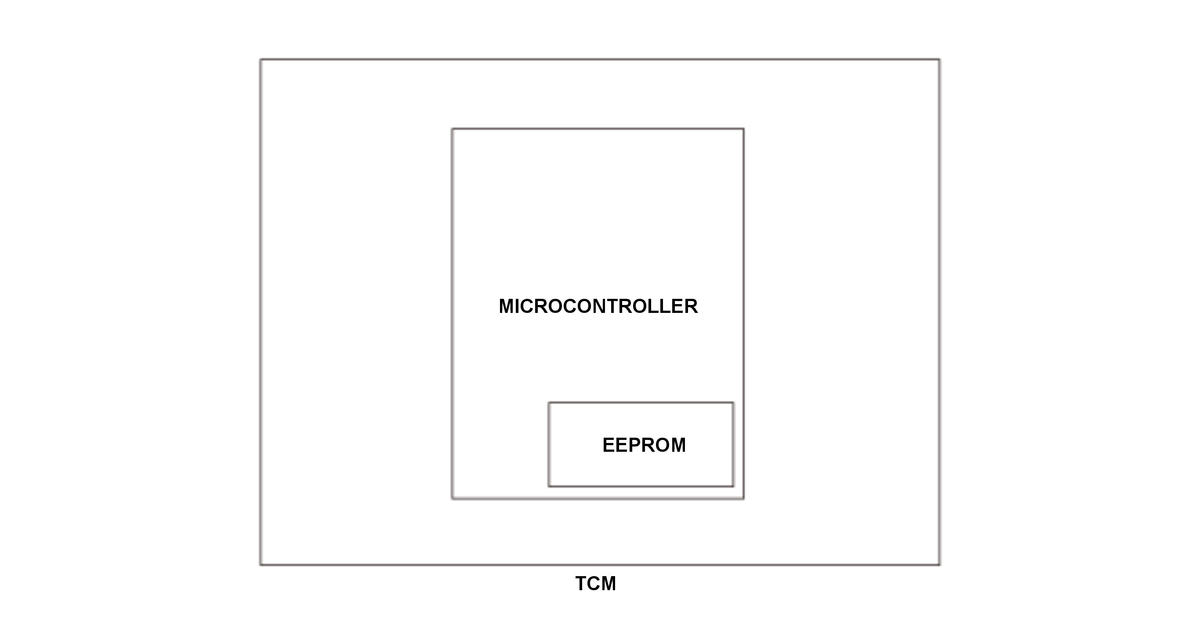

The transmission control module (TCM) is equipped with an EEPROM. If the data is lack of consistency when read/written to the EEPROM, or if the EEPROM checksum does not match, the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1 second or more |
| DTC Type | One drive cycle, MIL on, A/T gear position indicator blinks |
Enable Conditions
| Condition | ||
|---|---|---|
| Vehicle | ON mode | |
Malfunction Threshold
Either one of the conditions is met for at least 1 second.
- The data is lack of consistency when read/written to the EEPROM.
- The EEPROM checksum does not match.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- TCM internal failure
Confirmation Procedure
Operating Condition
- 1.
Start the engine, and wait 1 minute.
- 2.
Turn the vehicle to the OFF (LOCK) mode, and wait 1 minute.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the A/T gear position indicator blinks, the MIL comes on, and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the TCM memory.
Conditions for clearing the DTC
The A/T gear position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
