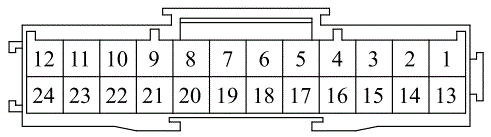

C227 Connector End View (Male)
| No. | Color | Name |
| 1 | RED | BB-CAN_H |
| 2 | GRN | BB-CAN_L |
| 3 | BLU | RR_R_COURTEST_LT- |
| 4 | PNK | R_SIDE_DOOR_LOCK |
| 5 | BRN | R_TURN |
| 6 | BLU | R_SIDE_DOOR_UNLOCK |
| 7 | TAN | BSI_R_IND |
| 8 | GRY | ACC |
| 11 | PUR | BRK_DIAG |
| 12 | GRN | SWD+B |
| 13 | RED | RR_DOOR_SPKR+ |
| 14 | BLK | RR_DOOR+SPKR- |
| 15 | GRY | SH_SUB_W |
| 16 | PUR | SUB_W_PRE- |
| 17 | LT_GRN | SUB_W_PRE+ |
| 18 | GRY | IG1_METER(VST) |
| 19 | RED | TUNER_6V |
| 20 | YEL | TUNER_9V |
| 21 | BLK | TUNER_GND |
| 22 | BLU | TUNER_RS485+ |
| 23 | PNK | TUNER_RS485- |
| 24 | GRY | TUNER_RS485_SH |
