DTC B1036 (Body Control Module): Inspection

IG1_METER(VST) Circuit Inspection

Test Procedure

• Preparation
  • Gauge control module connector A (32P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

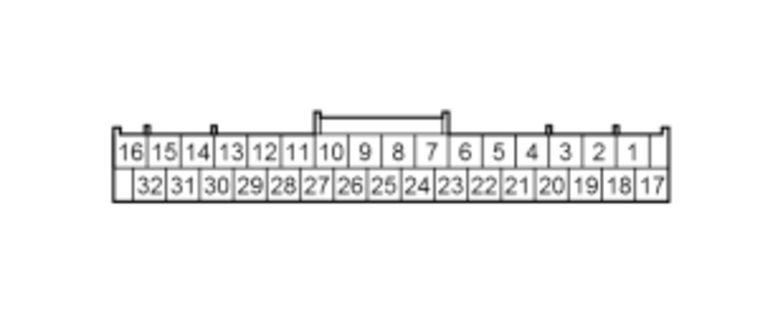

			(Disconnected) Gauge control module connector A (32P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	IG1_METER(VST) circuit inspection	ON		12 V battery voltage [circuit type 3]

Results

• If abnormal, there is a problem in the circuit.

  If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.
