DTC B1662 (Keyless Access Control Unit): Inspection

EXT_R+, EXT_R- Open Wire Inspection

Test Procedure

• Preparation
  • Middle Interior LF antenna connector (2P): disconnected
  • Body control module connector C (66P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

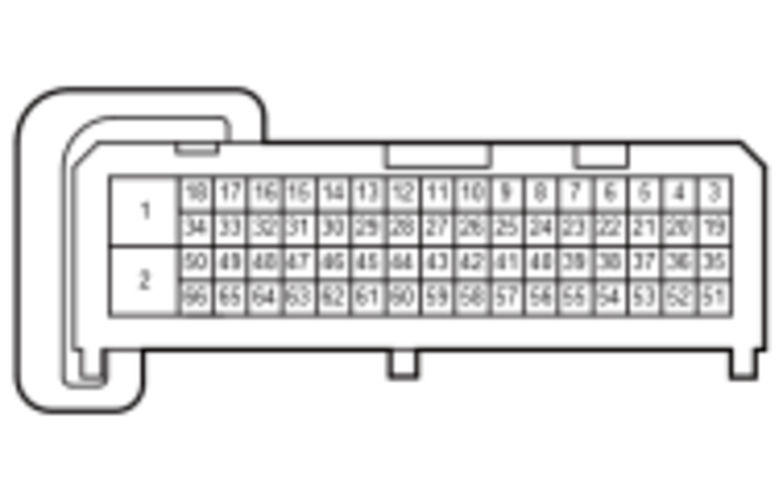

			(Disconnected) Middle interior LF antenna connector (2P) female terminals	(Disconnected) Body control module connector C (66P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	EXT_R+ open wire inspection	OFF			There is less than 1 Ohms
	EXT_R- open wire inspection	OFF			There is less than 1 Ohms

Results

• If abnormal, there is a problem in the circuit.

EXT_R+, EXT_R- Shorted Wire Inspection

Test Procedure

• Preparation
  • Middle interior LF antenna connector (2P): disconnected
  • Body control module connector C (66P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

			(Disconnected) Body control module connector C (66P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	EXT_R+, EXT_R- shorted wire to wire inspection	OFF		There is more than 1 MOhms

Results

• If abnormal, there is a problem in the circuit.

Body Control Module Inspection

Preconditions

NOTE:  This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

• External circuit is normal

Test Procedure

• Preparation
  • Body control module connector C (66P): connected
  • Middle interior LF antenna connector (2P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

			(Disconnected) Middle interior LF antenna connector (2P) female terminals

*1: If the matter whether the vehicle mode ON or OFF (LOCK) because of the permanent power supply.

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Module internal circuit inspection	ON*1		Voltage

*1: If the matter whether the vehicle mode ON or OFF (LOCK) because of the permanent power supply.

Results

• If it is abnormal, there is a problem with the body control module.

Middle Interior LF Antenna Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining middle interior LF antenna is the cause.

Results

• There is a problem with the middle interior LF antenna.
