Repair Procedure

How to use this manual .

NOTE:  In the illustration, only one side is shown because the component parts and the removal/installation procedure are the same.

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

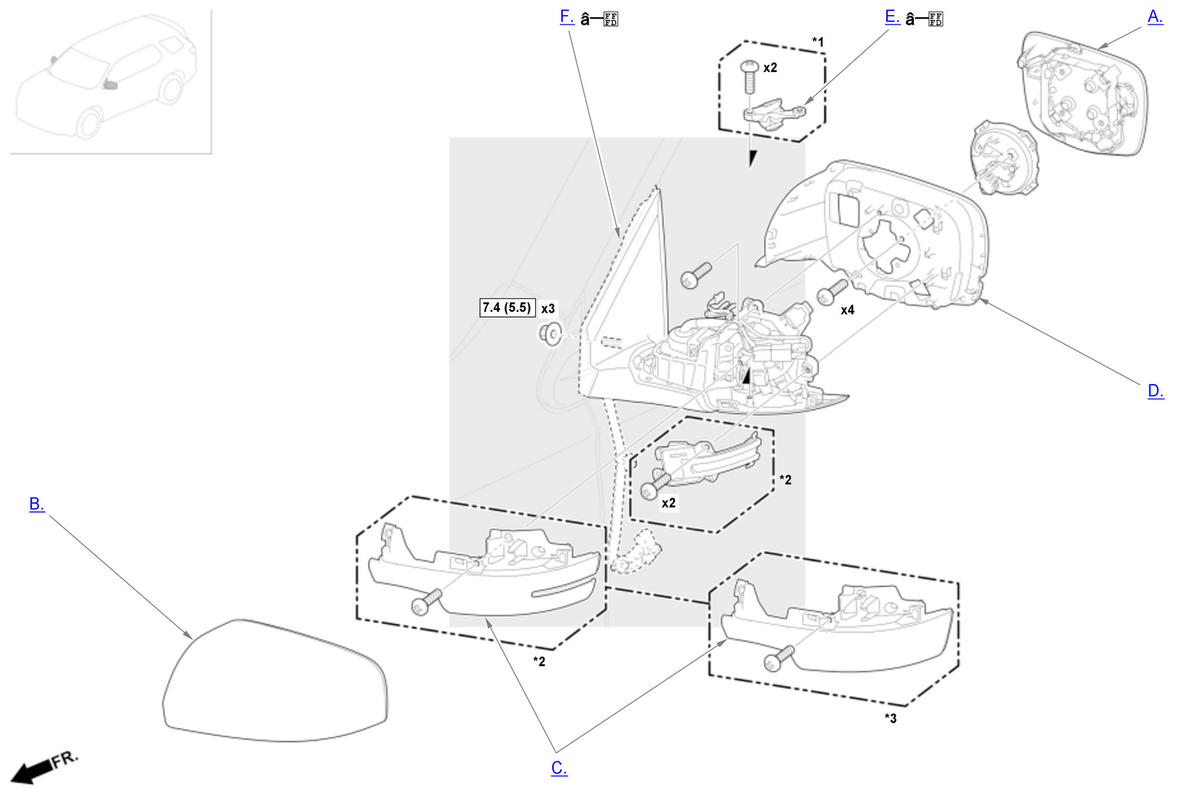

1. A.-

   Sub-Procedure

   Removal

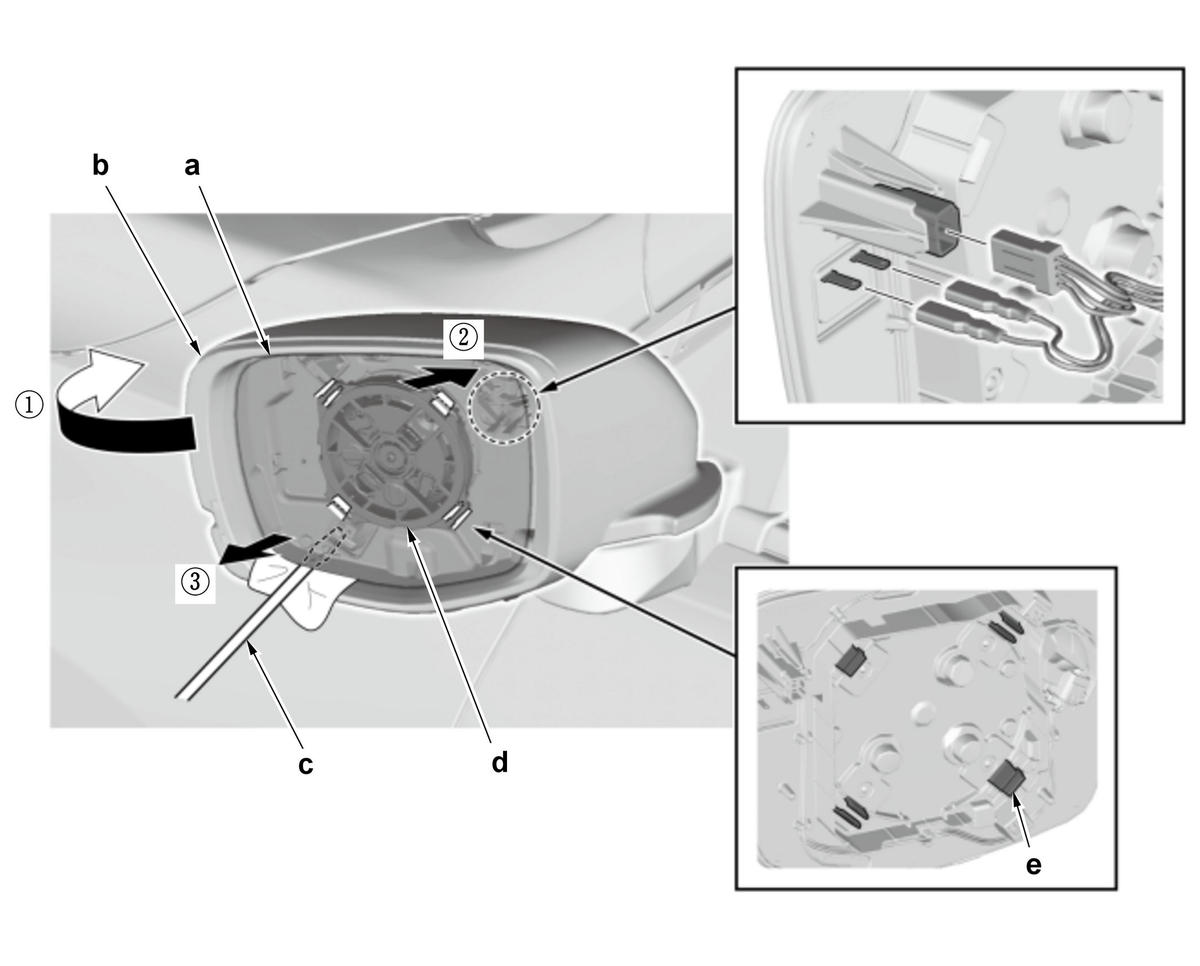

   1. Carefully push on the top-right corner of the mirror holder (a) to create an opening on the lower-left-hand corner between the mirror holder and the mirror housing (b).

   Courtesy of HONDA, U.S.A., INC.

   2. Insert a flat-tip screwdriver (c) as shown as twist the screwdriver to create an opening between the mirror holder and the actuator (d).

   3. Insert the screwdriver in the opening next to the retaining tabs (e) and twist it to remove the mirror holder.

   NOTE:

   Do not pry up on the mirror holder to separate the two parts, as this can cause either the mirror glass or actuator to break.

2. B.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Mirror Holder

   Sub-Procedure

   Removal

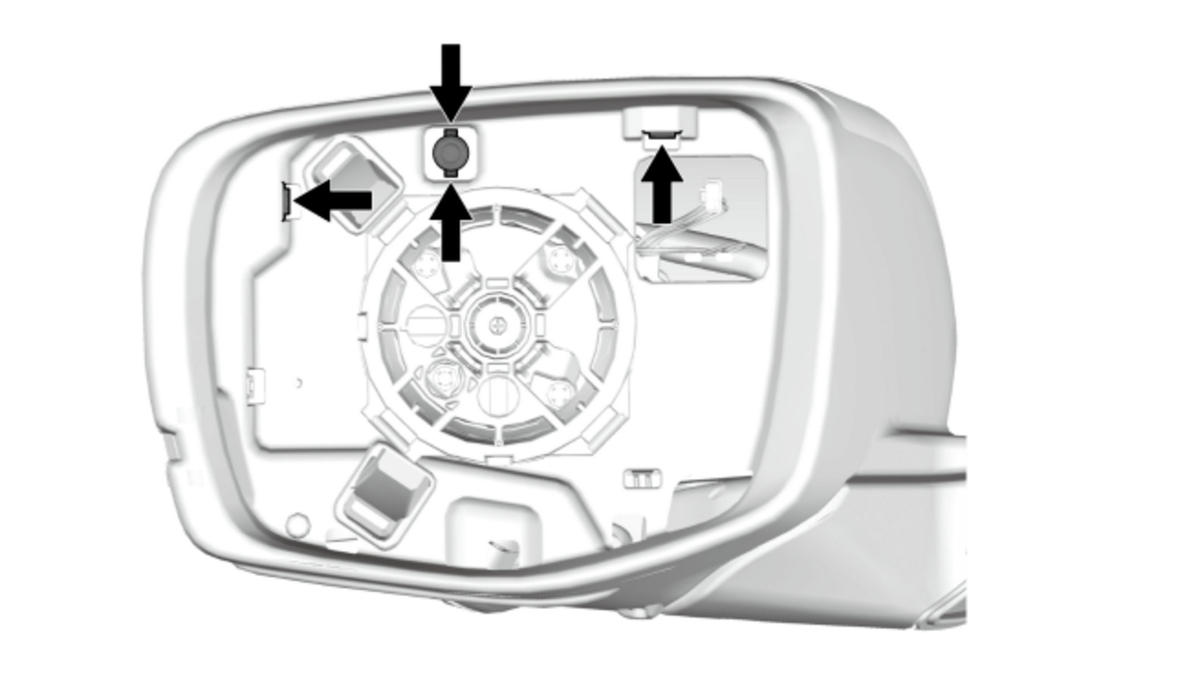

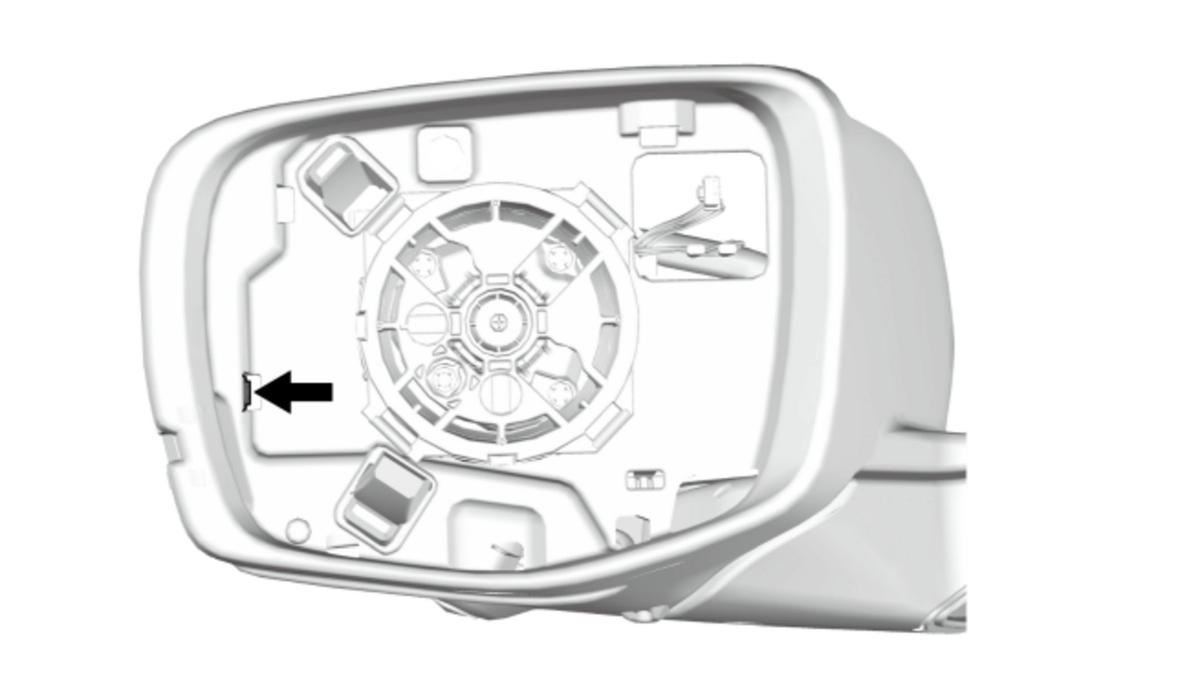

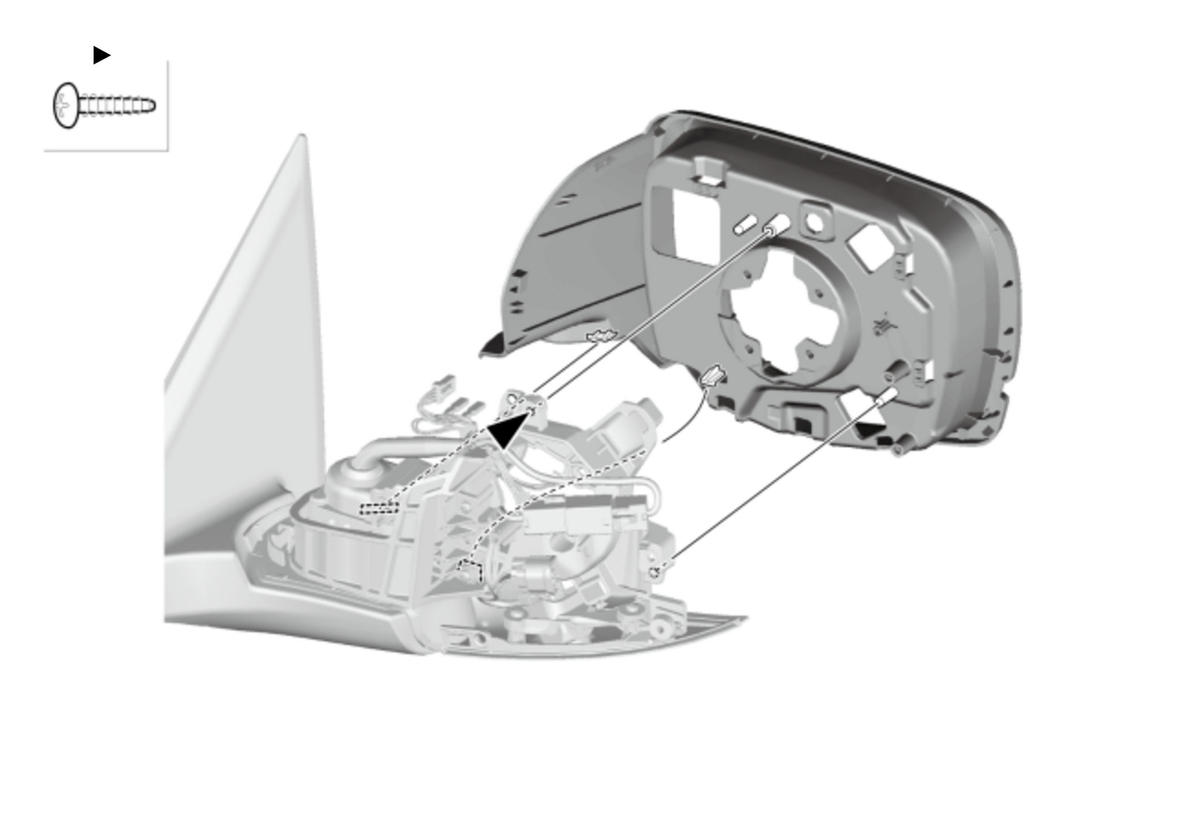

   • Refer to figure 1 and 2.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

3. C.-

   Sub-Procedure

   Removal

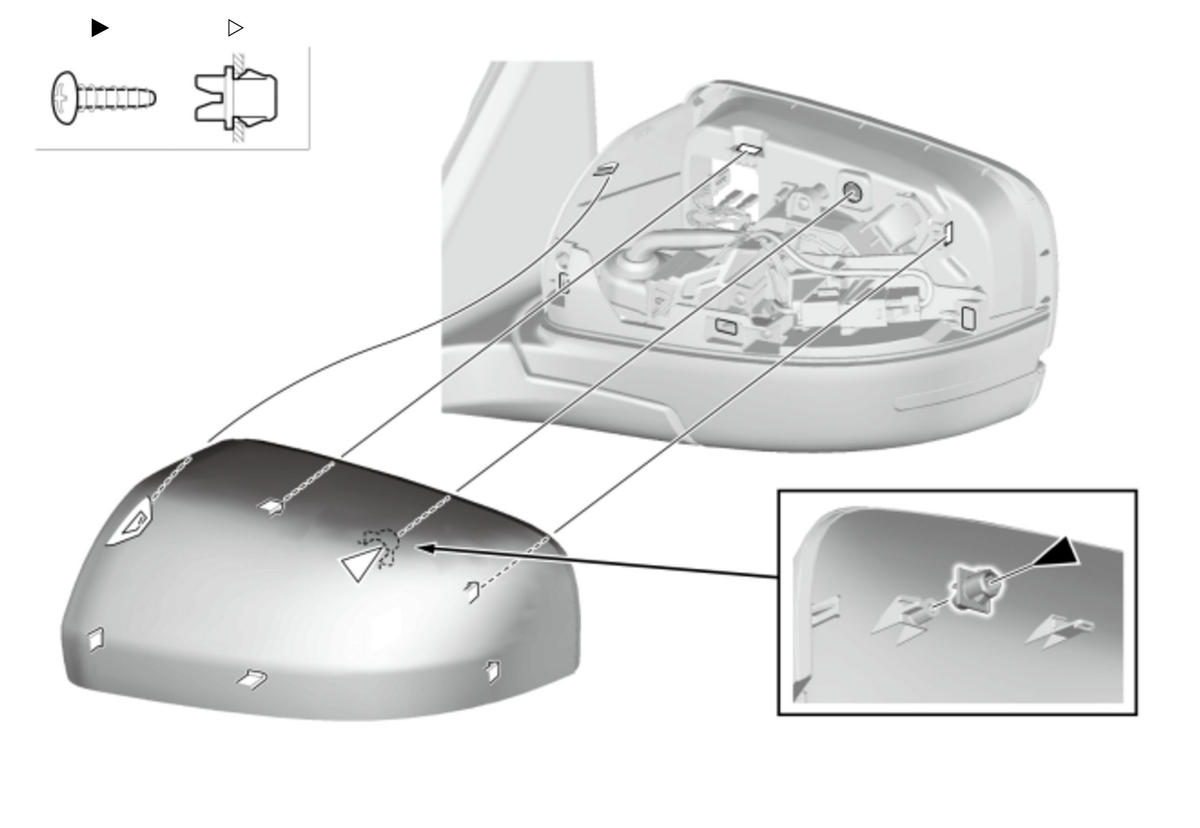

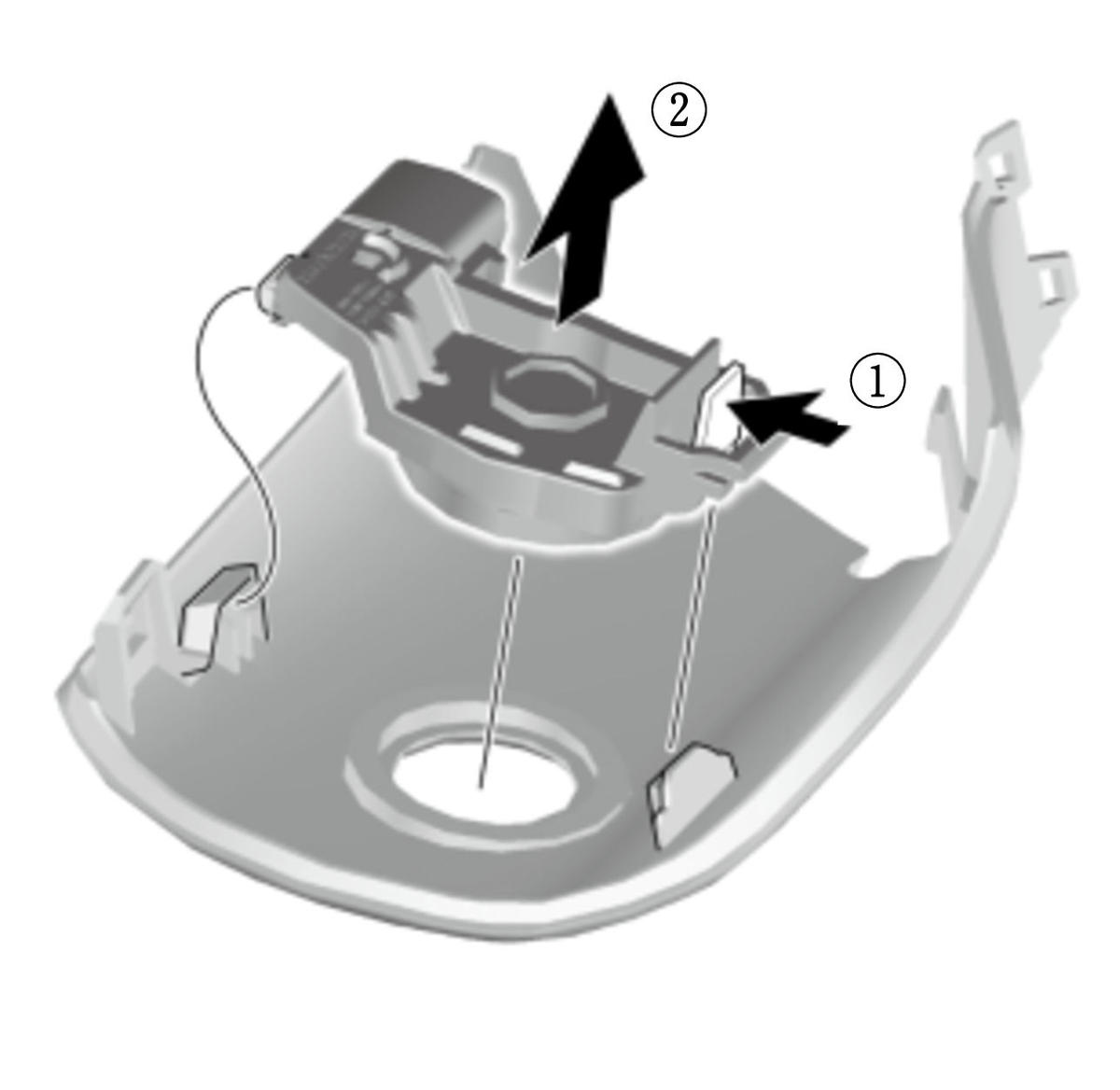

   • Refer to figure 1 and 2.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

4. D.-

   Sub-Procedure

   Removal

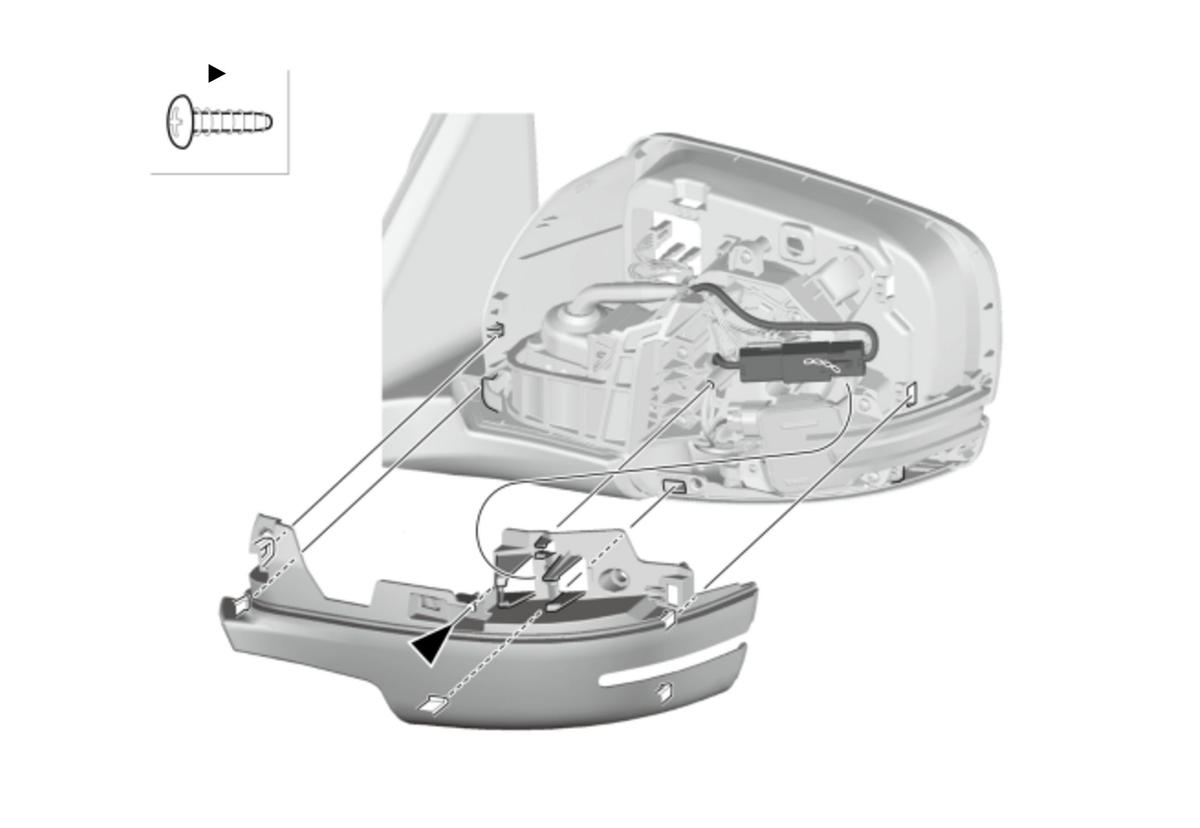

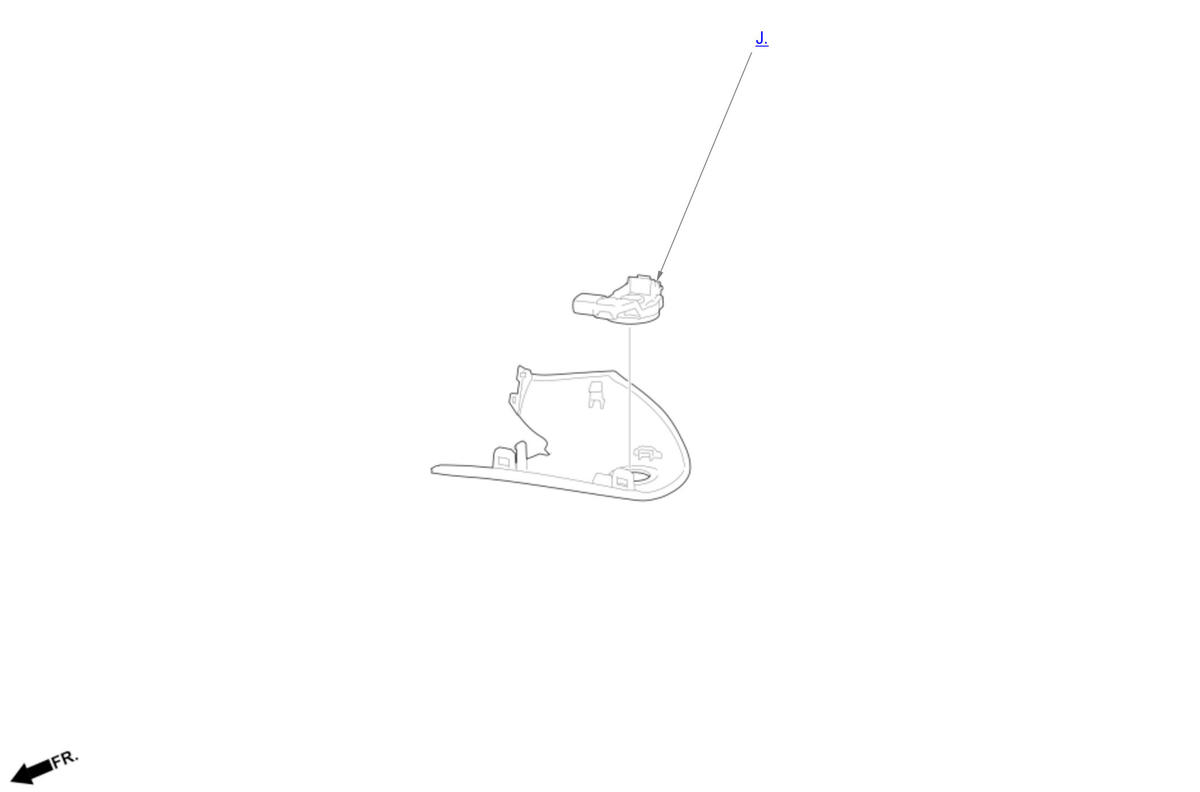

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

5. E.-

   After Installation

   • Multi View Side Camera Aiming - Refer to: Multi View Camera Aiming () or Multi View Camera Picture Inspection ()
6. F.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Door Panel

   After Installation

   • With Multi View Camera System: Multi View Side Camera Aiming - Refer to: Multi View Camera Aiming () or Multi View Camera Picture Inspection ()
7. G.-

   Courtesy of HONDA, U.S.A., INC.

8. H.-

   Sub-Procedure

   Removal

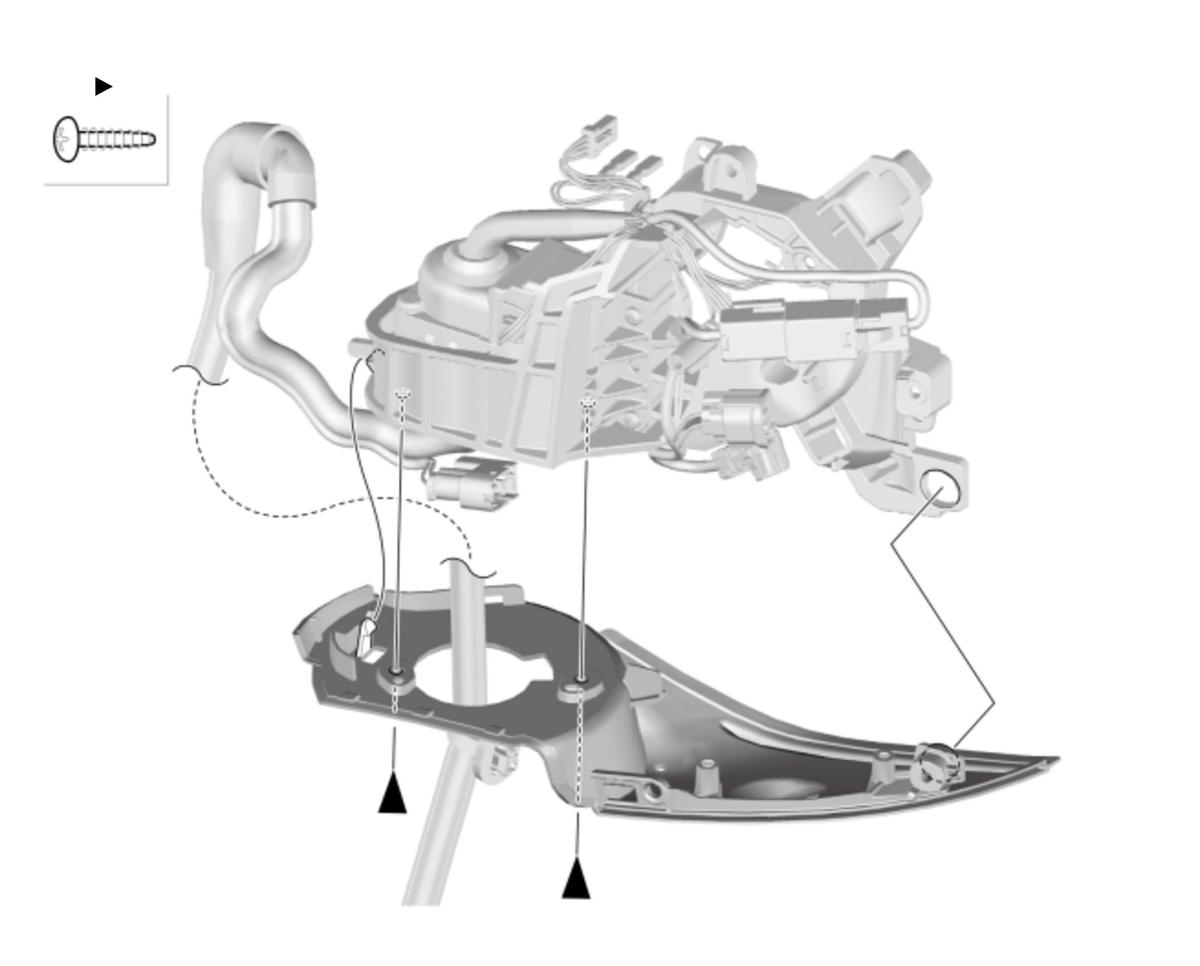

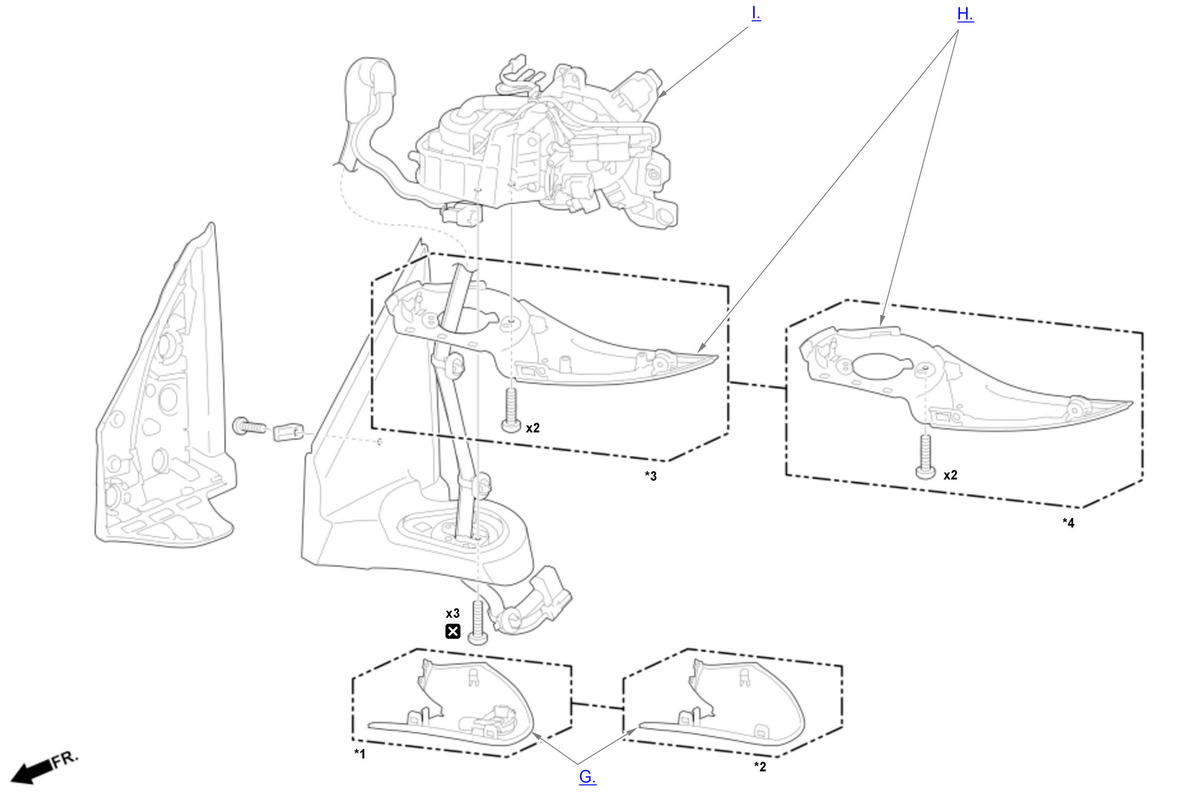

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

9. I.-

   NOTE:  The power mirror actuator/retract actuator needs to be replaced with the wire harness because the wire harness must be cut off to remove the power mirror actuator/retract actuator.

   Sub-Procedure

   Removal

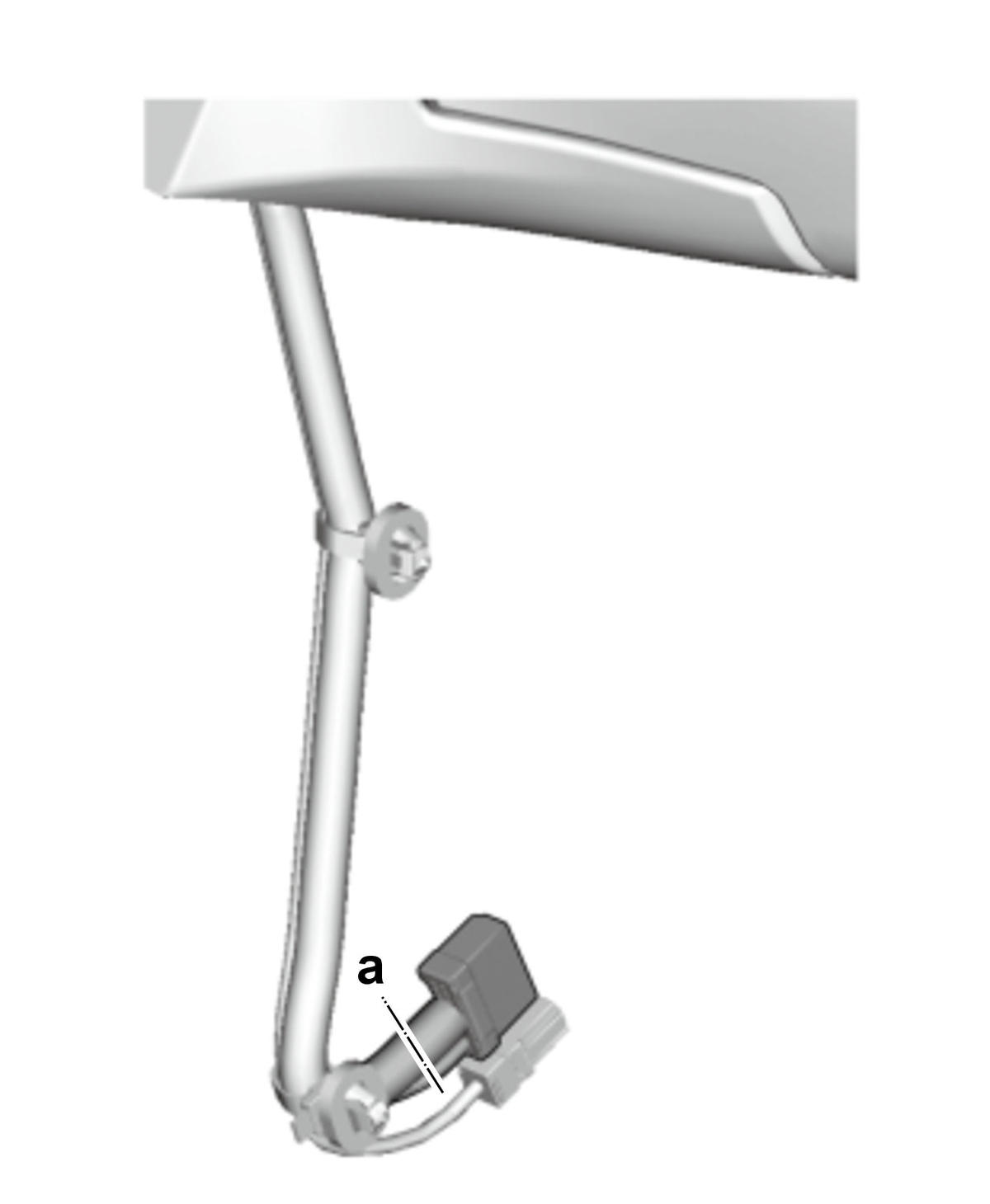

   1. Cut the wire harness at the line (a). (Figure 1)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Insert the mirror actuator wires into the terminal locations at the following as shown. (Figure 2 and 3)

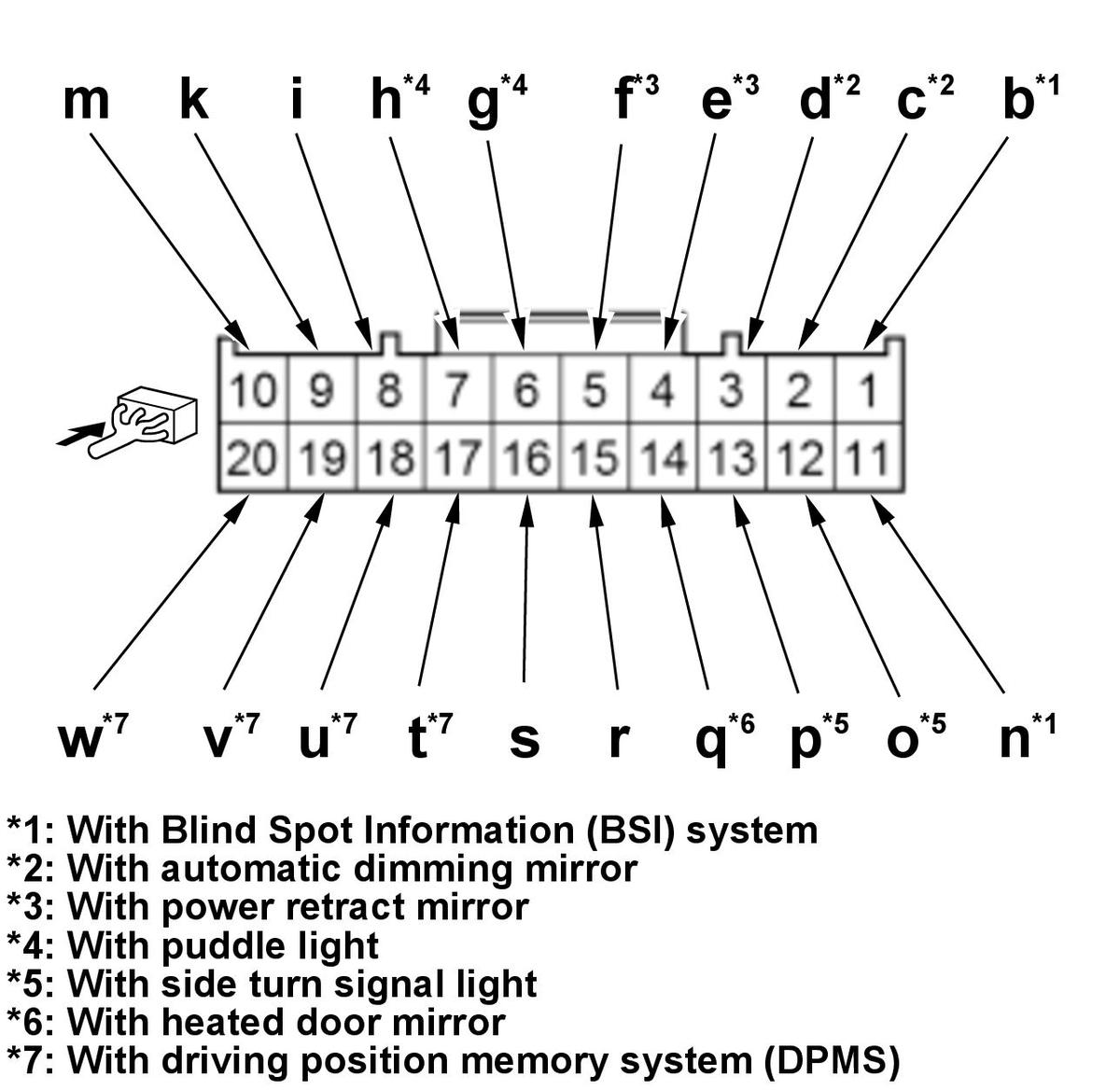

   Connector Terminal Positions (Figure 2)

   Position	Wire Color
   b*1	BLK/YEL
   c*2	BLK/GRN
   d*2	BLK/RED
   e*3	WHT
   f*3	LT GRN
   g*4	ORN
   h*4	WHT/RED
   i	YEL
   k	BRN
   m	BLU
   n*1	BLU/BLK
   o*5	PNK
   p*5	PUR
   q*6	BLK
   r	Not used
   s	Not used
   t*7	LT BLU
   u*7	GRY
   v*7	RED
   w*7	BLK/WHT

   *1: With blind spot information (BSI) system

   *2: With automatic dimming mirror

   *3: With power retract mirror

   *4: With puddle light

   *5: With side turn signal light

   *6: With heated door mirror

   *7: With driving position memory system (DPMS)

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   • Refer to the figure 3.

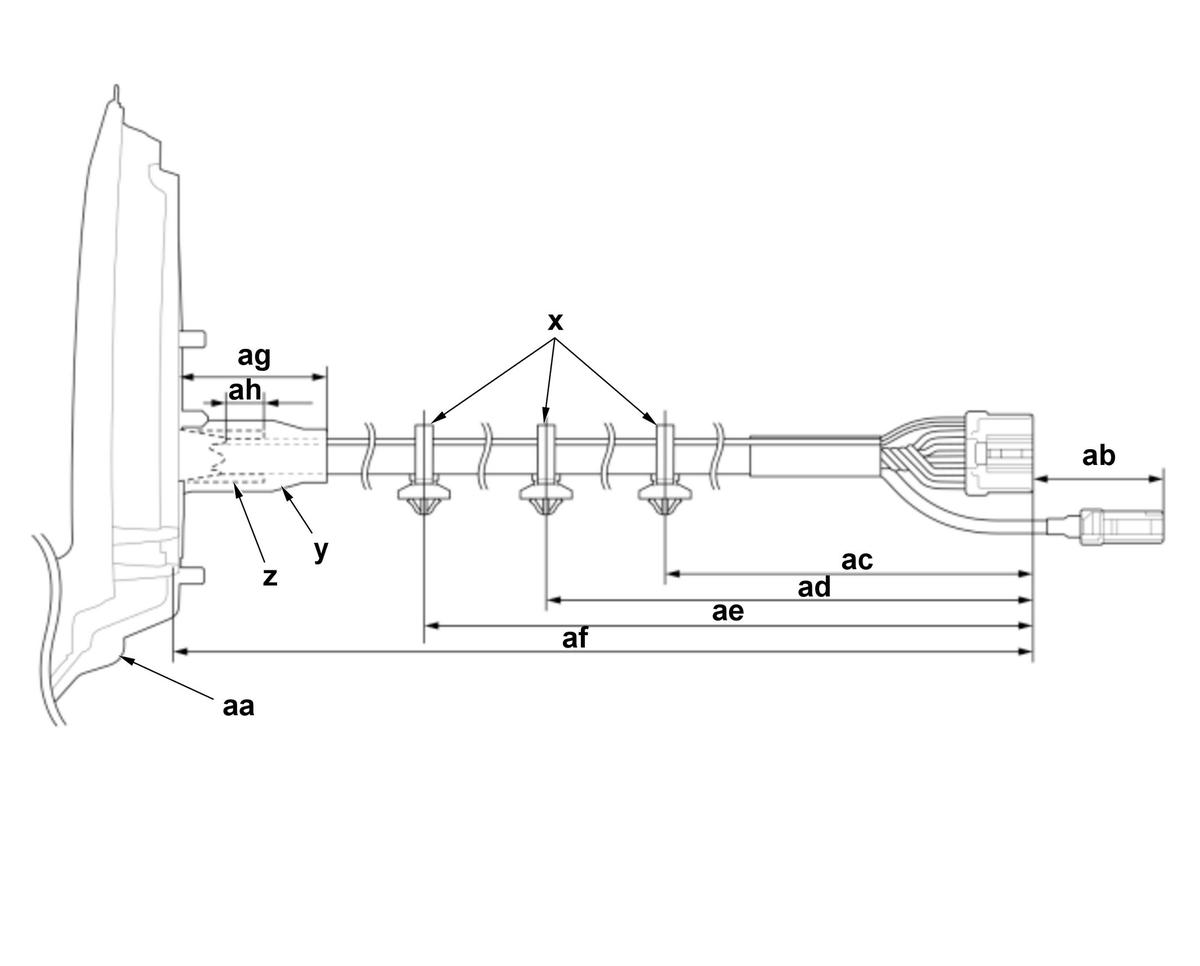

   Parts Informations (Figure 3)

   Position	Name
   x	Harness Band
   y	Harness foam
   z	Electrical tape
   aa	Electrical tape

   Specifications (Figure 3)

   Specification
   ab	40 mm (0.39 in)
   ac	70 mm (0.75 in)
   ad	210 mm (5.83 in)
   ae	320 mm (0.79 in)
   af	420 mm (2.17 in)
   ag	55 mm (4.72 in)
   ah	15 mm (11.81 in)

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

10. J.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

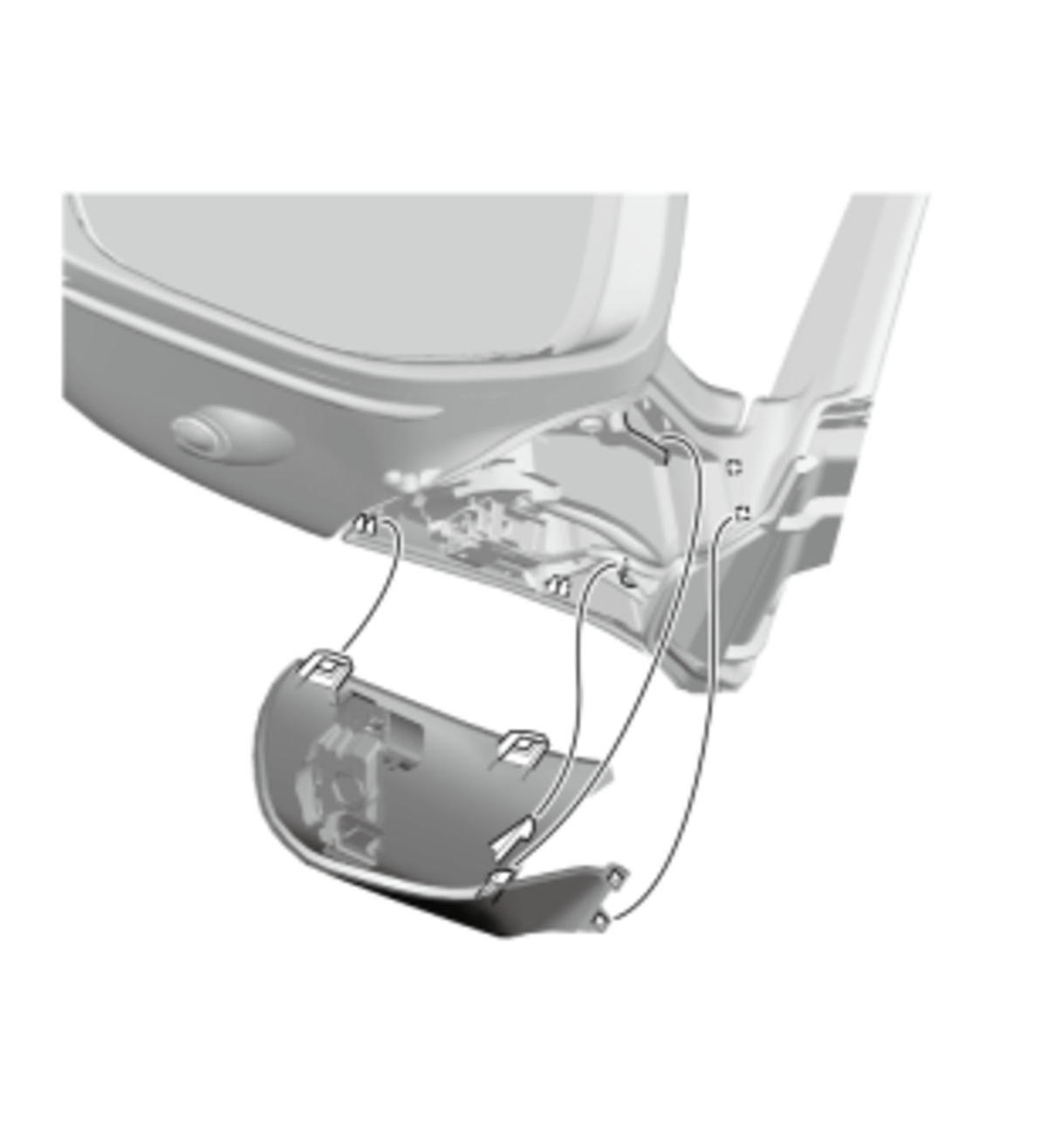

    • Refer to the figure.
