Coolant Temperature Sensor/Switch (For Computer): Service and Repair

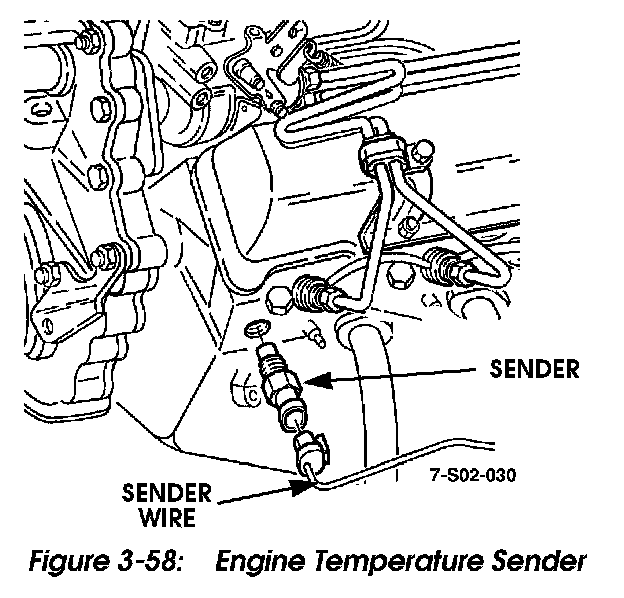

Figure 3-58: Engine Temperature Sender:

ENGINE TEMPERATURE SENDER REPLACEMENT

1. Remove nut, lockwasher, lead, and sender from engine (Figure 3-58).
2. Apply teflon sealant to sender threads, and install sender, lead, lockwasher, and nut on engine (Figure 3-58).
