Starter Relay: Service and Repair

STARTER MOTOR RELAY REPLACEMENT

REMOVAL PROCEDURE

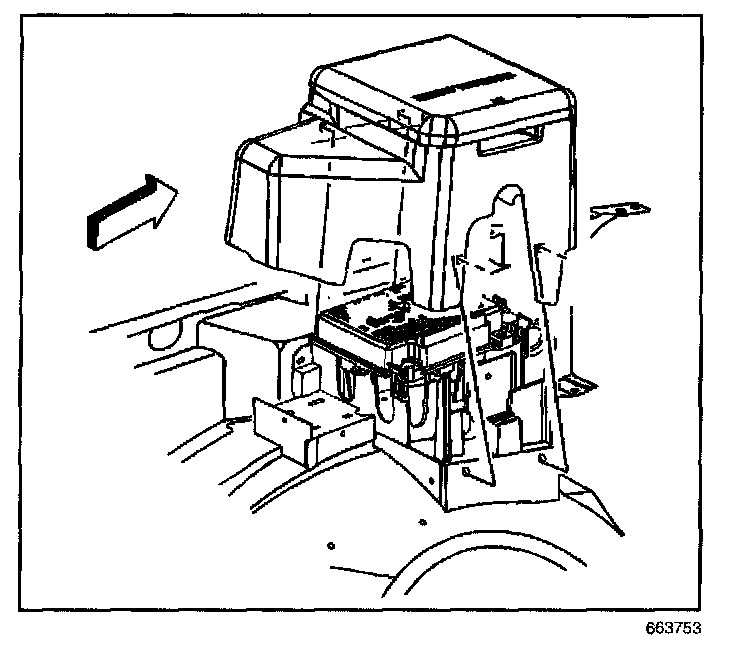

1. Remove the underhood bussed electrical center (UBEC) cover.
2. Remove the starter motor relay.

INSTALLATION PROCEDURE




1. Install the starter motor relay.

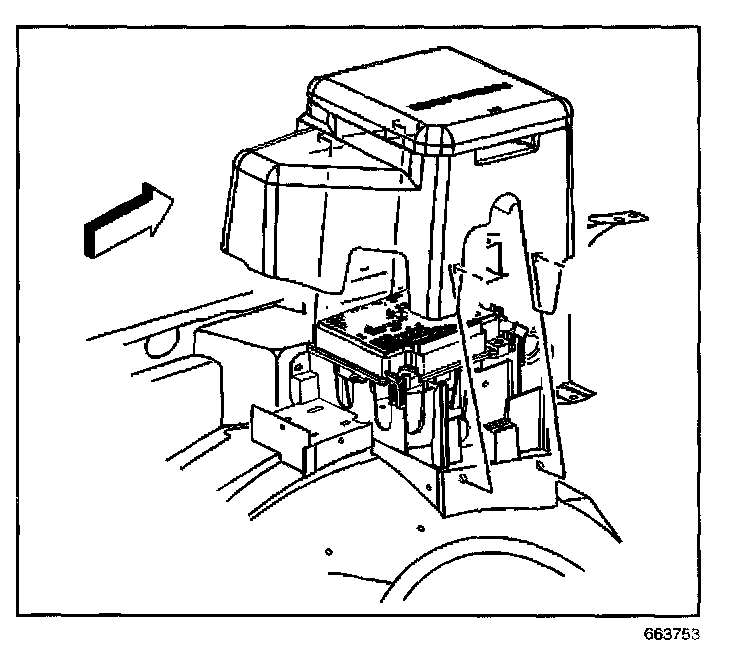

2. Install the underhood bussed electrical center (UBEC) cover.
