Rear Knock Sensor Connector End View (Hummer H2)

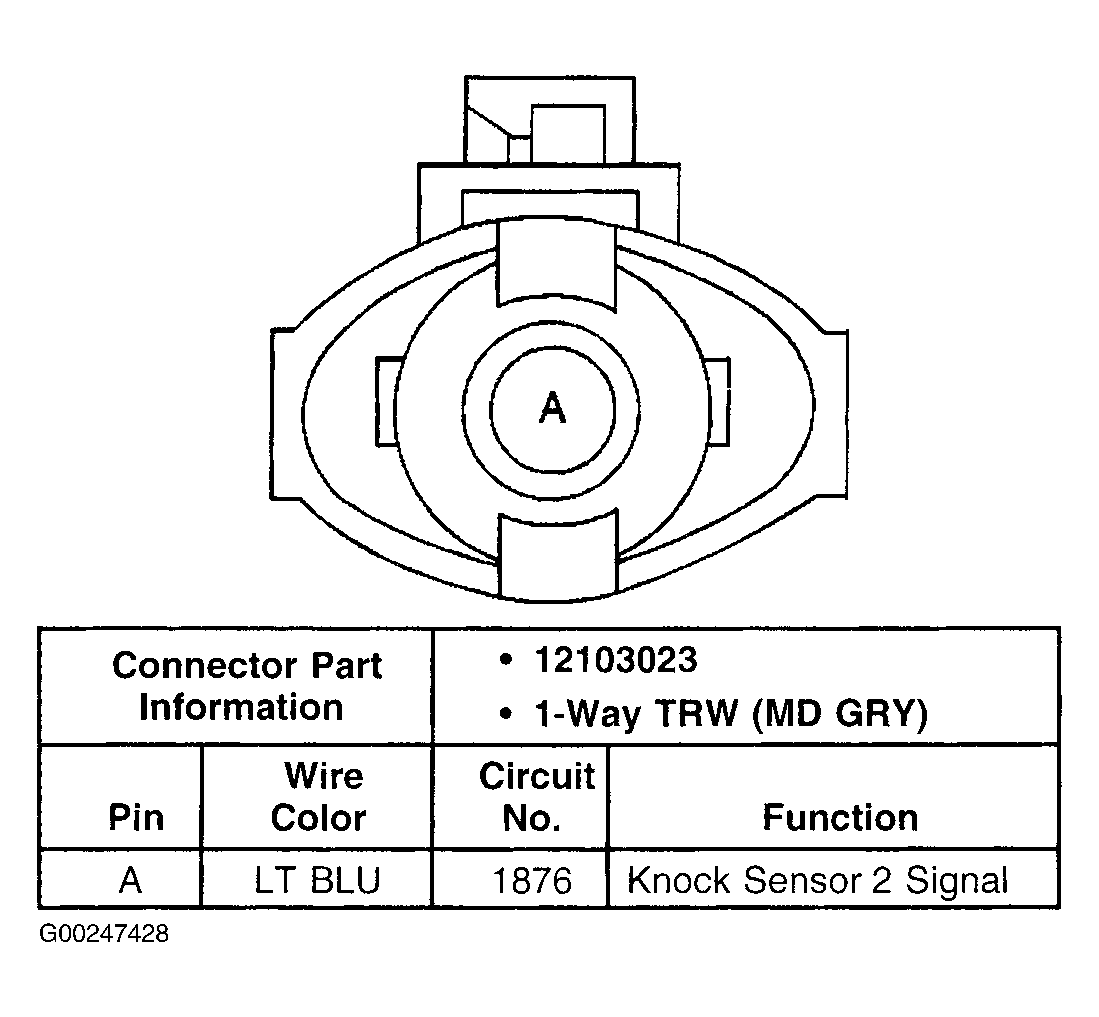

Fig 1: Rear Knock Sensor Connector (Hummer H2)
G00247428Courtesy of GENERAL MOTORS CORP.
