Wiper/Washer System Schematics

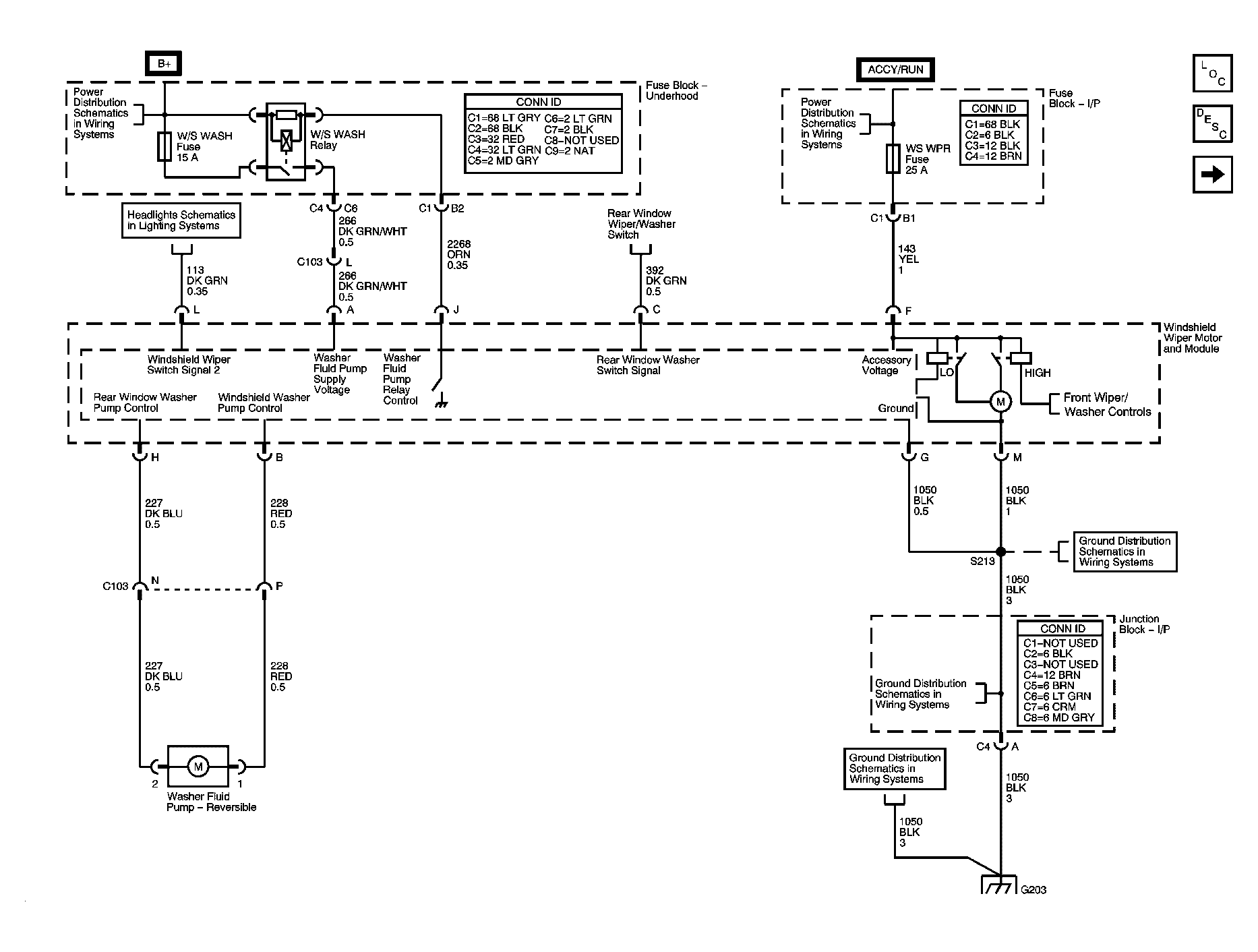

Fig 1: Front Wiper/Washer Power, Ground, and Motors
GM833024Courtesy of GENERAL MOTORS CORP.

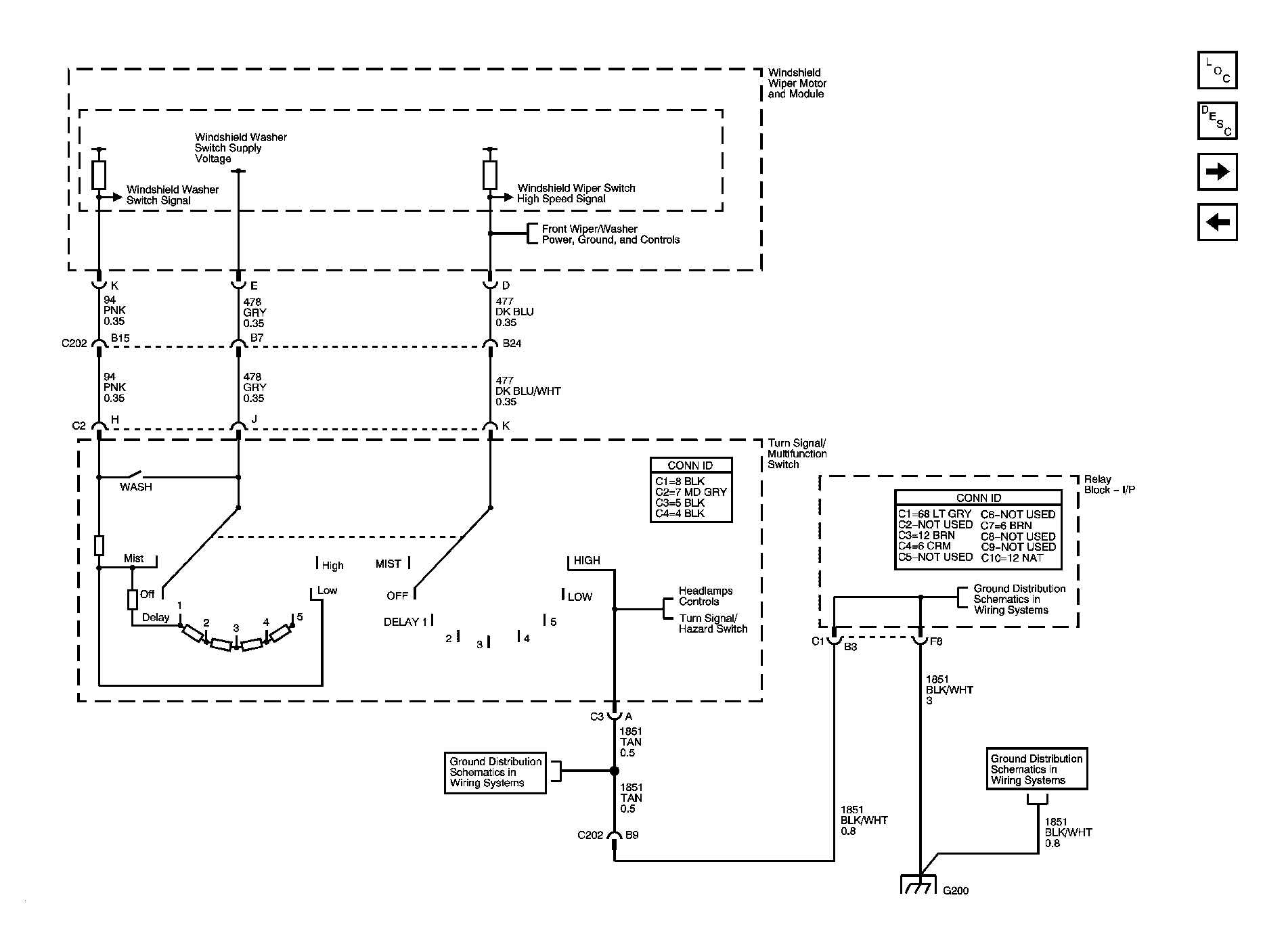

Fig 2: Front Wiper/Washer Controls
GM856995Courtesy of GENERAL MOTORS CORP.

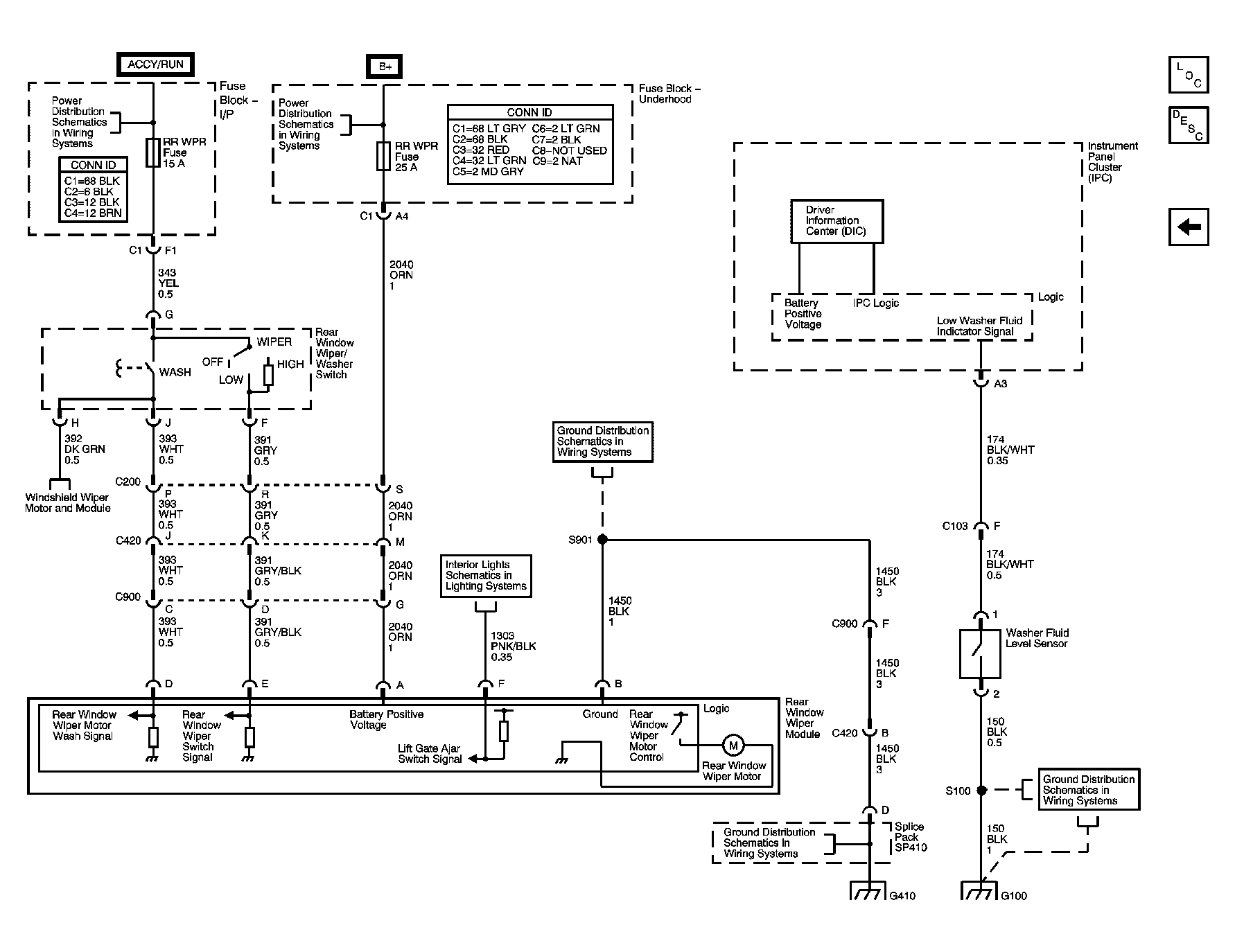

Fig 3: Rear Wiper Power, Ground, Controls, & Washer Fluid Level Sensor
GM833028Courtesy of GENERAL MOTORS CORP.
