Fuel Injector 8 Connector End View (Except 5.3L Flex-Fuel)

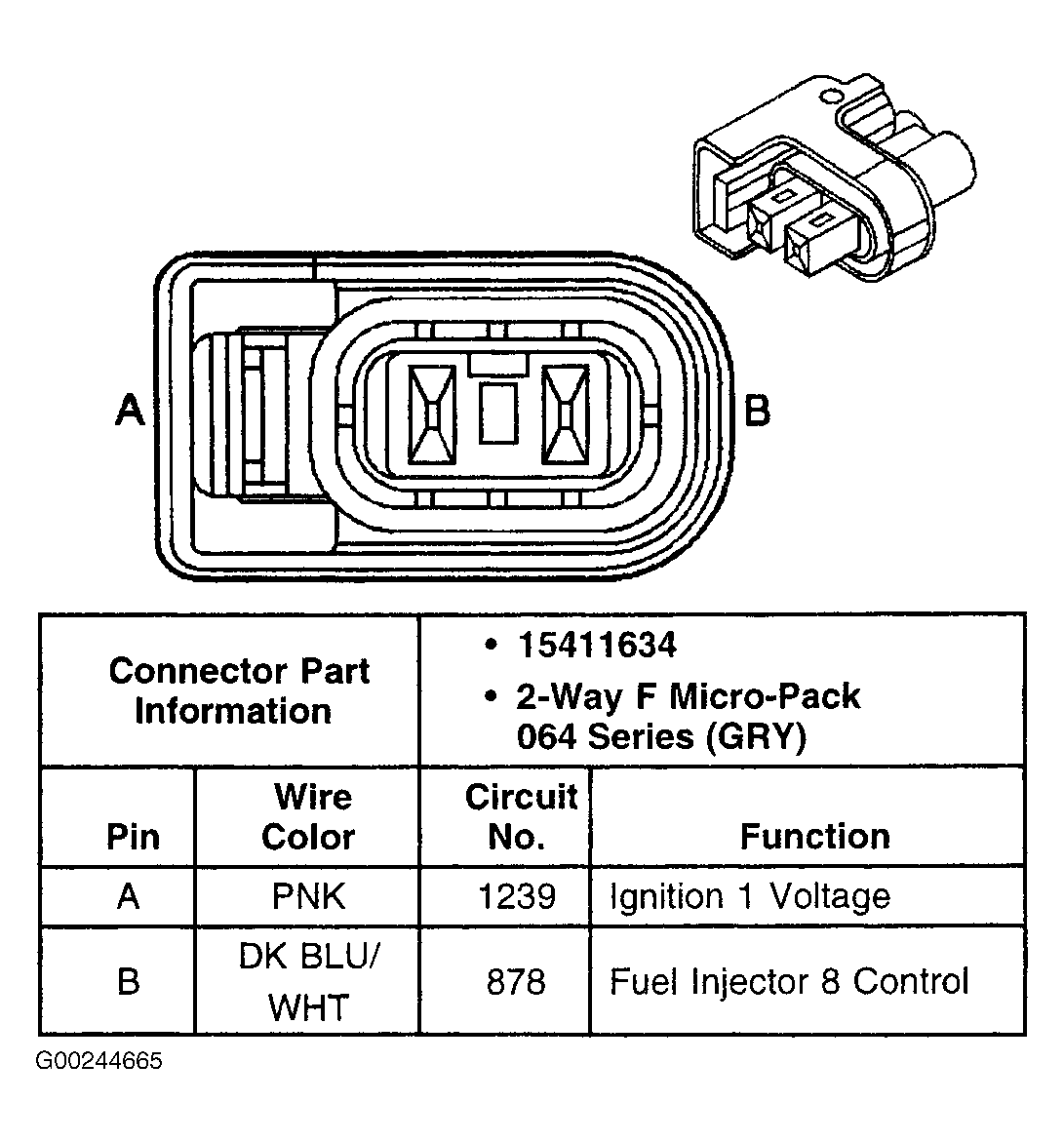

Fig 1: Fuel Injector 8 Connector End View (Except 5.3L Flex-Fuel)
G00244665Courtesy of GENERAL MOTORS CORP.
