Torque Rod Adjustment
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required : J 43300 Rear Deck Lid Torsion Rod Adjuster
WARNING:
When a rear compartment lid hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
- Support the rear compartment lid.
- Remove the front rear compartment trim. Refer to Compartment Trim Panel Replacement - Rear .

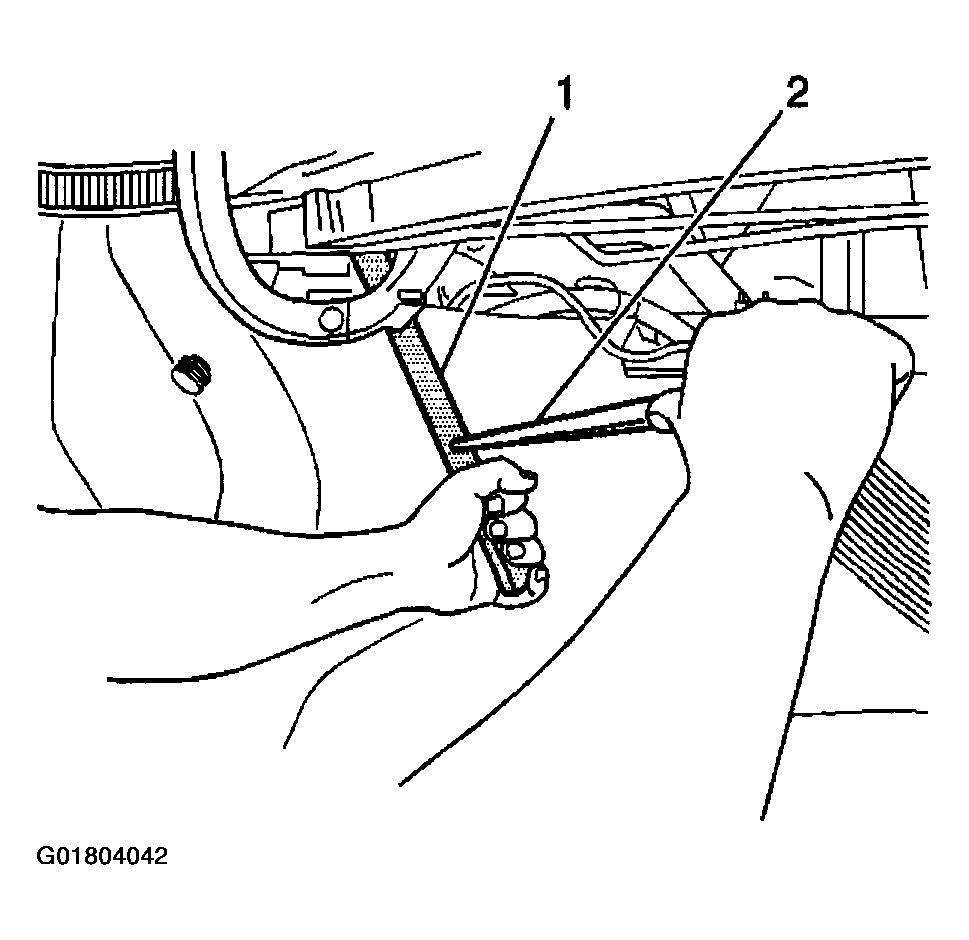

- Install the J 43300
(1) to the torque rod.
Use a ratchet extension (2) for extra leverage.
- Adjust the torque rods to 1 of 3 positions in the adjustment bracket for the desired tension.
- 4.1. Moving the torque rod to a lower notch in the adjustment bracket increases the effort in raising the lid, but decreases the effort in closing the lid.
- 4.2. Moving the torque rod to a higher notch in the adjustment bracket decreases the effort in raising the lid, but increases the effort in closing the lid.
