Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the torque rod into the rear compartment hinge.
Use the J 43300 (1) in order to install the torque rod to a notch in the adjustment bracket.
1. 2.1. Install the J 43300 (1) over the end of the torque rod.
2. 2.2. Use a ratchet extension (2) for extra leverage.
3. 2.3. Pry rearward on the J 43300 (1) and install the torque rod into a notch in the adjustment bracket.
4. 2.4. Remove the J 43300 (1) off the end off the torque rod.
Inspect the operating effort of the rear compartment lid.
Adjust the torque rods. Refer to Compartment Lid Adjustment-Rear .

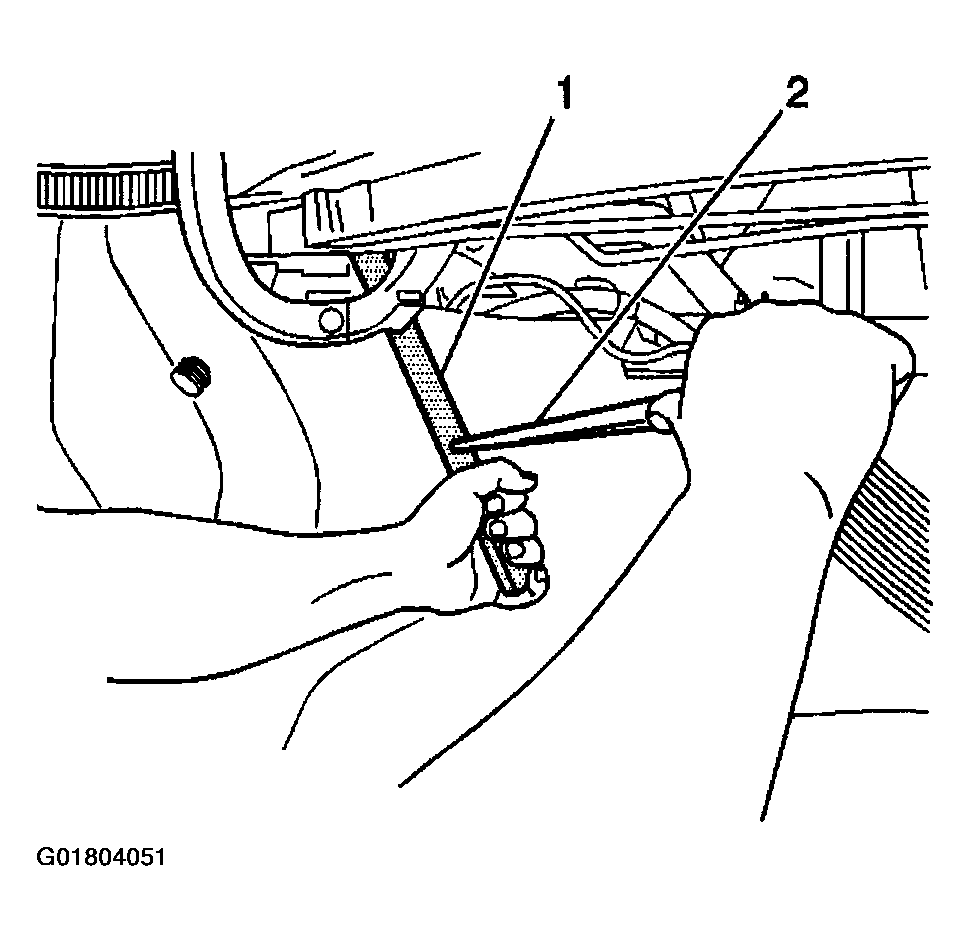

Fig 1: Connecting Torque Rod
Courtesy of GENERAL MOTORS CORP.
Install the rear compartment trim. Refer to Compartment Trim Panel Replacement - Rear .
