Front Bumper Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.

Remove in the order indicated in the table.

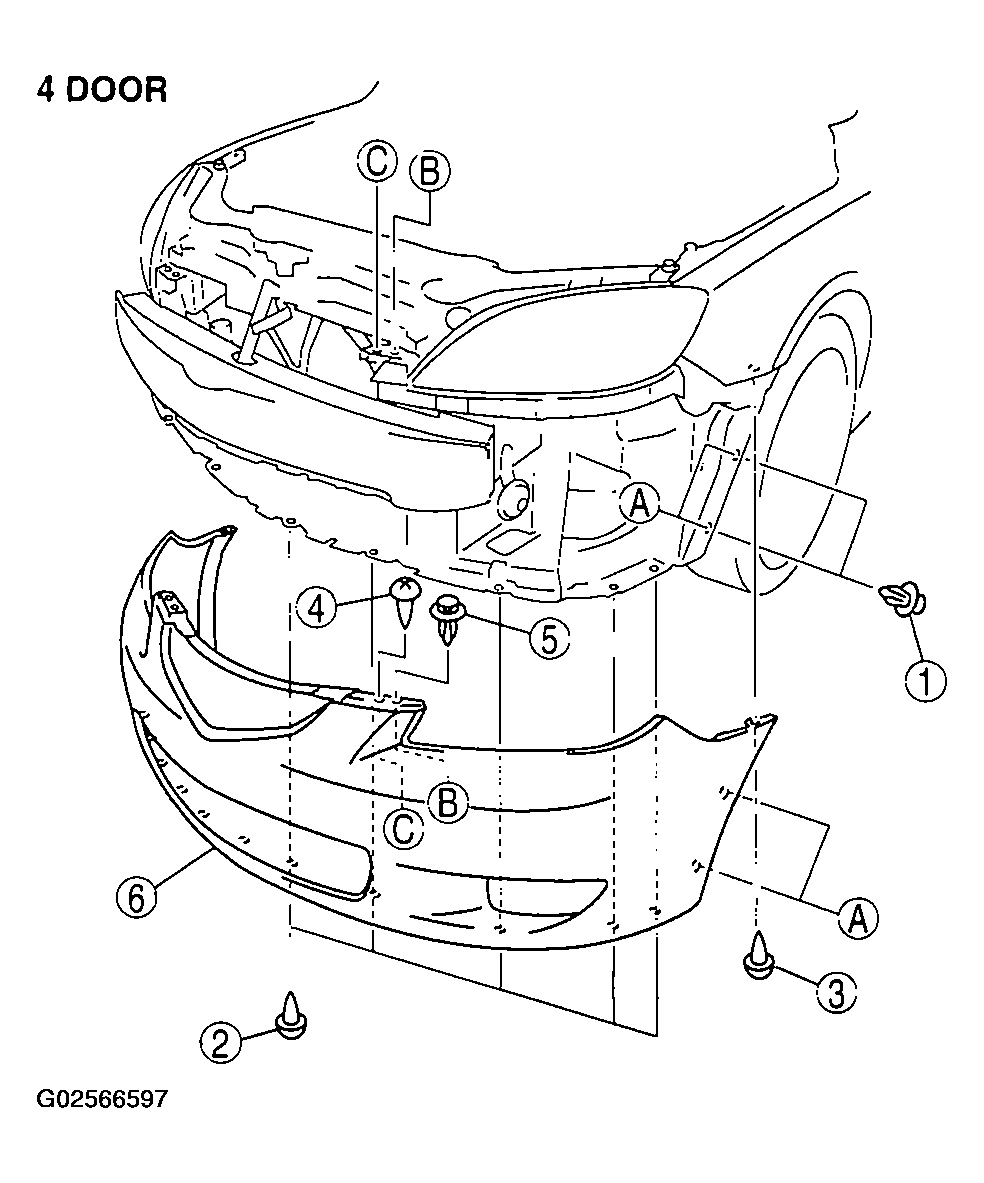

Fig 1: Removing/installing Front Bumper (4 Door)

Courtesy of MAZDA MOTORS CORP.

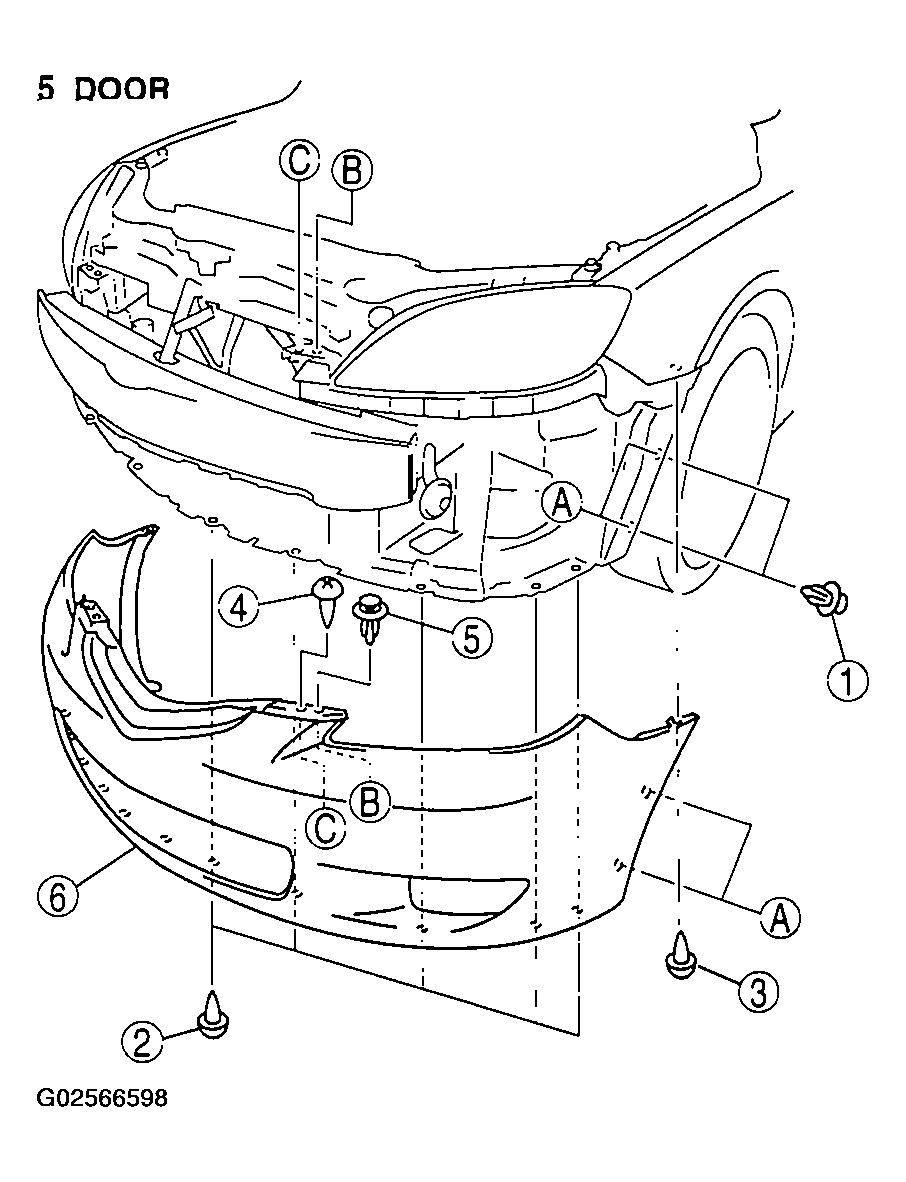

Fig 2: Removing/installing Front Bumper (5 Door)

Courtesy of MAZDA MOTORS CORP.

REMOVAL ORDER OF FRONT BUMPER

Removal Order	Part
1	Fastener A
2	Screw A
3	Screw B
4	Screw C
5	Fastener B
6	Front bumper (See Front Bumper Removal Note .) (See Front Bumper Installation Note .)

Disconnect the front fog light connectors for vehicles with the front fog lights.
Install in the reverse order of removal.
Adjust the front fog light aiming for vehicles with the front fog lights. (See FRONT FOG LIGHT AIMING .)
