Wiper/Washer System Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

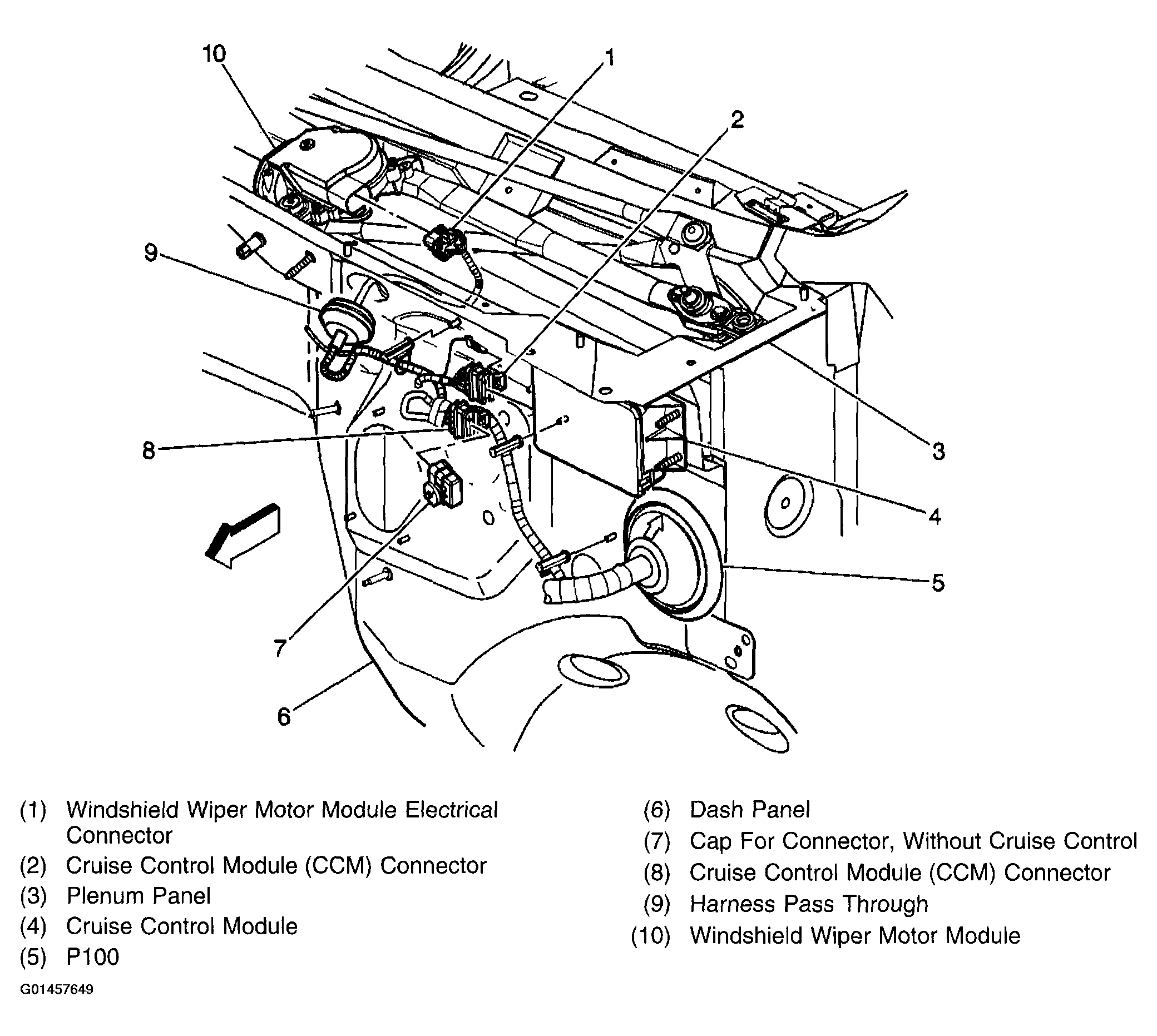

Fig 1: Locating Wiper/Washer Components (Left Rear Underhood - Front Of Dash)

Courtesy of GENERAL MOTORS CORP.

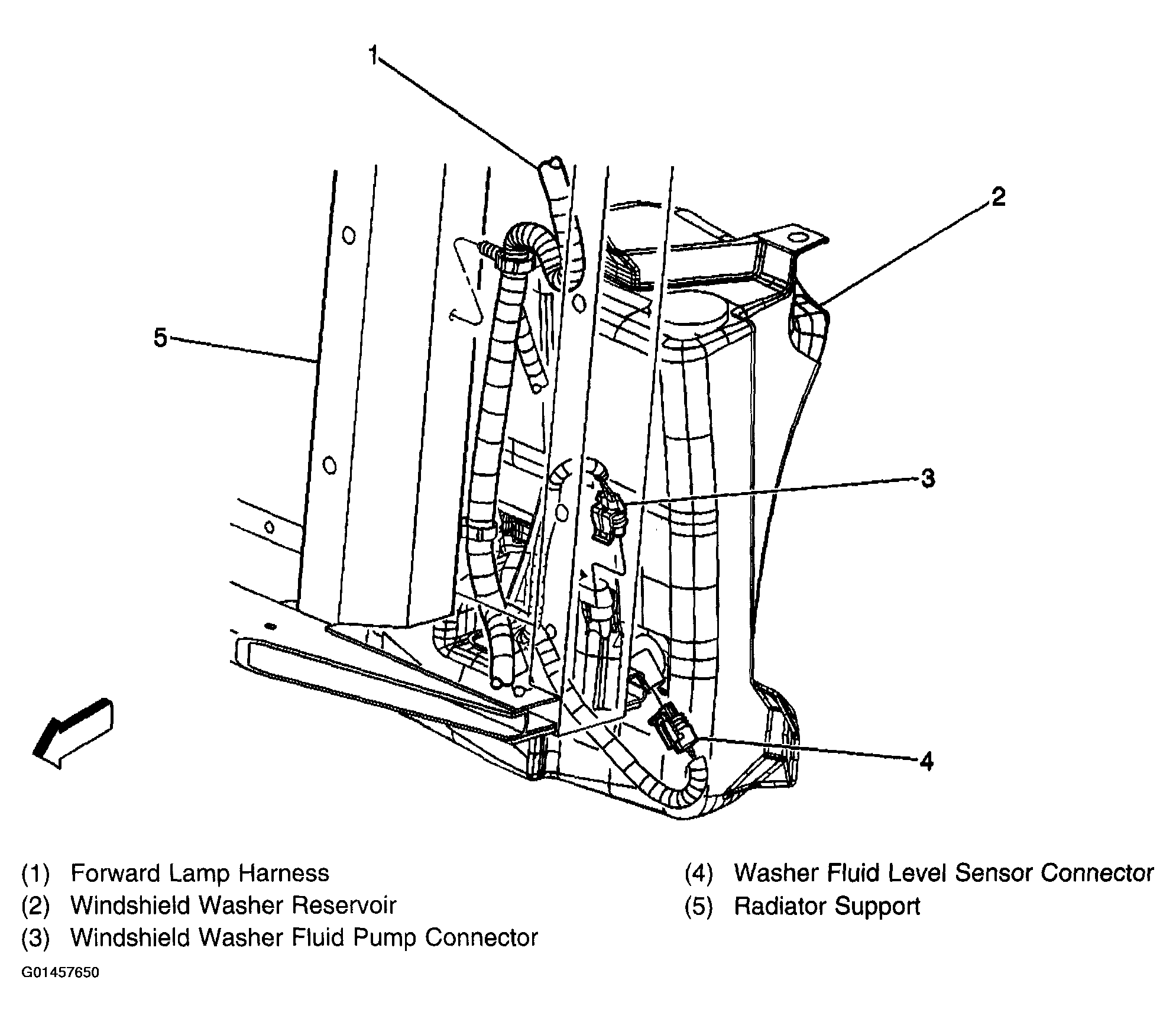

Fig 2: Locating Wiper/Washer Components (LF Corner Of Vehicle)

Courtesy of GENERAL MOTORS CORP.

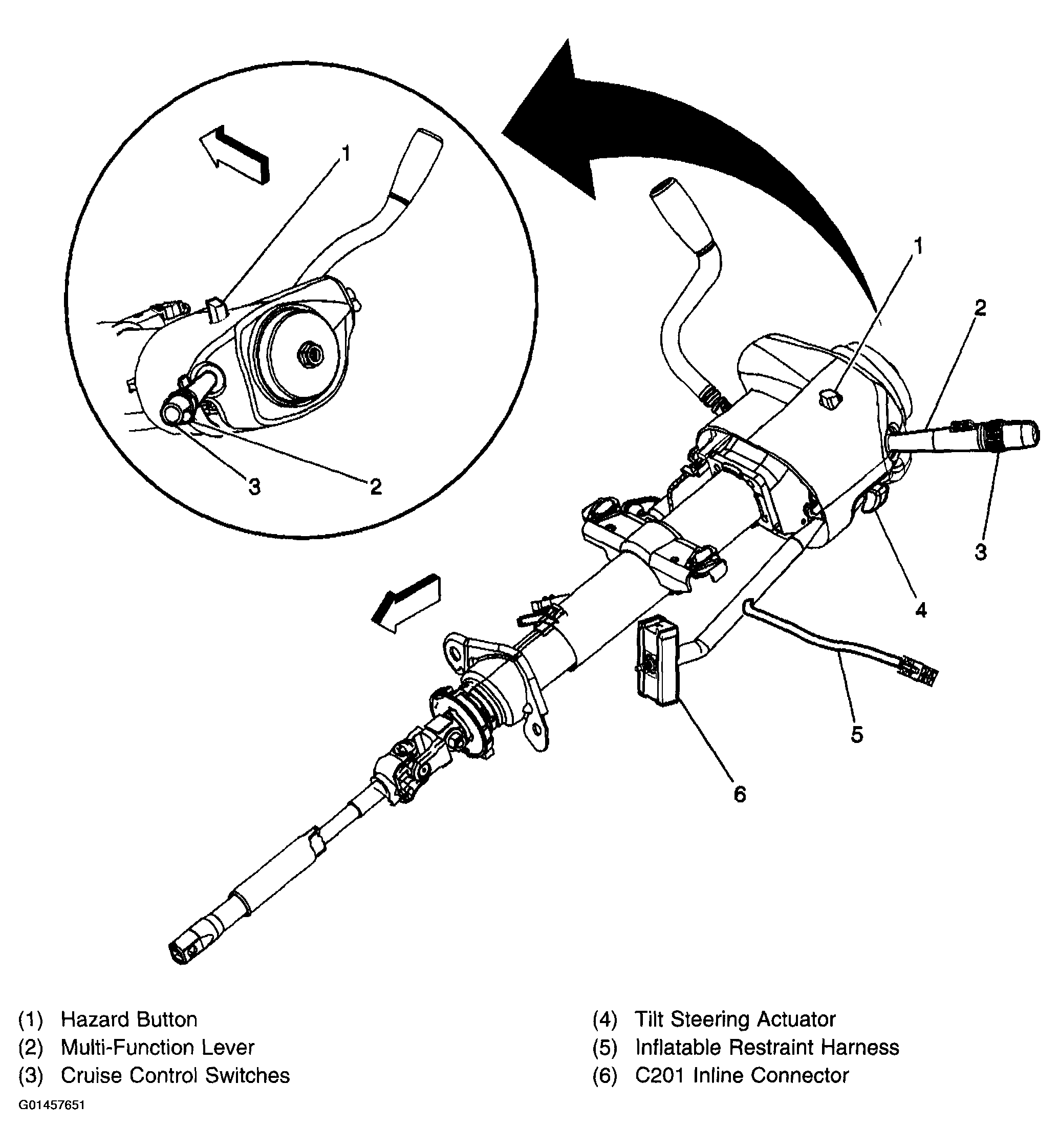

Fig 3: Locating Steering Column Component

Courtesy of GENERAL MOTORS CORP.

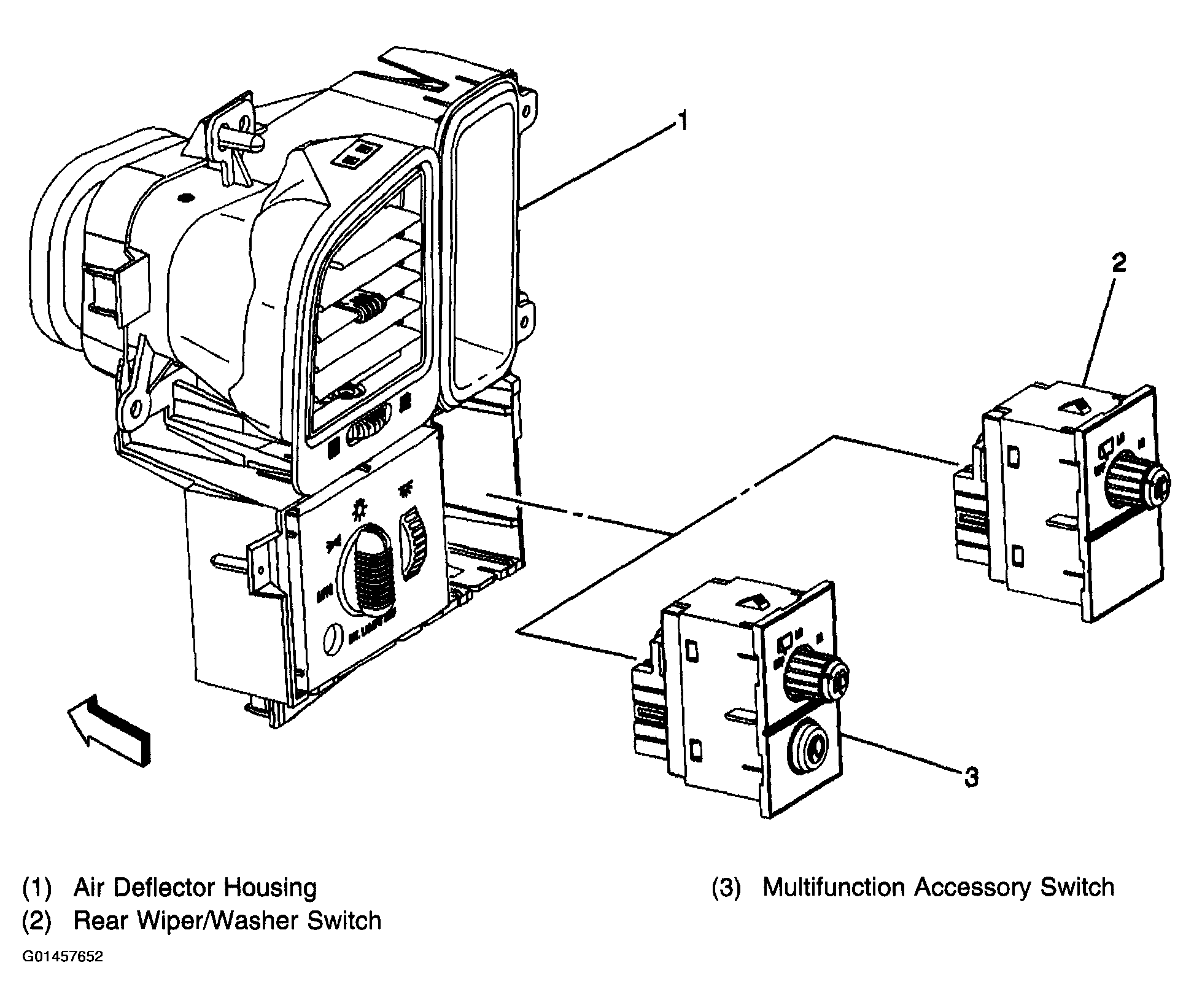

Fig 4: Locating Rear Window Wiper Switch

Courtesy of GENERAL MOTORS CORP.

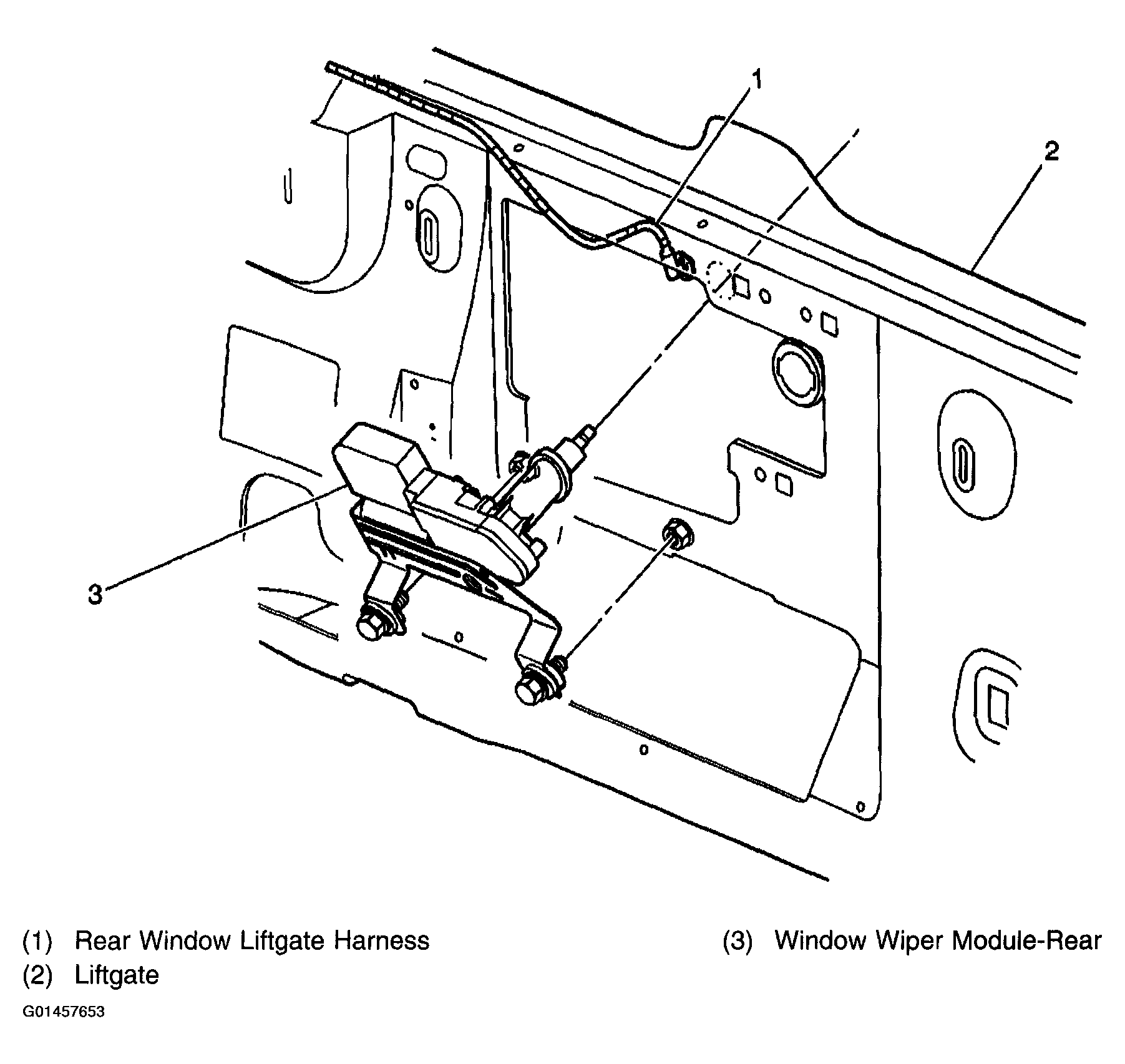

Fig 5: Locating Rear Window Wiper Motor

Courtesy of GENERAL MOTORS CORP.
