Wiper/Washer System Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Connector End Views Of Multifunction Accessory Switch

Courtesy of GENERAL MOTORS CORP.

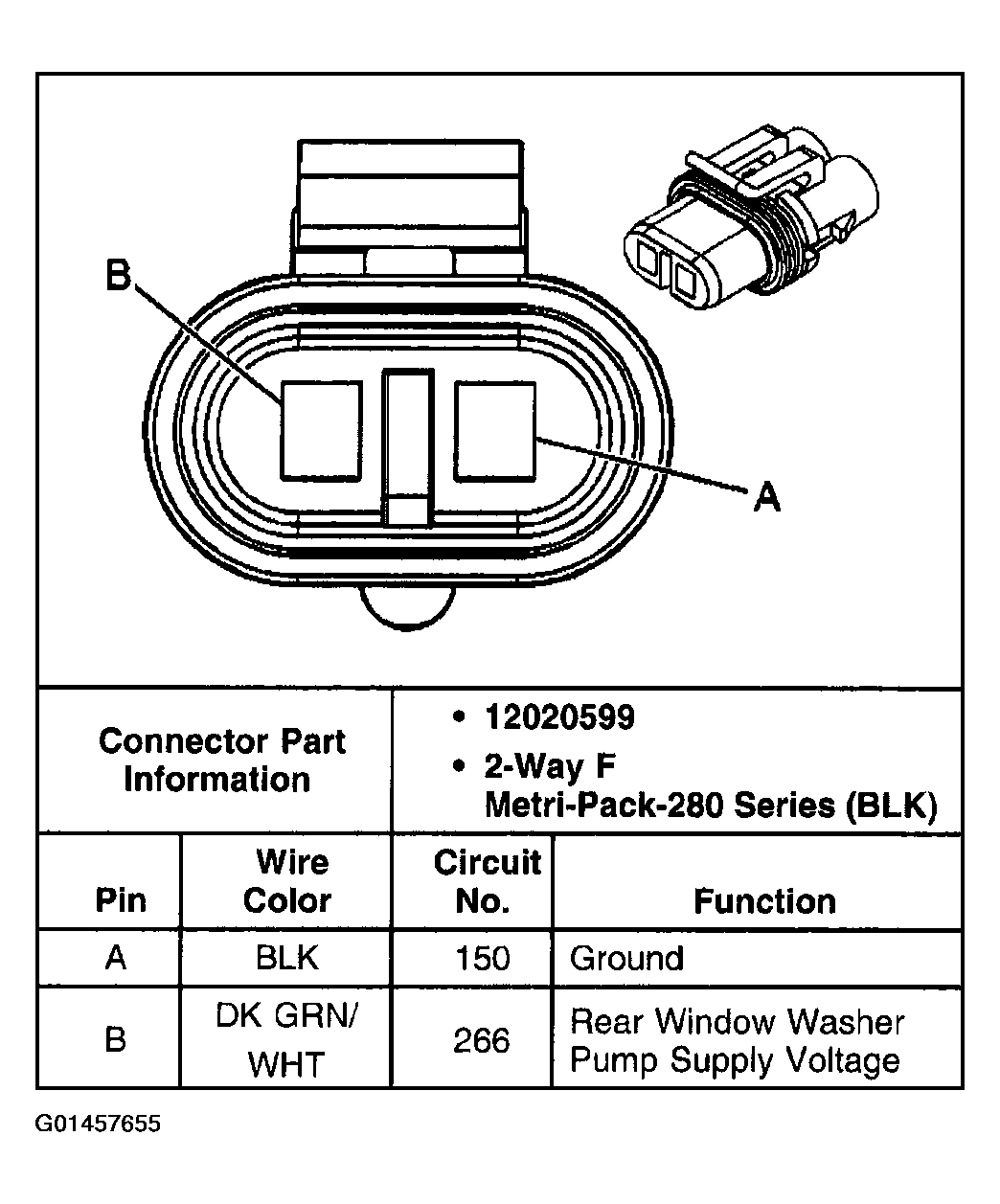

Fig 2: Locating Connector End Views Of Rear Window Washer Pump

Courtesy of GENERAL MOTORS CORP.

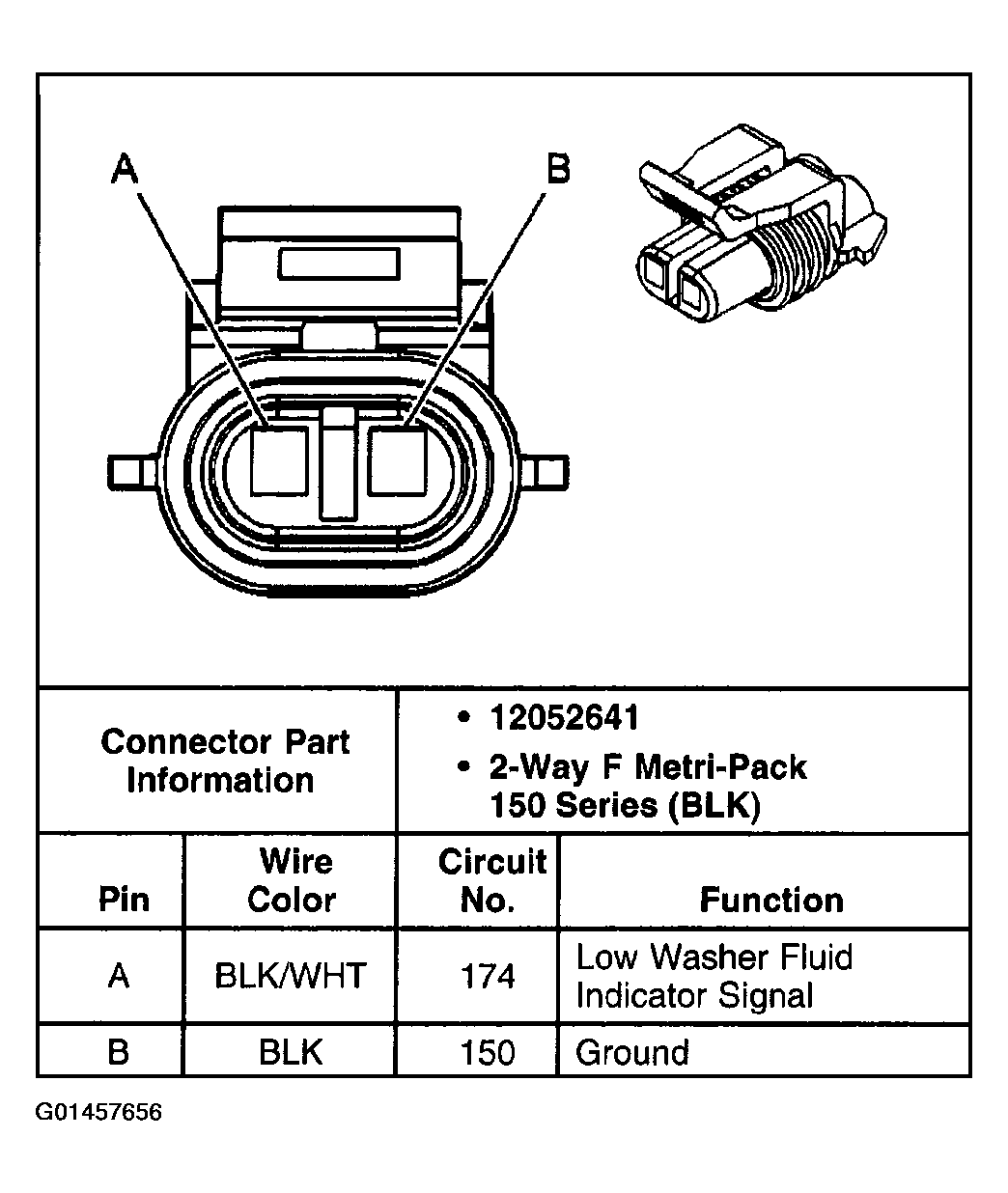

Fig 3: Locating Connector End Views Of Washer Fluid Level Sensors

Courtesy of GENERAL MOTORS CORP.

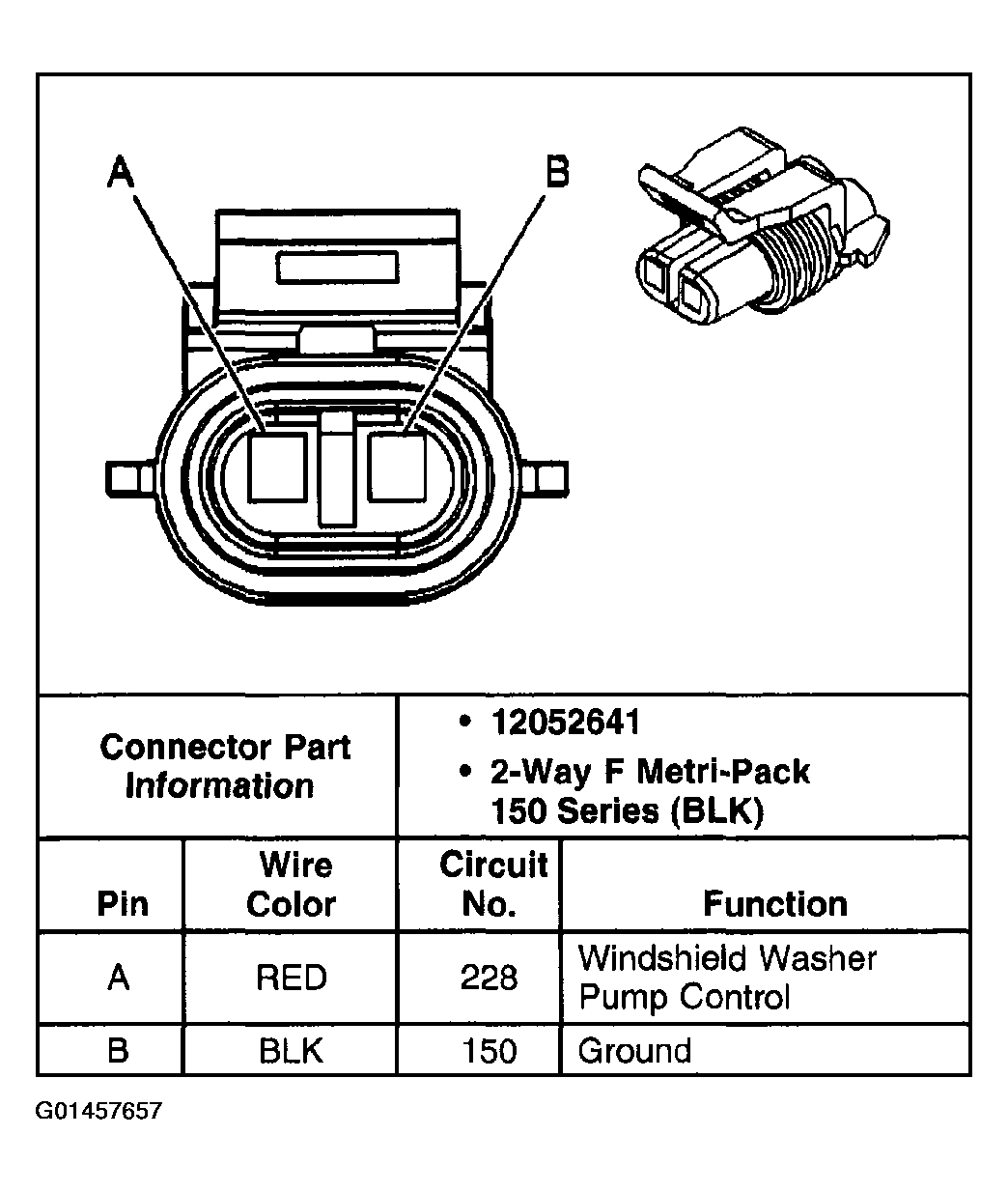

Fig 4: Locating Connector End Views Of Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating Connector End Views Of Windshield Wiper Motor Module

Courtesy of GENERAL MOTORS CORP.

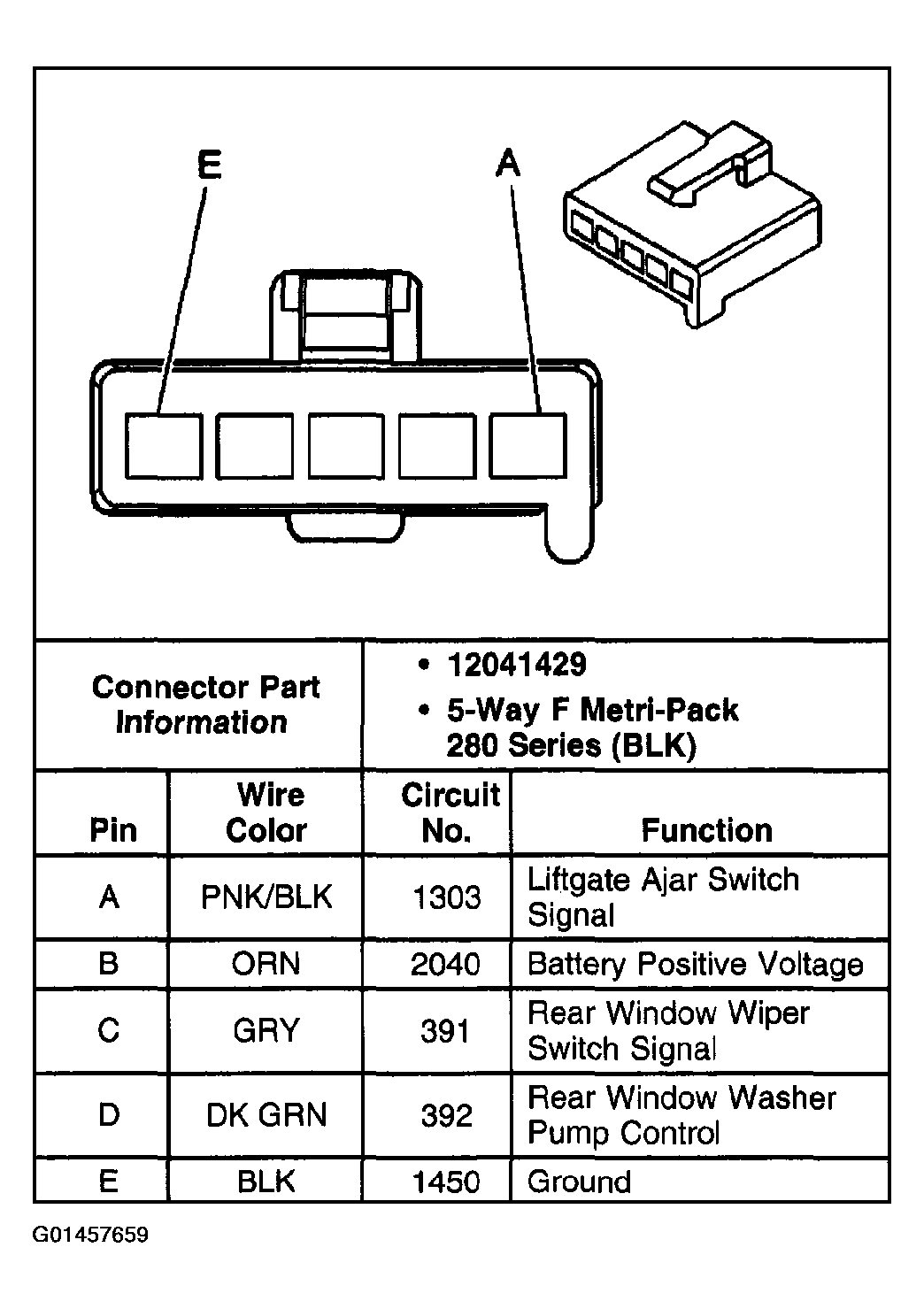

Fig 6: Locating Connector End Views Of Window Wiper Module - Rear

Courtesy of GENERAL MOTORS CORP.
