Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console to the roof.
  2. Connect the electrical connectors.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the console roof screw.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

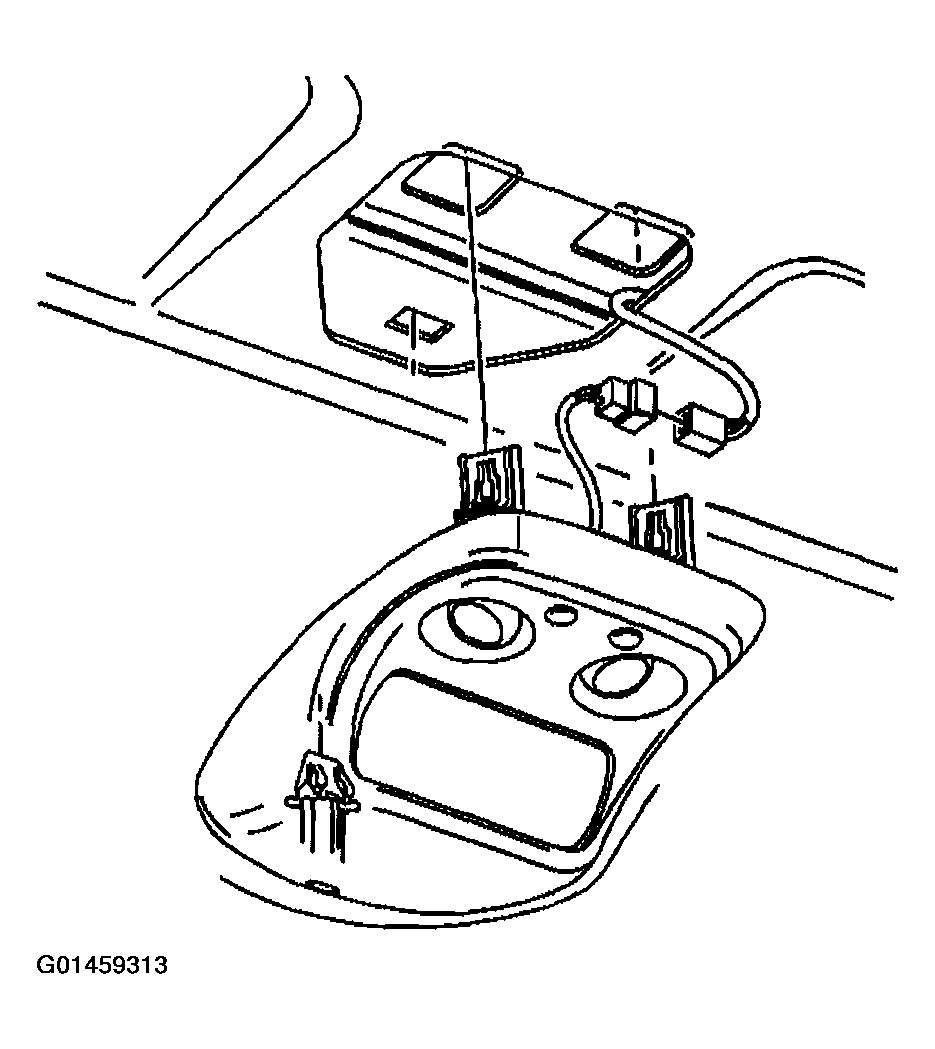

    Fig 1: Installing Console To Roof
    G01459313Courtesy of GENERAL MOTORS CORP.
