Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor control processor.
    NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions and Notices.
  2. Install the retaining screw. Tighten:  Tighten the screw to 2 N.m (18 lb in).
  3. Connect the electrical connector (1).
  4. Install the DIM bracket screws. Tighten:  Tighten the screw to 1.4 N.m (12 lb in).
  5. Install the DIM into the bracket.
  6. Install the instrument panel storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  7. Install the right closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT In Instrument Panel, Gages and Console.

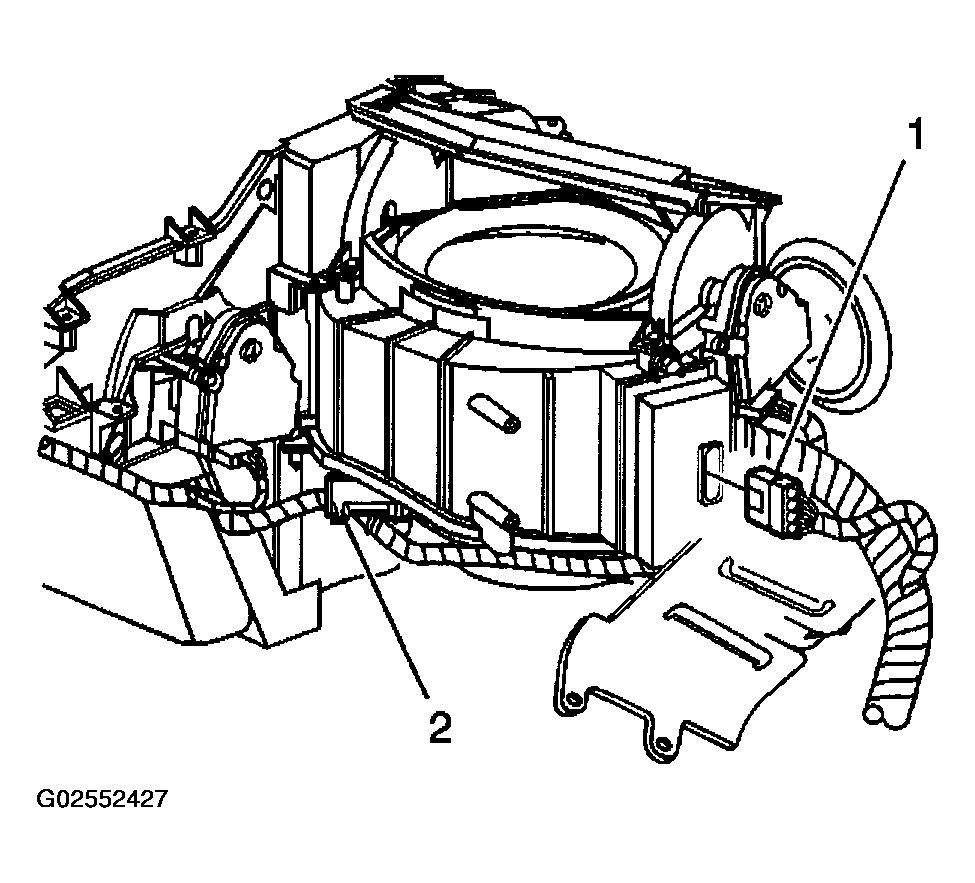

    8. Fig 1: Connecting Electrical Connector
    G02552427Courtesy of GENERAL MOTORS CORP.
