OnStar Button Assembly Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

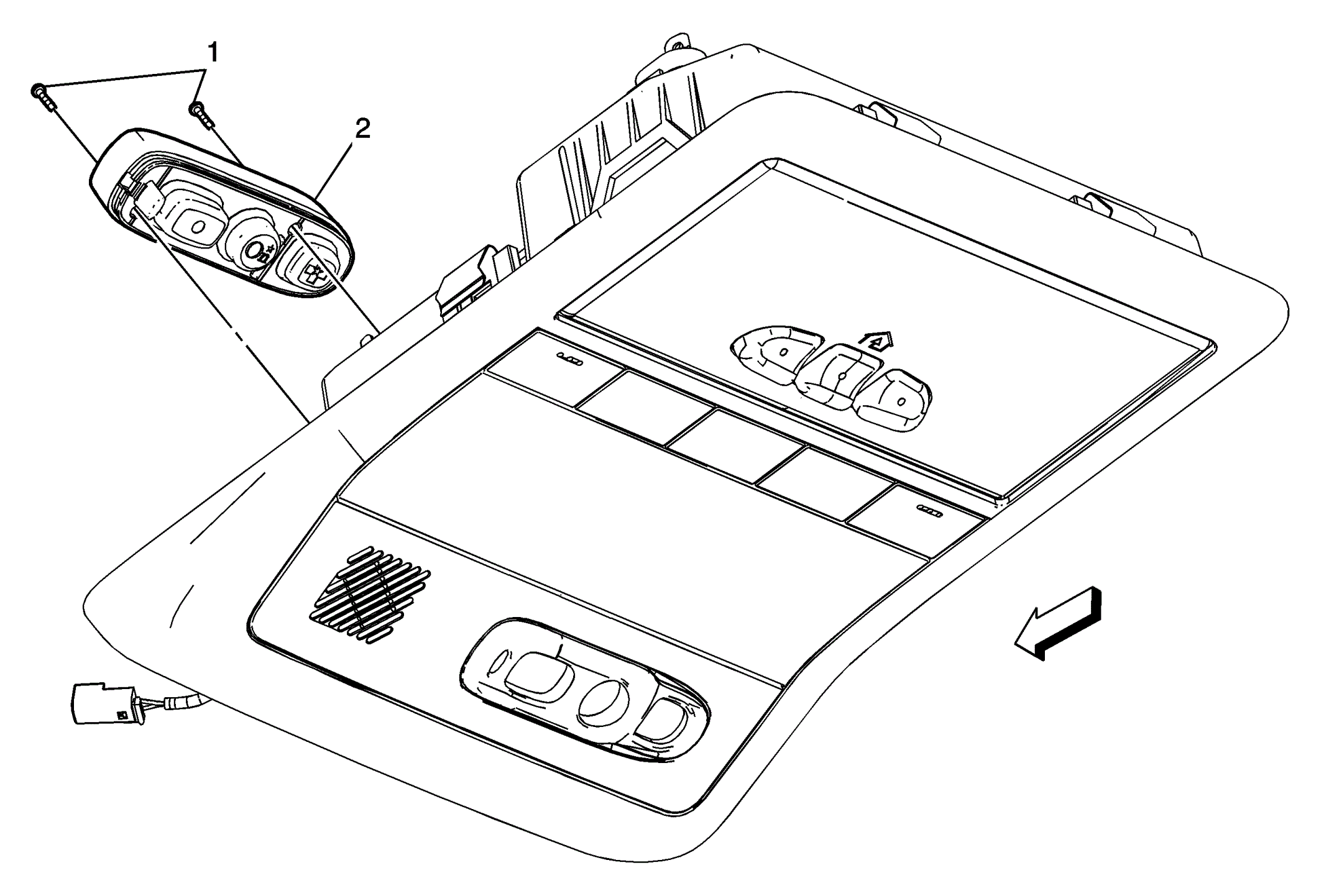

Fig 1: OnStar Button Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the roof console assembly. Refer to Roof Console Replacement .
1	Communication Center Call Switch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Communication Center Call Switch Assembly Procedure Disconnect the electrical connection. Reconfigure the OnStar System. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the roof console assembly. Refer to Roof Console Replacement .

Communication Center Call Switch Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Communication Center Call Switch Assembly

Procedure

Disconnect the electrical connection.
Reconfigure the OnStar System. Refer to Control Module References .
