Engine Coolant Temperature Sensor Connector End View

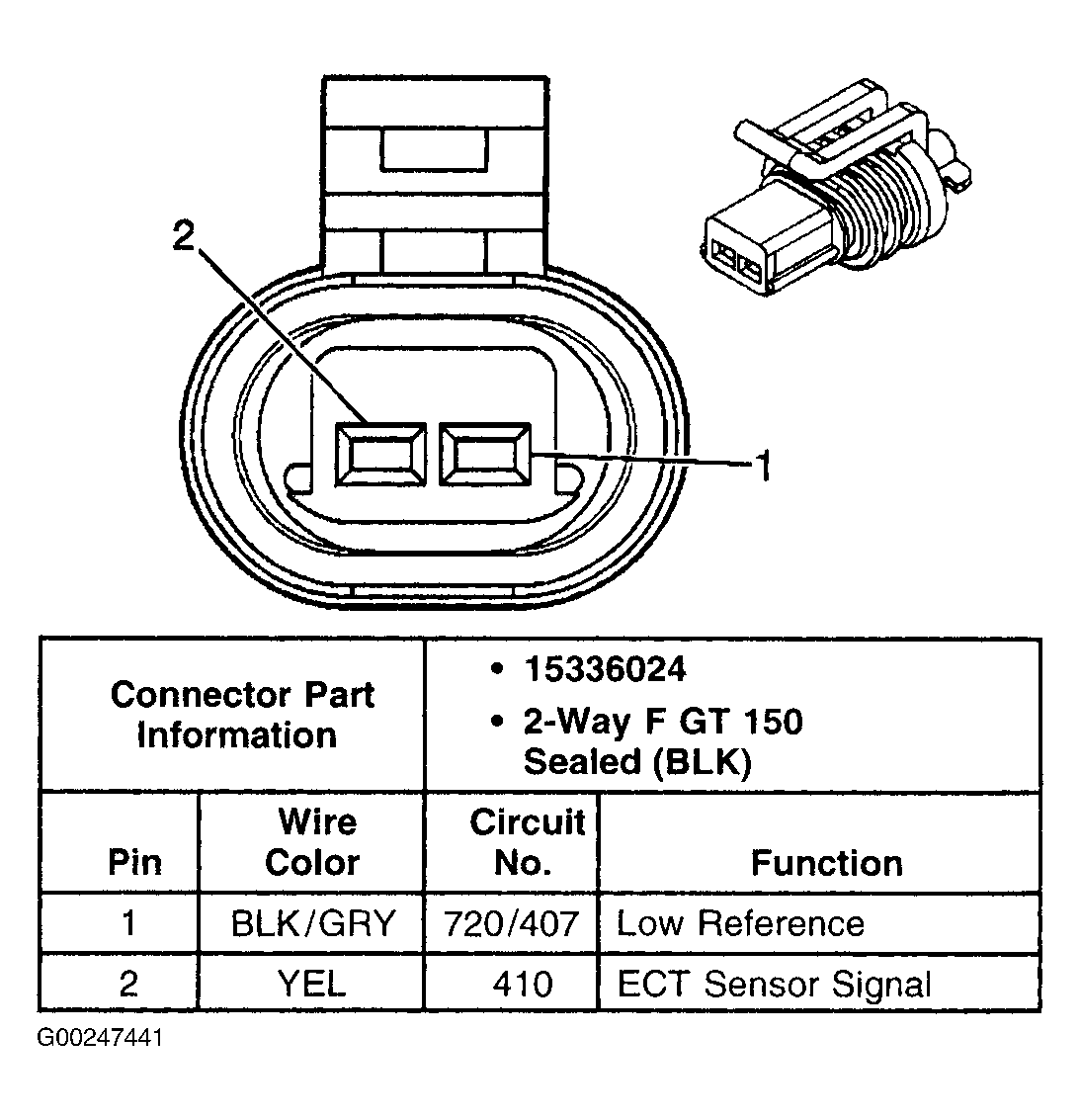

Fig 1: Engine Coolant Temperature Sensor Connector End View
G00247441Courtesy of GENERAL MOTORS CORP.
