Navigation System Component Views

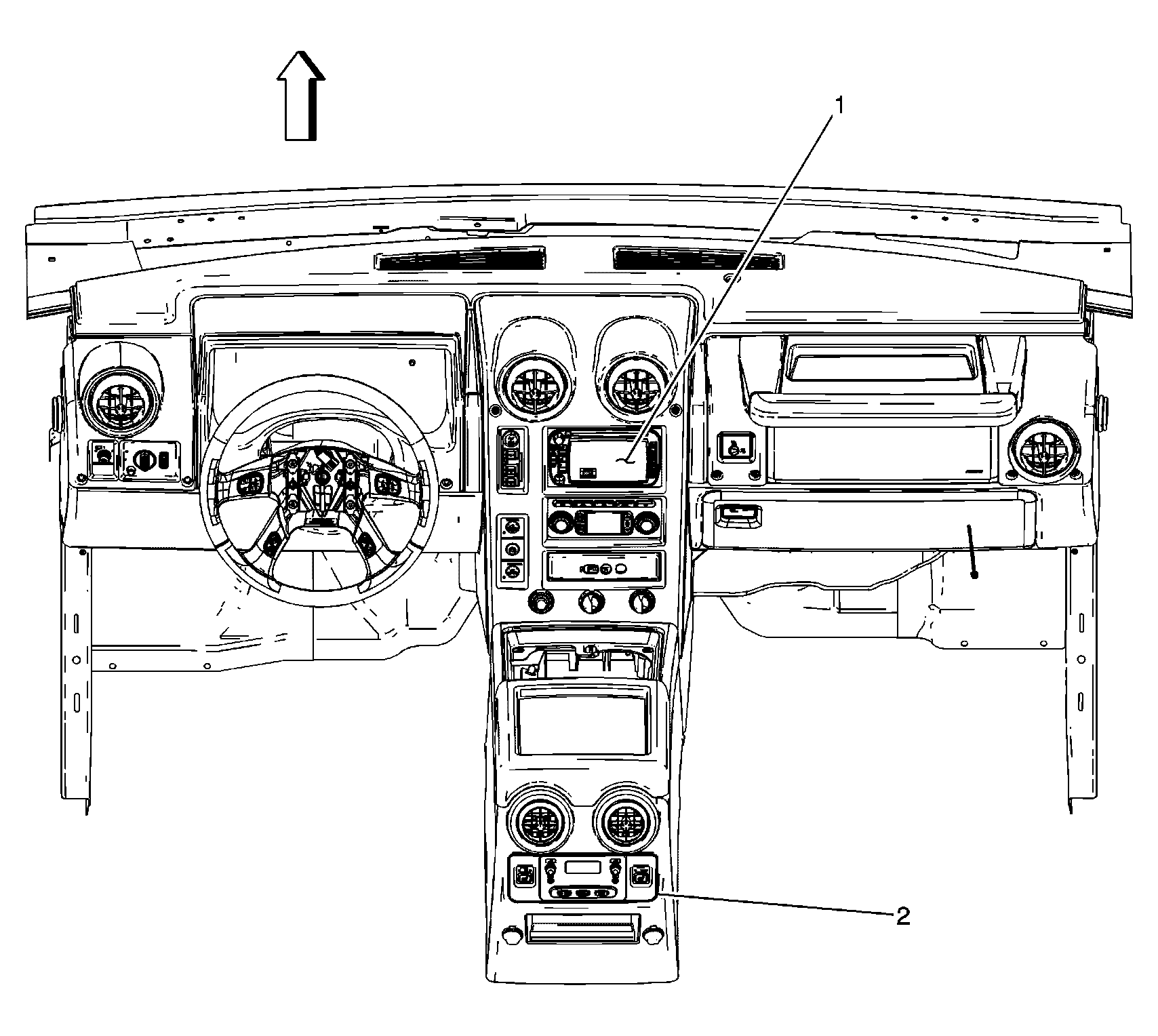

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radio and Navigational Receiver |
| 2 |
Rear Seat Audio (RSA) Control |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular and Navigation Antenna |
| 2 |
Radio Antenna |
| 3 |
Navigation Radio Antenna - GPS (UM8) |
| 4 |
Radio w/DVD |
| 5 |
Speaker - Front Subwoofer |
| 6 |
Audio Amplifier |
