Removal Procedure

  1. Position the window in the full down position.

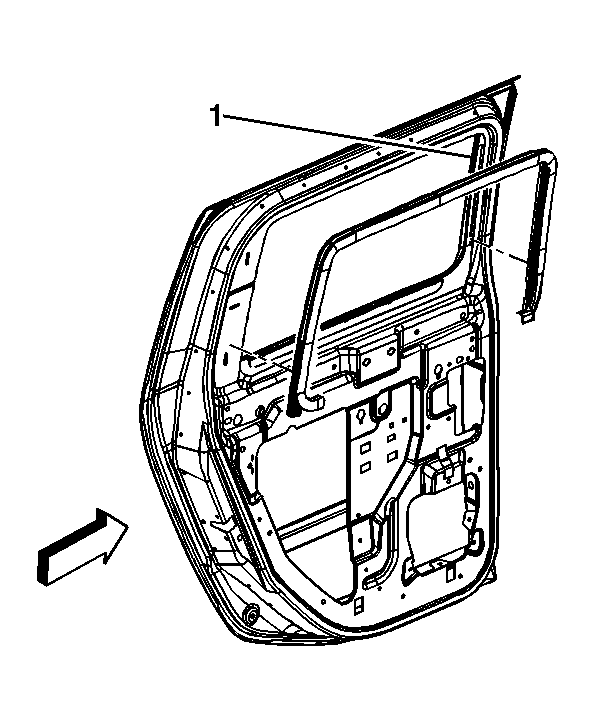

    2. Fig 1: Rear Door Window Weatherstrip
    GM839411Courtesy of GENERAL MOTORS CORP.
  2. Starting at one side, remove the weatherstrip by pulling the weatherstrip off of the flange in the door window frame (1).
