SENDING UNITS & SENSORS LOCATION
| Component | Location |
|---|---|
| A/C Refrigerant Pressure Sensor | In rear of A/C compressor. |
| Air Suspension Pressure Sensor | At right side of compressor head. See Figure . |
| Air Suspension Sensor - LR | At left rear frame rail, attached to top of frame. See Figure . |
| Air Suspension Sensor - RR | At right rear frame rail, attached to top of frame. |
| Air Temperature Sensor Connector - Lower Left | On left side of HVAC assembly. See Figure . |
| Air Temperature Sensor Connector - Lower Right | On left side of HVAC assembly. See Figure . |
| Air Temperature Sensor Connector - Upper Right | At right side of dash panel. See Figure . |
| Air Temperature Sensor - Inside | In left roof rail, forward of "B" pillar. See Figure . |
| Air Temperature Sensor - Upper Left | At left side of dash panel. See Figure . |
| Air Temperature Sensor - Upper Right | At right side of dash panel. See Figure . |
| Ambient Air Temperature Sensor - HVAC | At right front of vehicle, to right of radiator support. See Figure . |
| Ambient Air Temperature Sensor - Mirror | At right front of vehicle, to right of radiator support. See Figure . |
| Ambient Light/Sunload Sensor Assembly | On top center of dash. See Figure . |

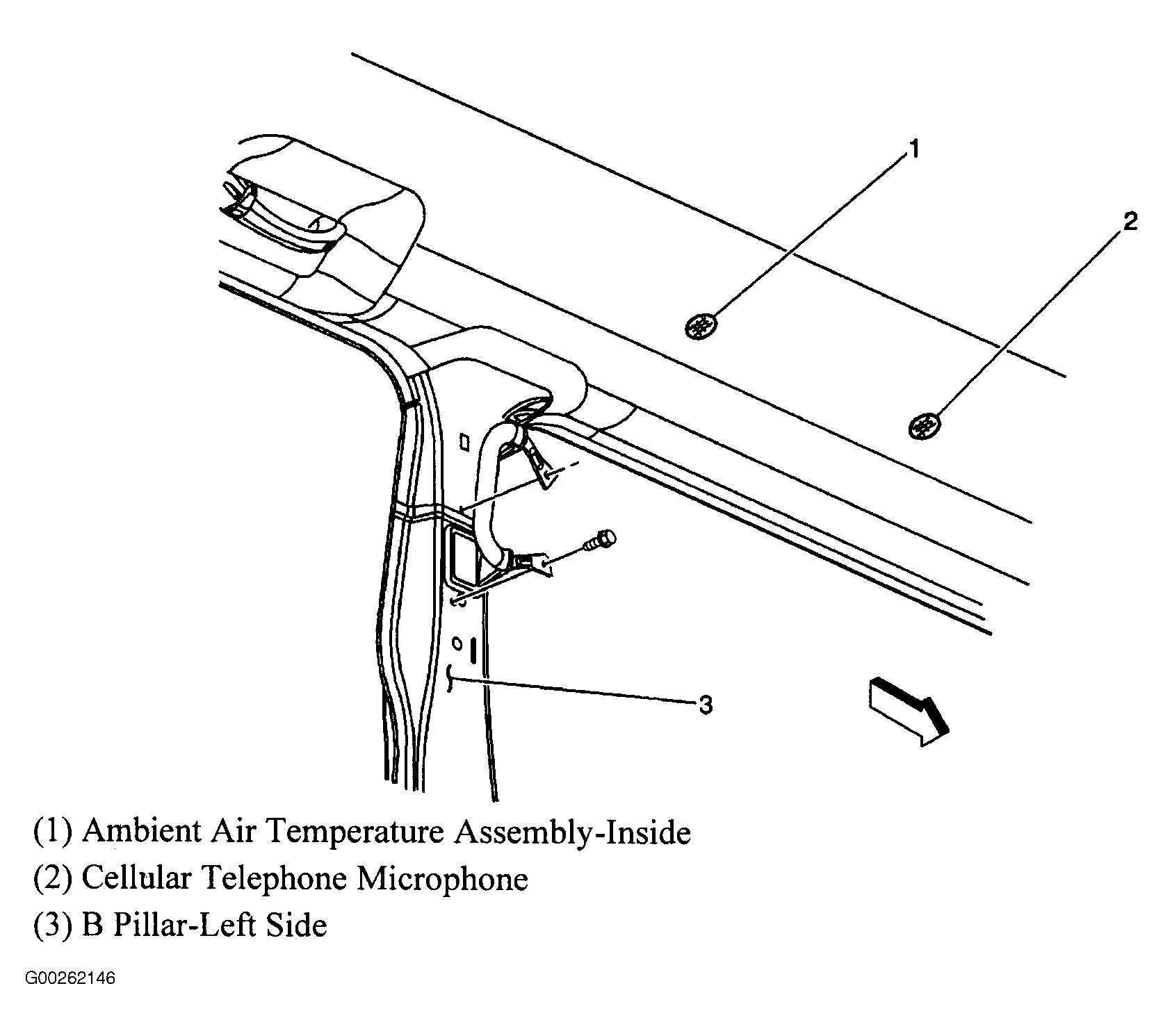

| Ambient Temperature Sensor Assembly-Inside | At middle left side of headliner, above driver's seat. See Figure . |

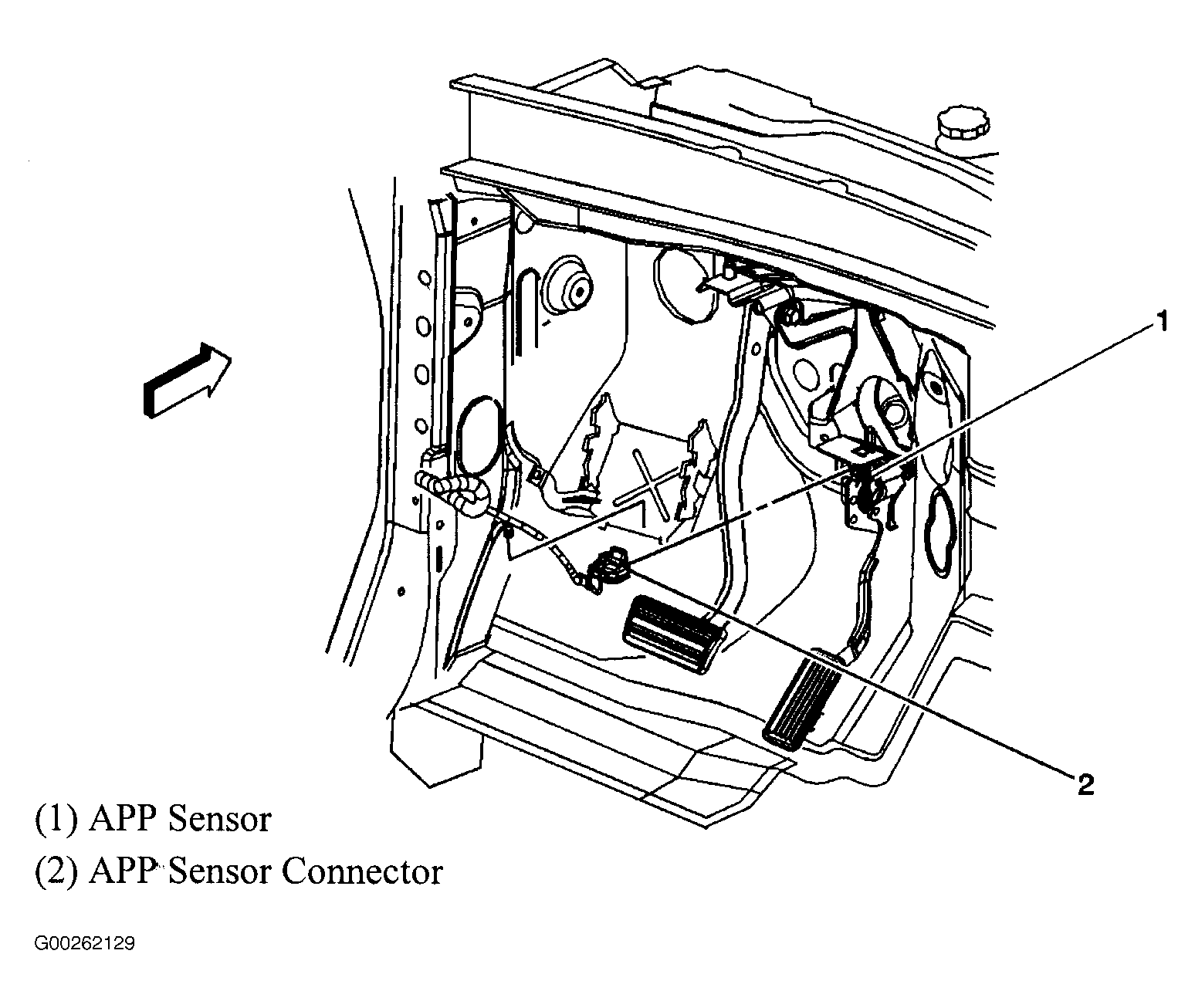

| APP Sensor | Below left side of dash. See Figure . |
| APP Sensor Connector | At APP sensor. See Figure . |
| Camshaft Position (CMP) Sensor Connector | At top center rear of engine, near engine oil pressure sensor. See Figure . |

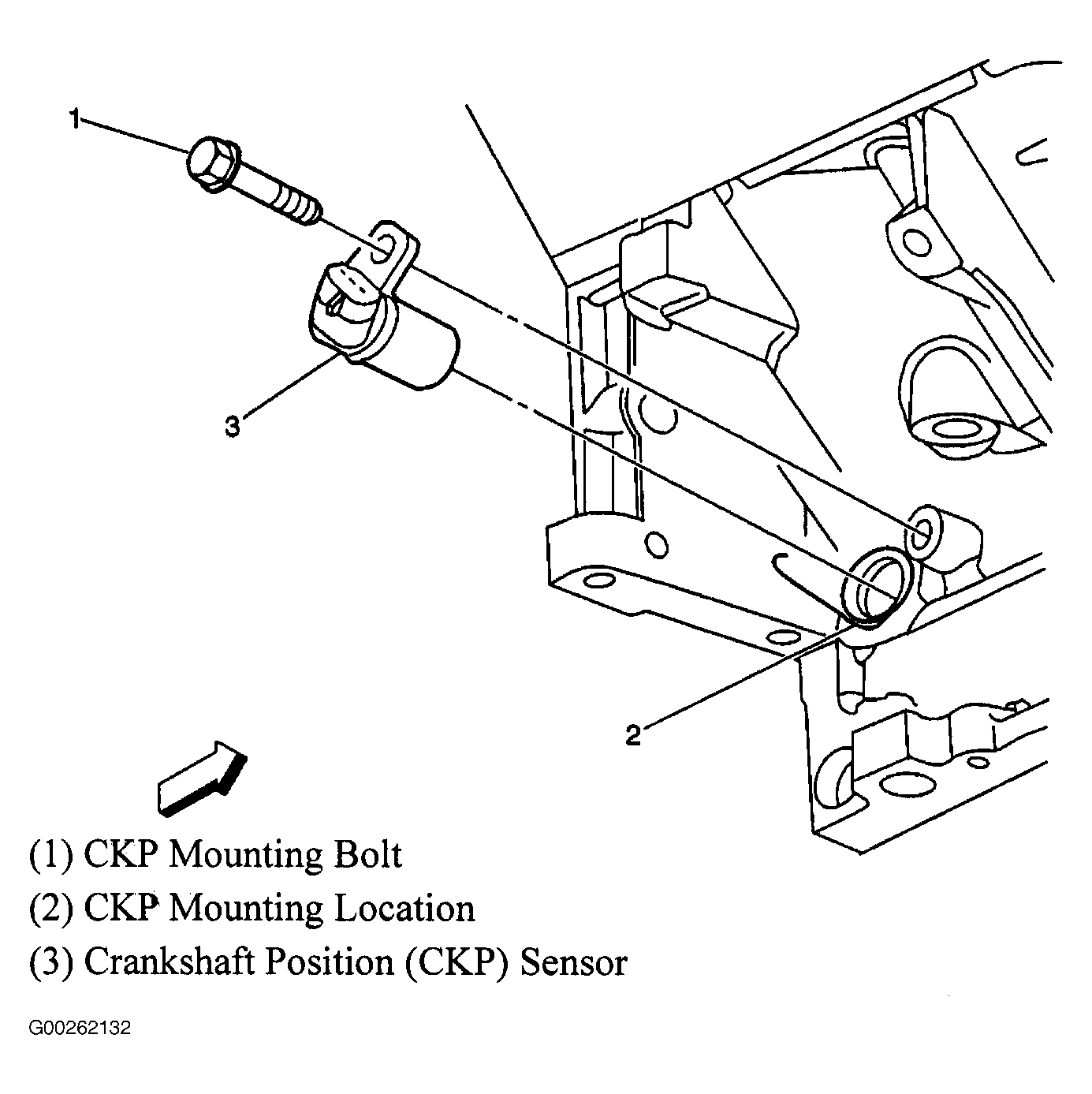

| Crankshaft Position (CKP) Sensor | At lower right rear side of engine block, behind starter solenoid. See Figure . |
| Crankshaft Position (CKP) Sensor Connector | At sensor. See Figure . |
| Engine Coolant Temperature (ECT) Sensor | Near rear of engine block, below exhaust manifold. See Figure . |
| Engine Oil Pressure (EOP) Sensor Connector | At left rear of engine. See Figure . |

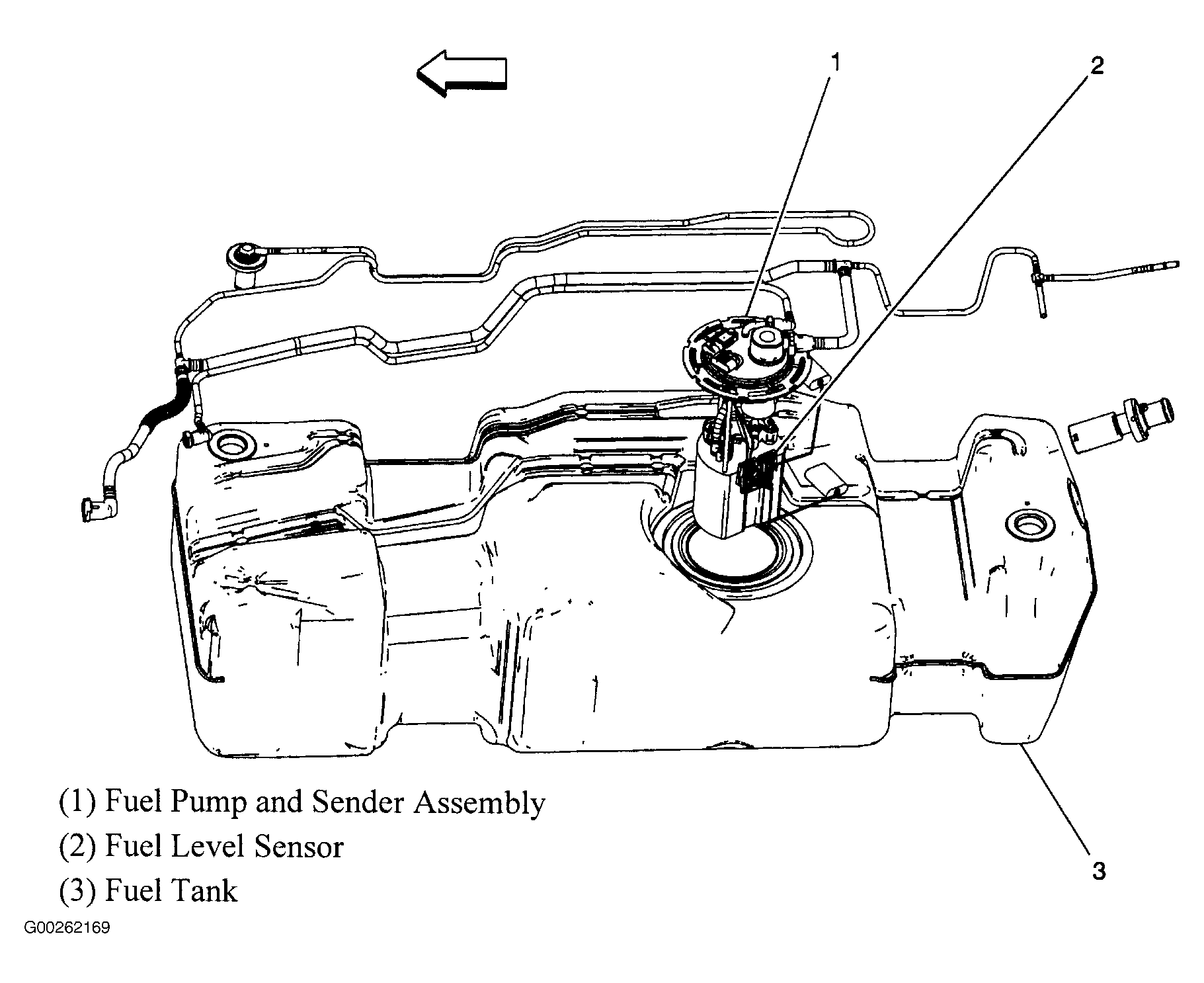

| Fuel Level Sensor | At top of fuel tank. See Figure . |
| Fuel Tank Pressure (FTP) Sensor | On fuel tank, integral to fuel pump & sender assembly. See Figure . |
| Heated Oxygen Sensor (HO2S)-Bank 1 Sensor 1 | In left exhaust pipe, before catalytic converter. See Figure . |
| Heated Oxygen Sensor (HO2S)-Bank 1 Sensor 2 | In left exhaust pipe, after catalytic converter. See Figure . |
| Heated Oxygen Sensor (HO2S)-Bank 2 Sensor 1 | In right exhaust pipe, before catalytic converter. See Figure . |
| Heated Oxygen Sensor (HO2S)-Bank 2 Sensor 2 | In right exhaust pipe, after catalytic converter. See Figure . |
| Inflatable Restraint Electronic Frontal Sensor (EFS) (2) | At front left/right of engine compartment. See Figure . |
| Inflatable Restraint Front End Discriminating Sensor - Left | On left front of vehicle, by core support. See Figure . |
| Inflatable Restraint Front End Discriminating Sensor - Right | On right front of vehicle, by core support. See Figure . |
| Intake Air Temperature (IAT)/Mass Airflow (MAF) Sensor | In air induction tube. See Figure . |

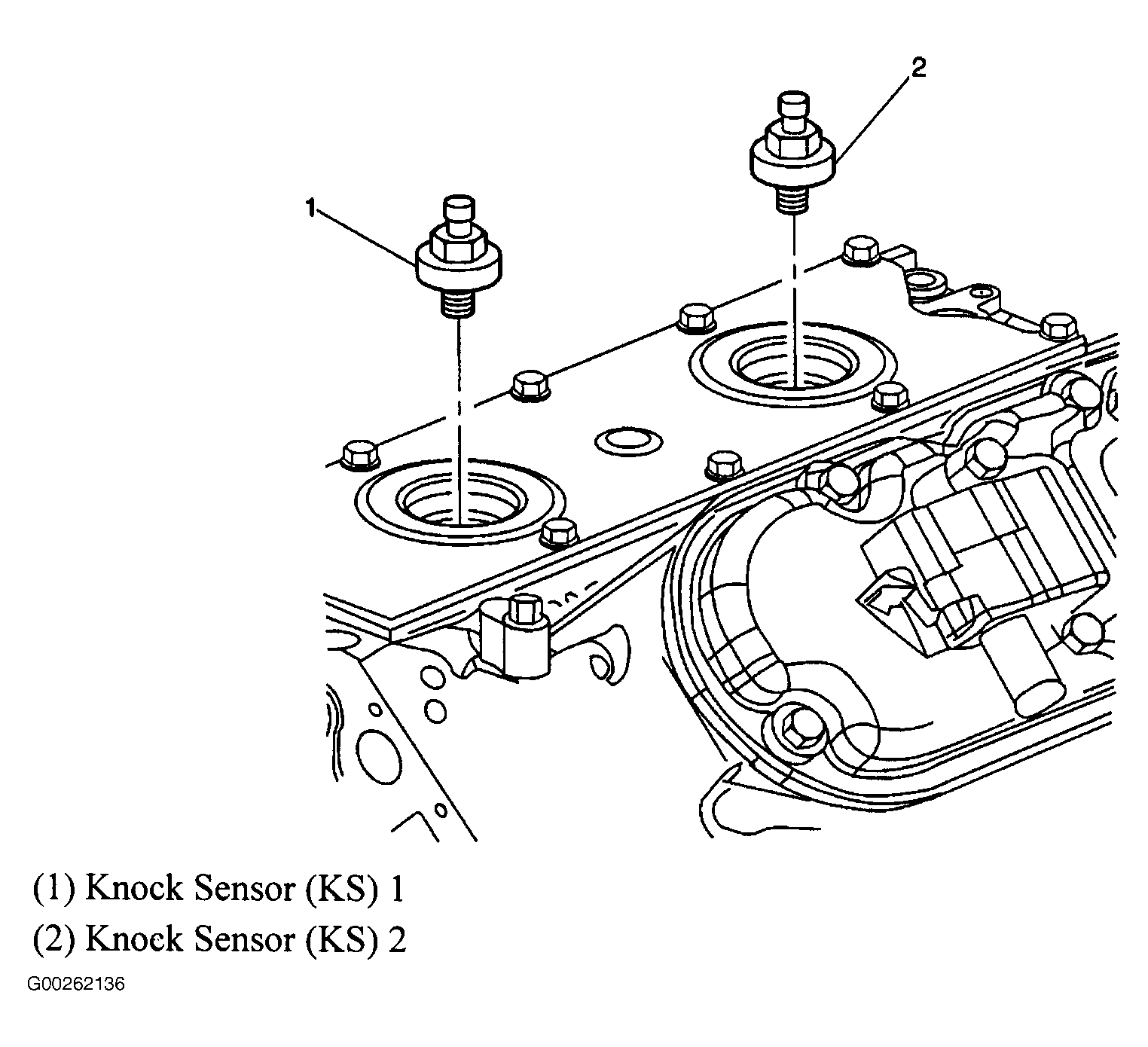

| Knock Sensor (KS) 1 | In valley, under intake manifold. See Figure . |
| Knock Sensor (KS) 2 | In valley, under intake manifold. See Figure . |
| Knock Sensor Pigtail | At top of engine. See Figure . |
| Manifold Absolute Pressure (MAP) Sensor | On top rear of engine, on intake manifold. See Figure . |
| Passlock Sensor | Part of ignition lock cylinder, in steering column assembly. See Figure . |
| Vehicle Speed Sensor (VSS) | On rear of transfer case assembly. See Figure . |

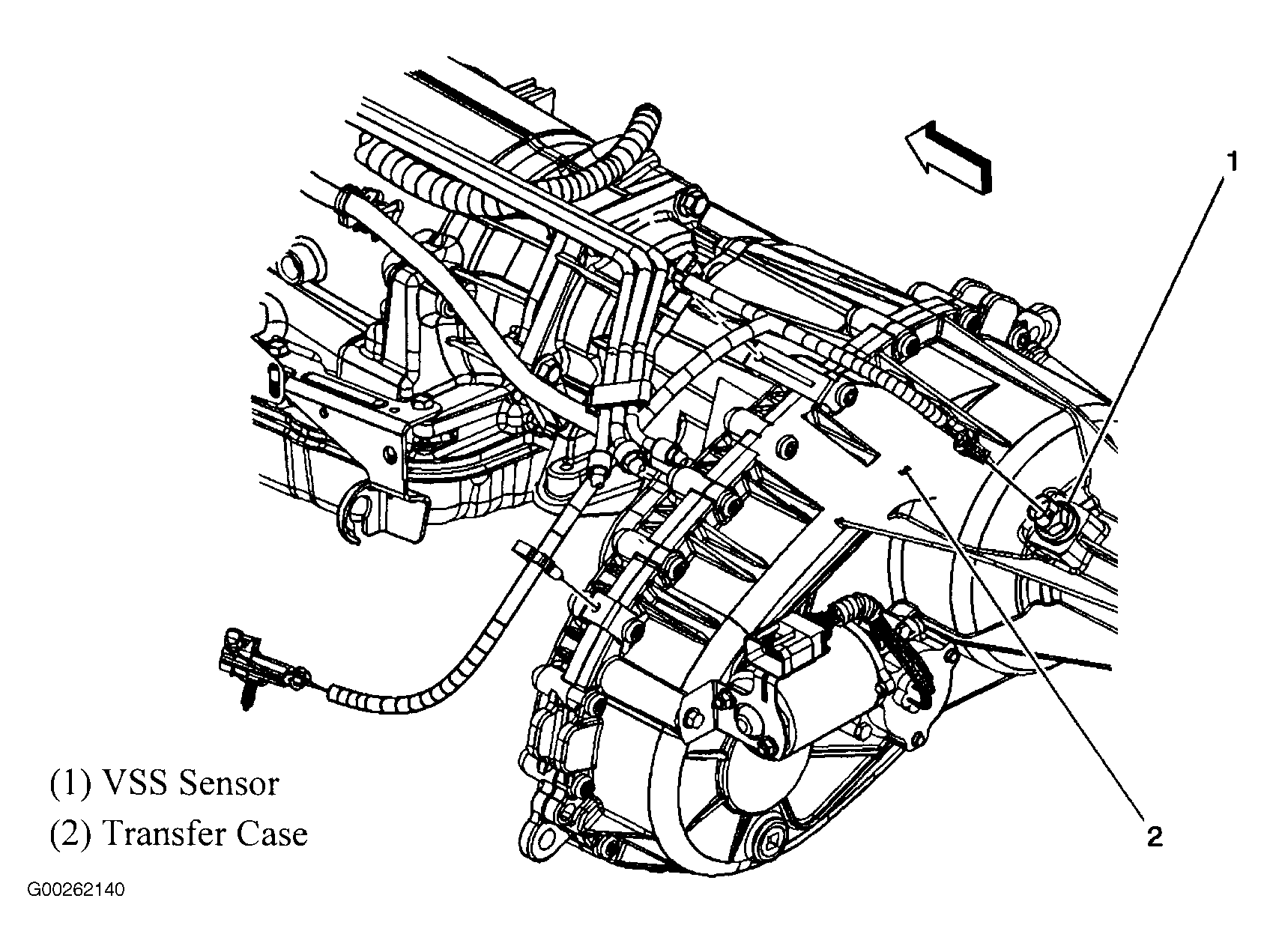

| VSS Sensor | At rear of transfer case. See Figure . |
| Washer Fluid Level Sensor | In washer fluid reservoir. See Figure . |
| Wheel Speed Sensor (WSS) - LF (RF Similar) | On front wheel hub assembly. See Figure . |
| Wheel Speed Sensor (WSS) - LR (RR Similar) | On rear wheel hub assembly. See Figure . |
