Computer/Integrating Systems Component Views

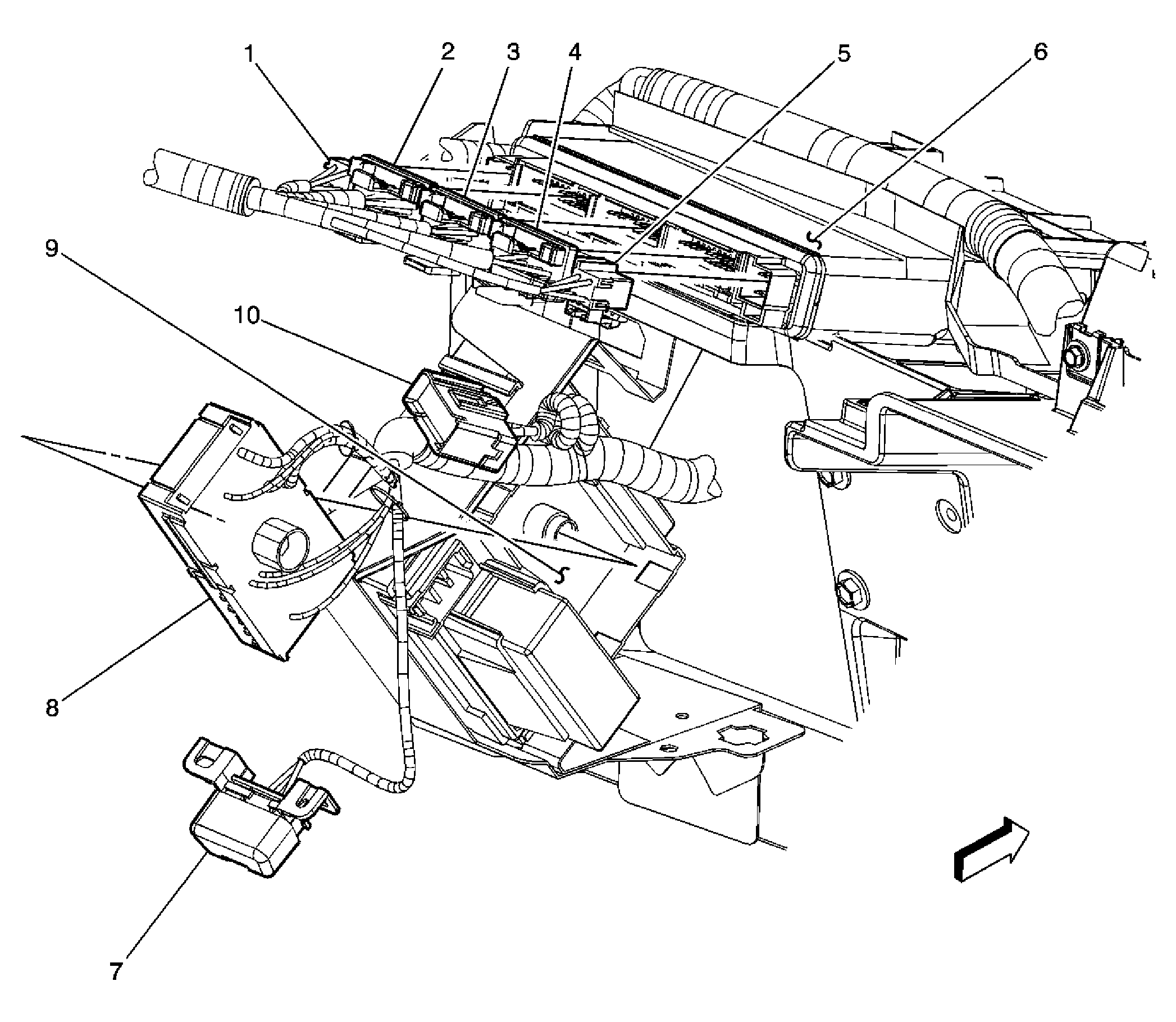

Fig 1: Left Side of I/P
GM1482831Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 BCM-C1
2 BCM-C2
3 BCM-C4
4 BCM-C3
5 BCM-C5
6 Body Control Module (BCM)
7 Data Link Connector (DLC)
8 Fuse Block-IP-C1
9 Fuse Block-IP
10 Splice Pack SP205
