Installation Procedure

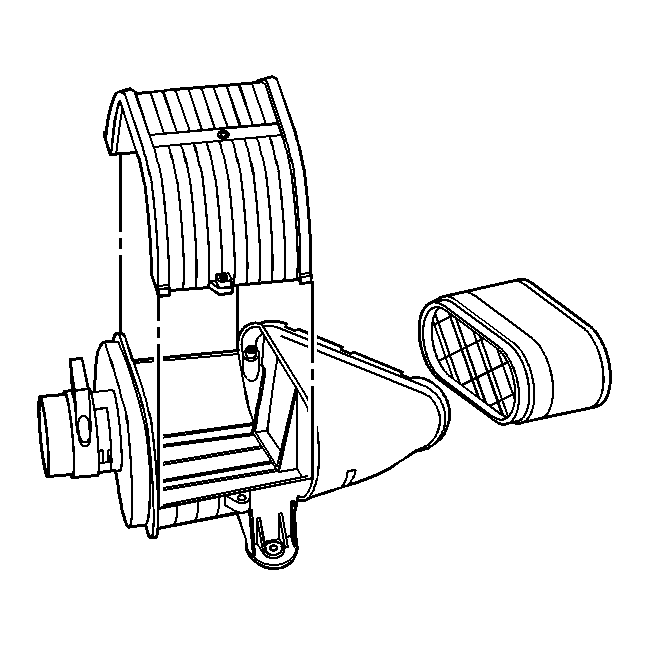

    Fig 1: Air Filter/Cleaner Element
    GM863113Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter element into the air cleaner housing.
  2. Rotate and install the top cover to the air cleaner housing.
  3. Insert the fasteners to secure the top cover.
