Automatic Trans
>>
Shift Lock Control System
>>
Schematic And Routing Diagrams
>>
Automatic Transmission Shift Lock Control Schematics
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Automatic Transmission Shift Lock Control Schematics

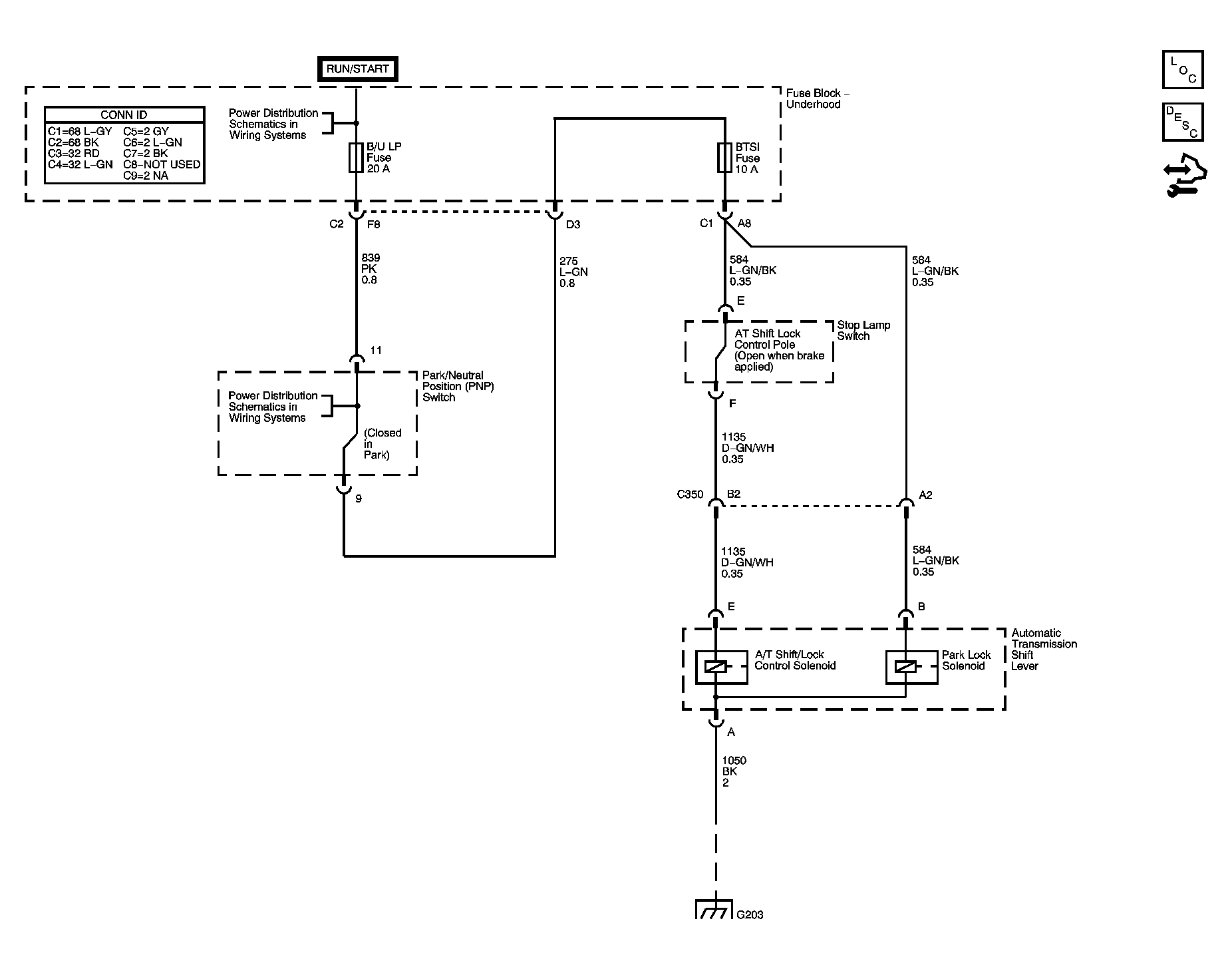

Fig 1: Automatic Transmission Shift Lock Control Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
