Vehicle Speed Sensor: Diagrams

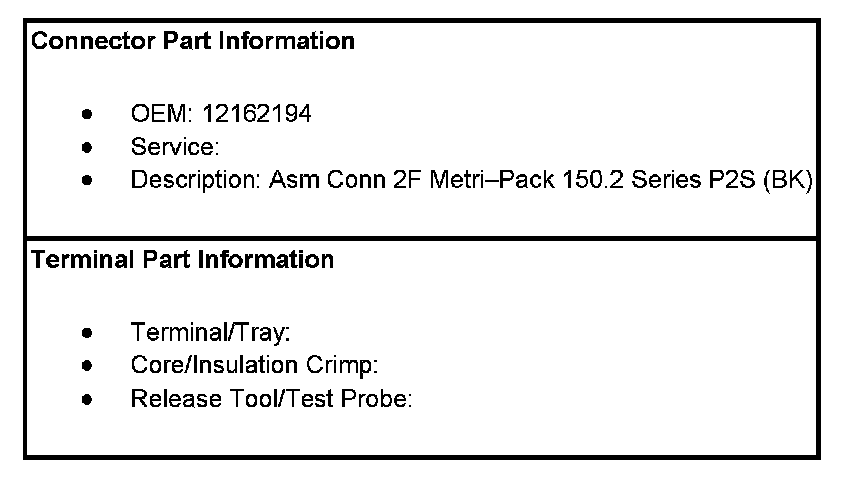

Automatic Transmission Related Connector End Views

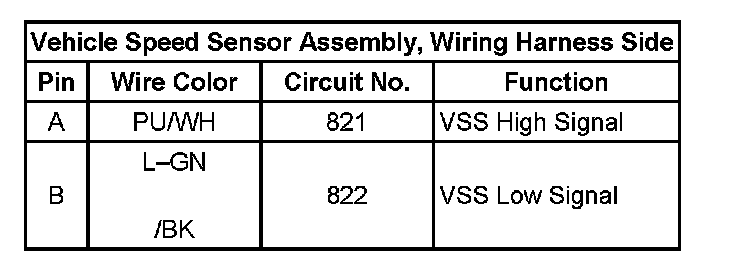

Vehicle Speed Sensor Assembly, Wiring Harness Side:

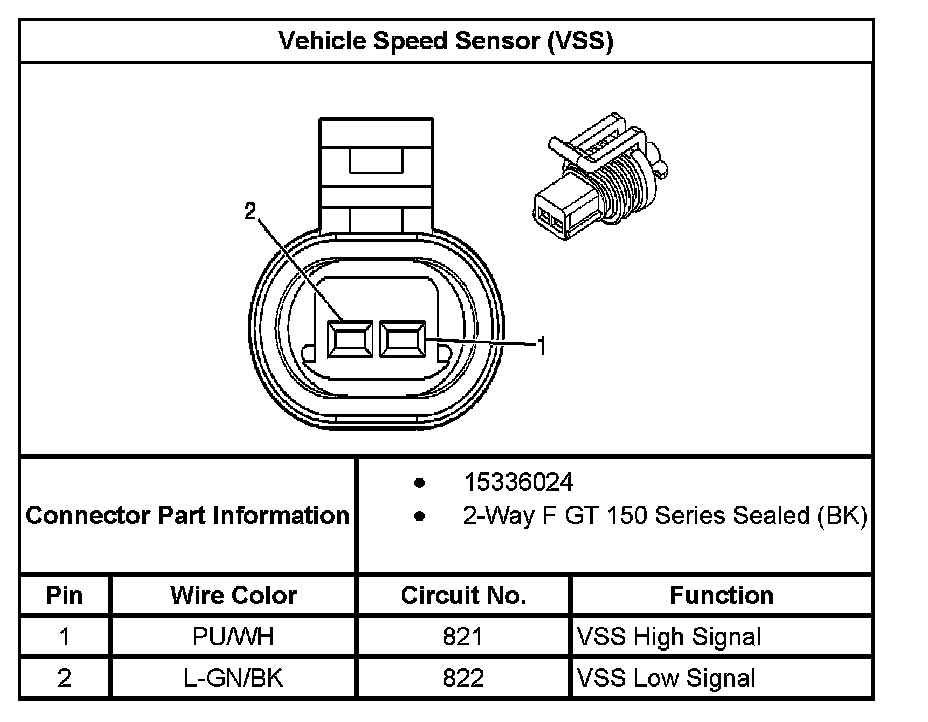

Vehicle Speed Sensor (VSS):
