Air Bag Control Module

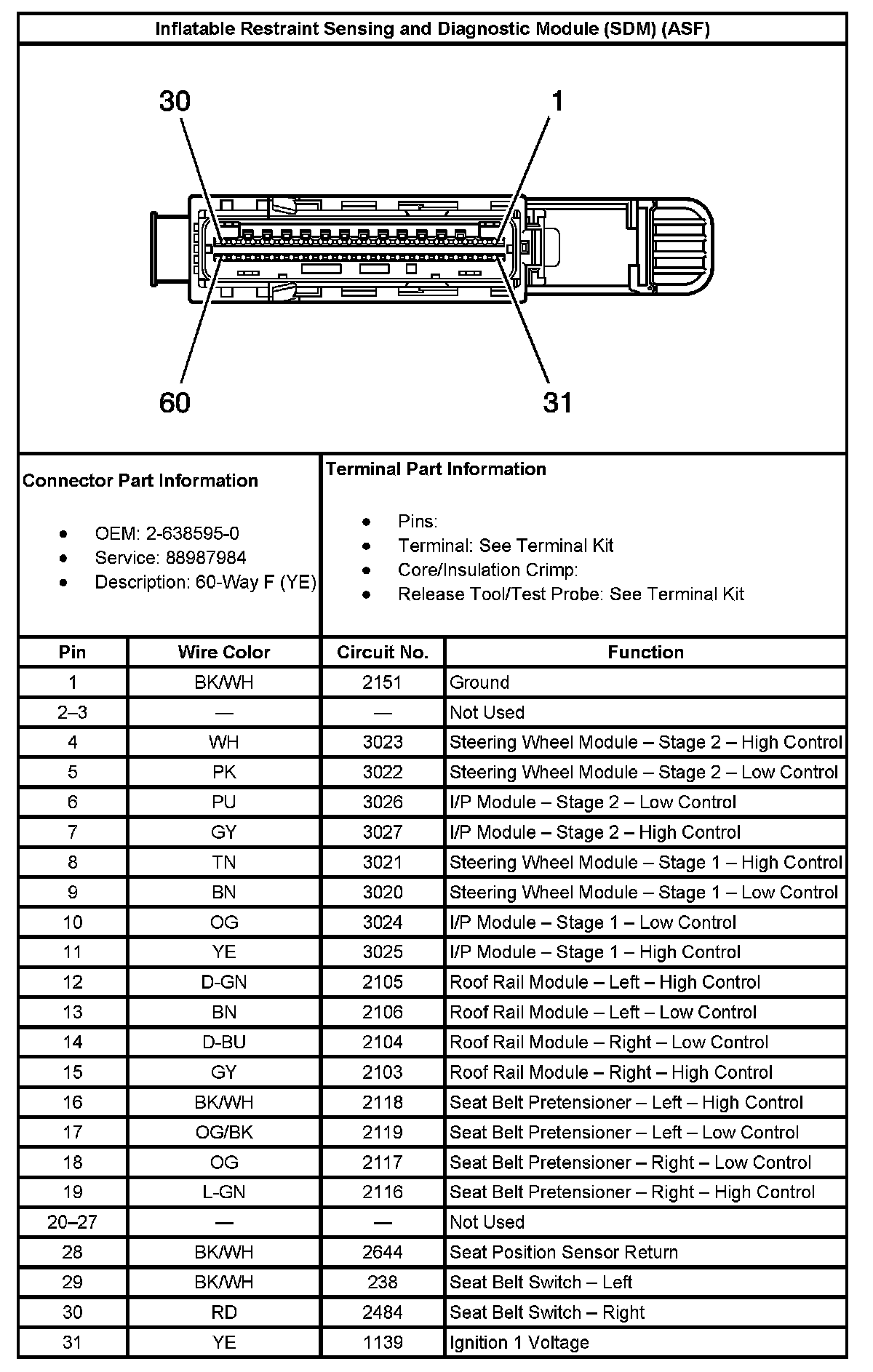

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code ASF) (Part 1):

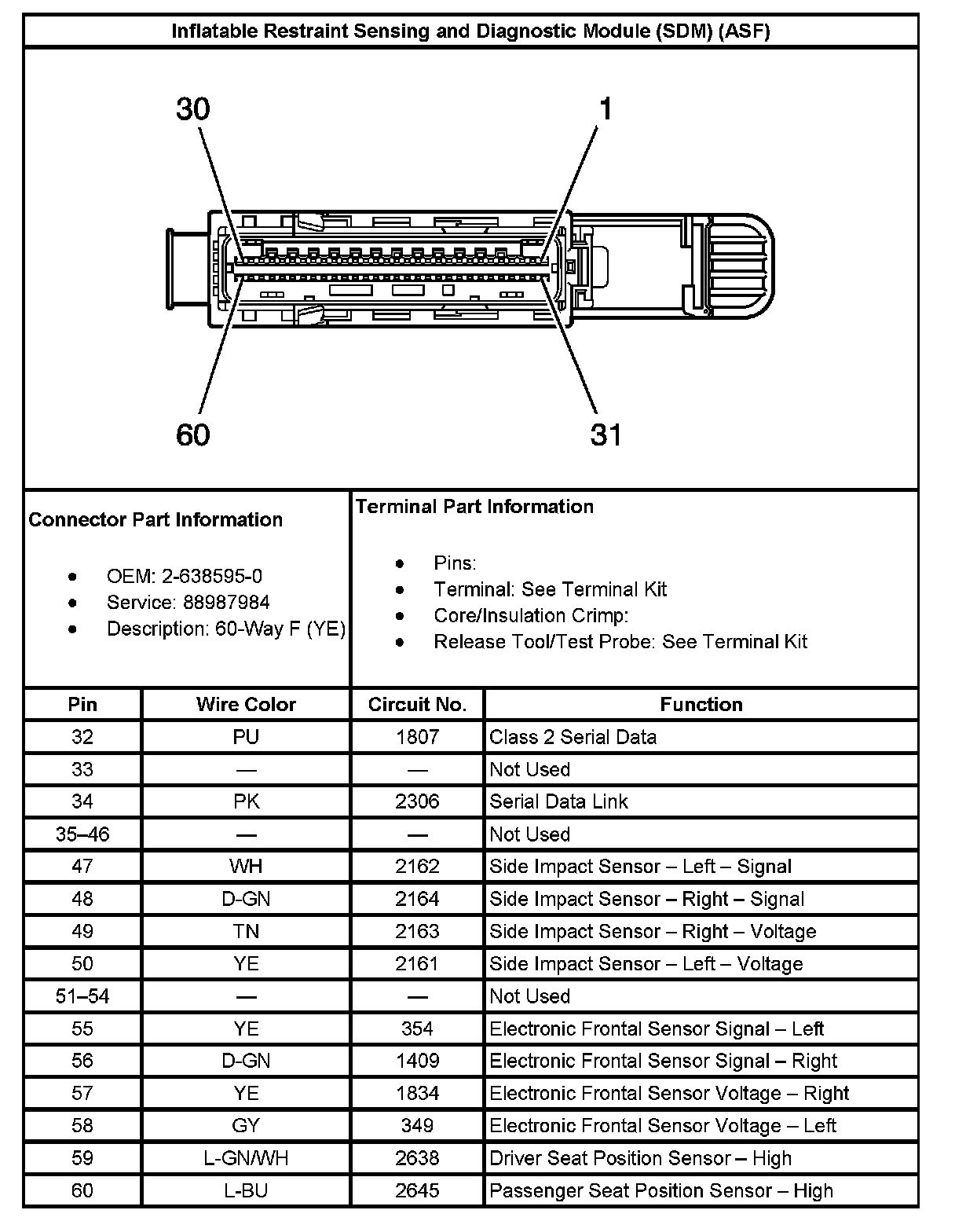

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code ASF) (Part 2):



Inflatable Restraint Sensing And Diagnostic Module (SDM) (Without RPO Code ASF) (Part 1):

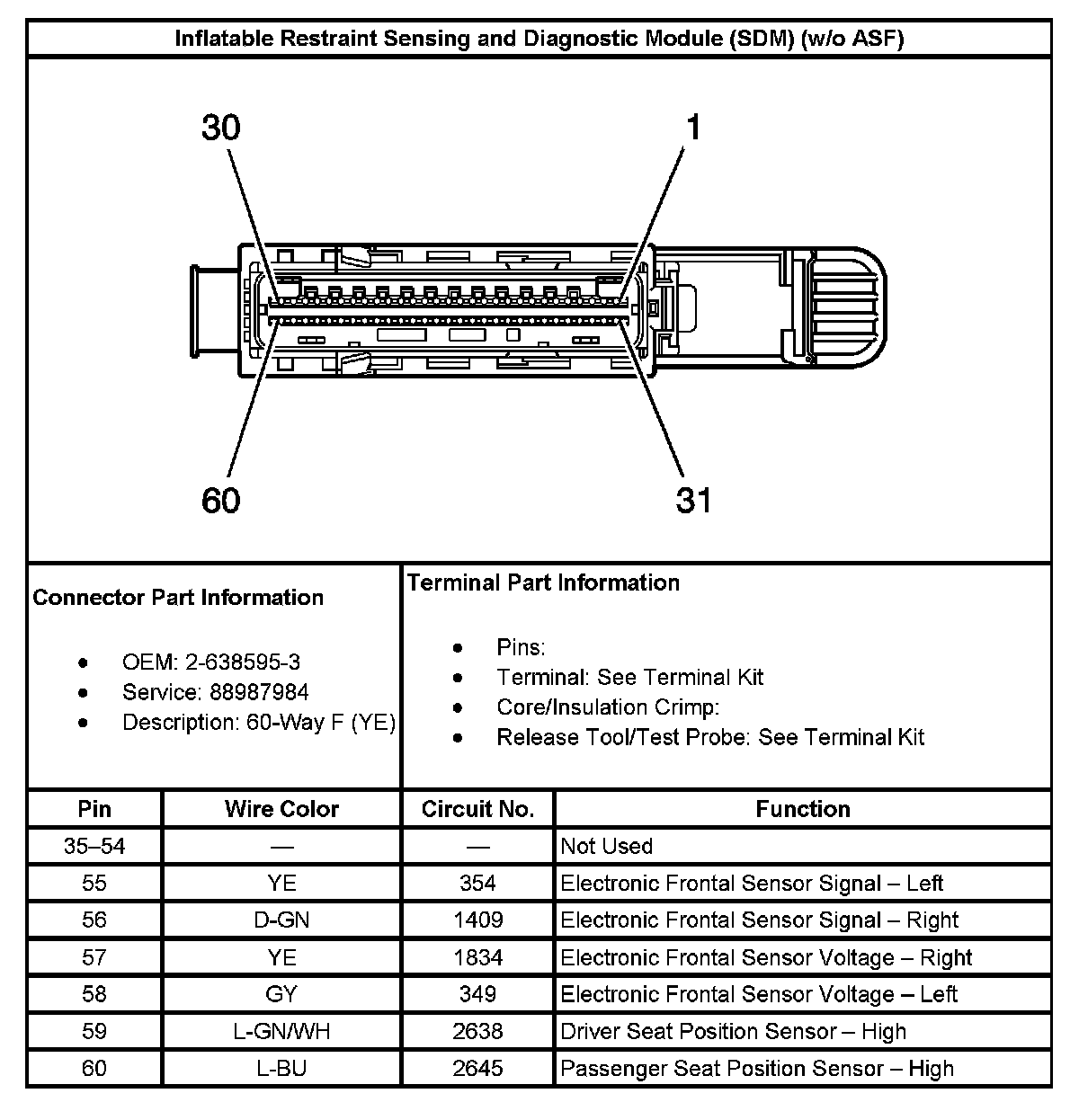

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Without RPO Code ASF) (Part 2):
