Amplifier, Sound System

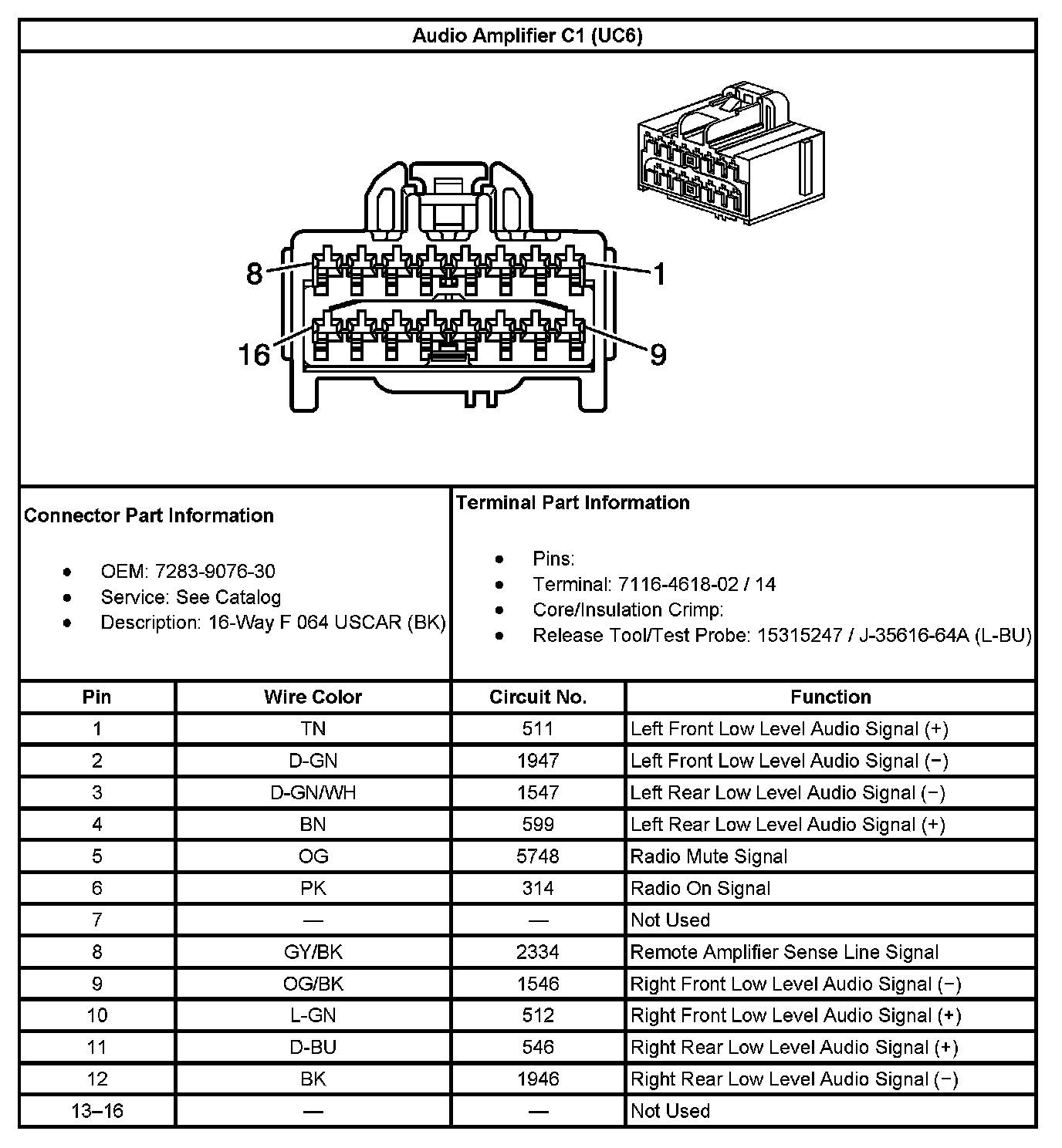

Audio Amplifier C1 (With RPO Code UC6):

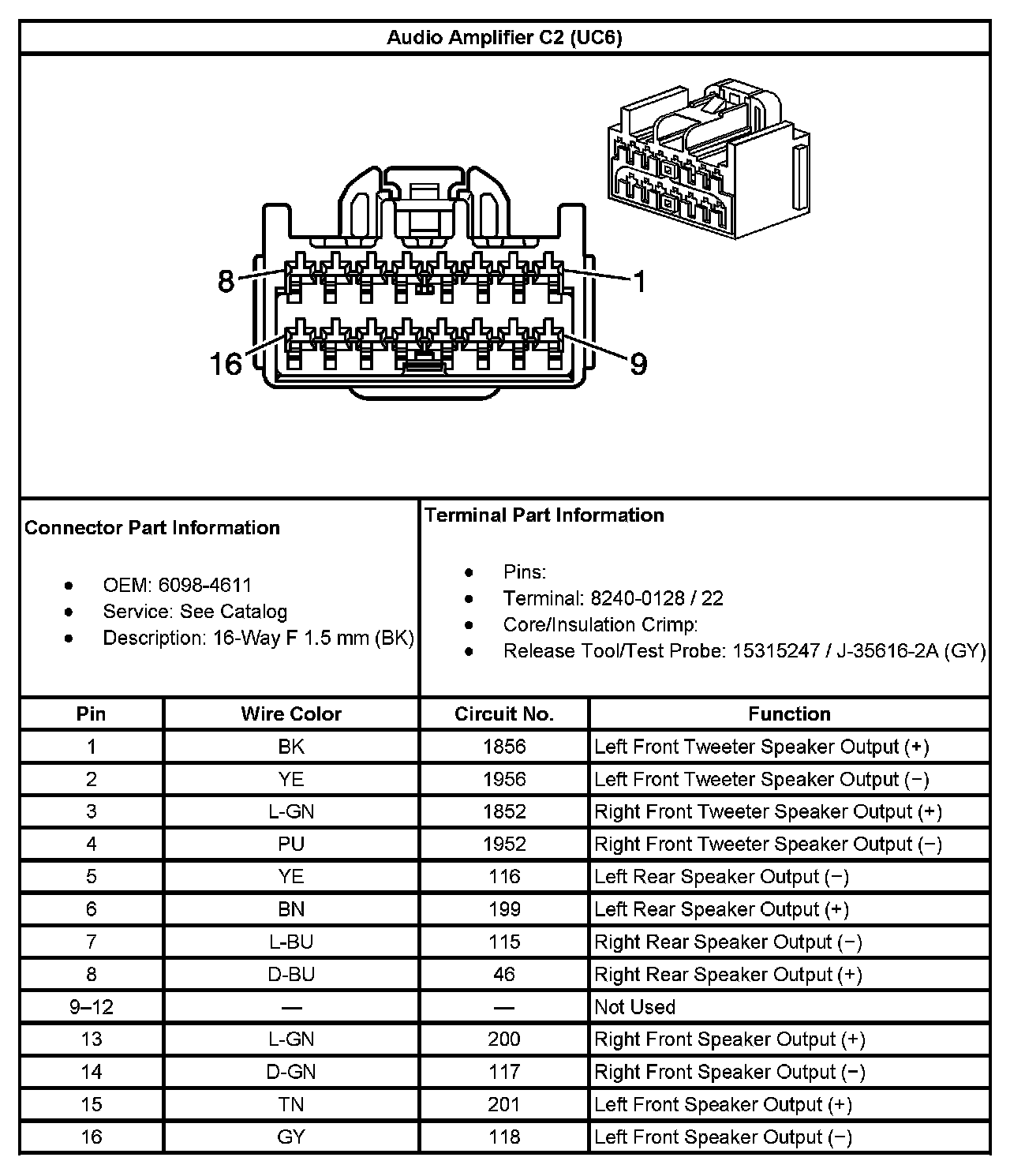

Audio Amplifier C2 (With RPO Code UC6):

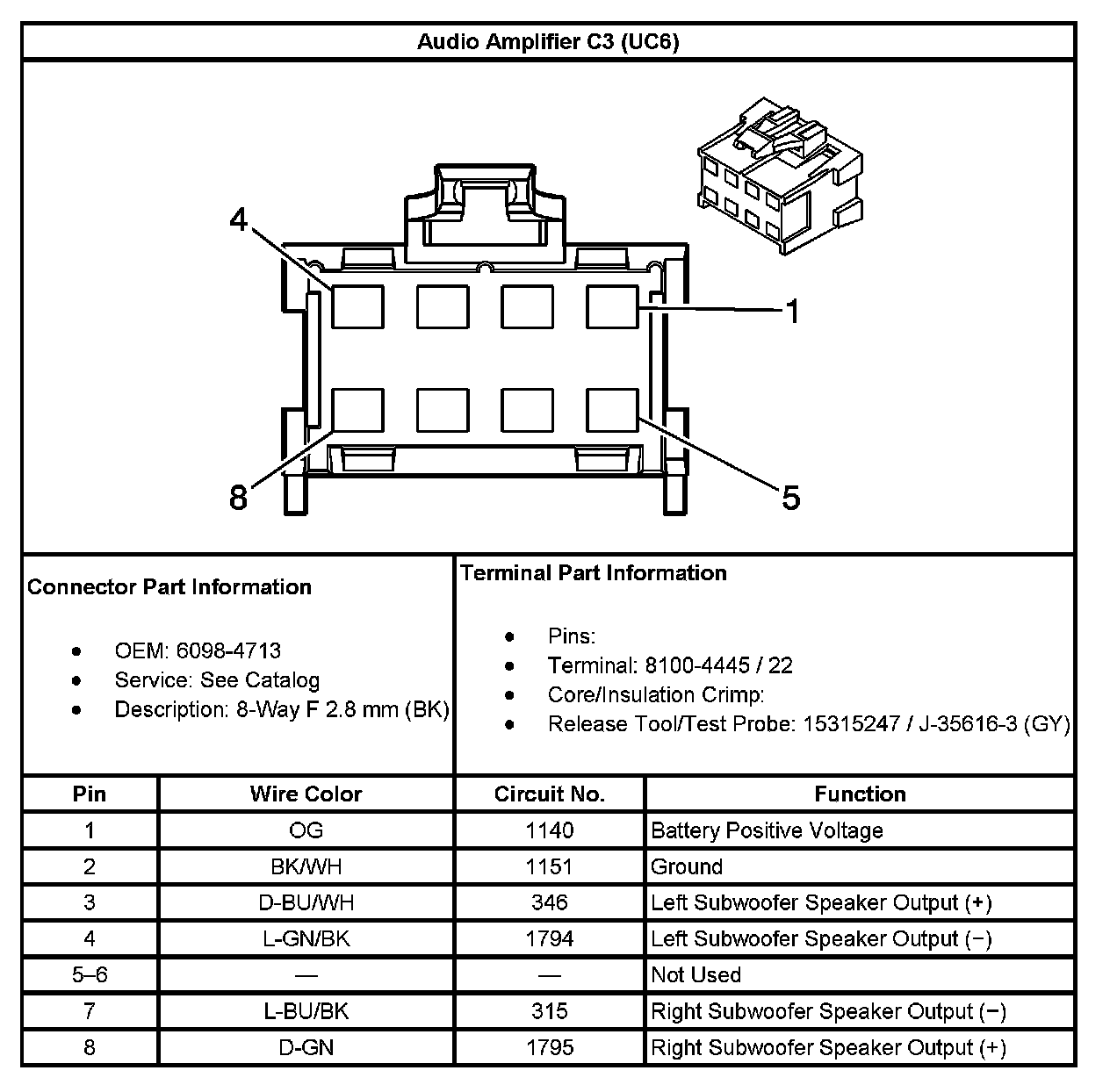

Audio Amplifier C3 (With RPO Code UC6):
