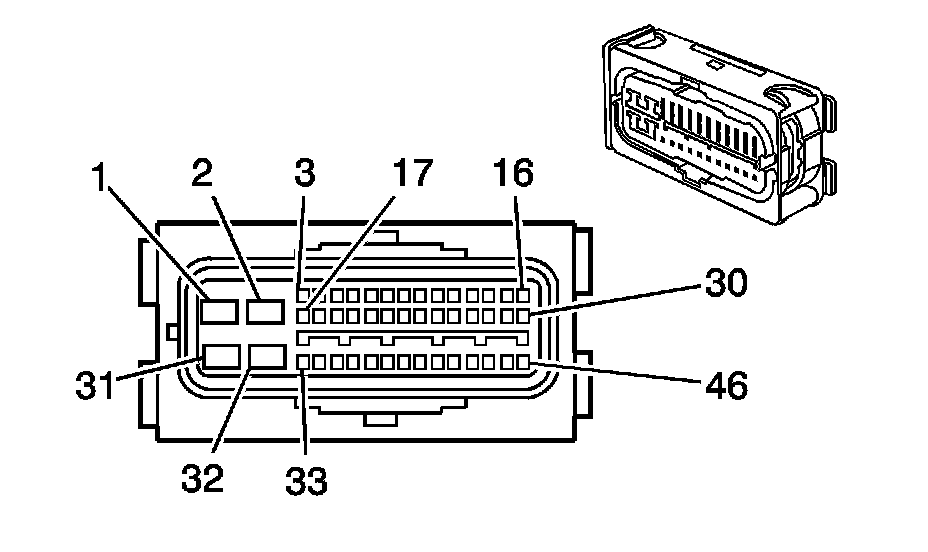

Electronic Brake Control Module (EBCM) C2
Electronic Brake Control Module
(EBCM) C2

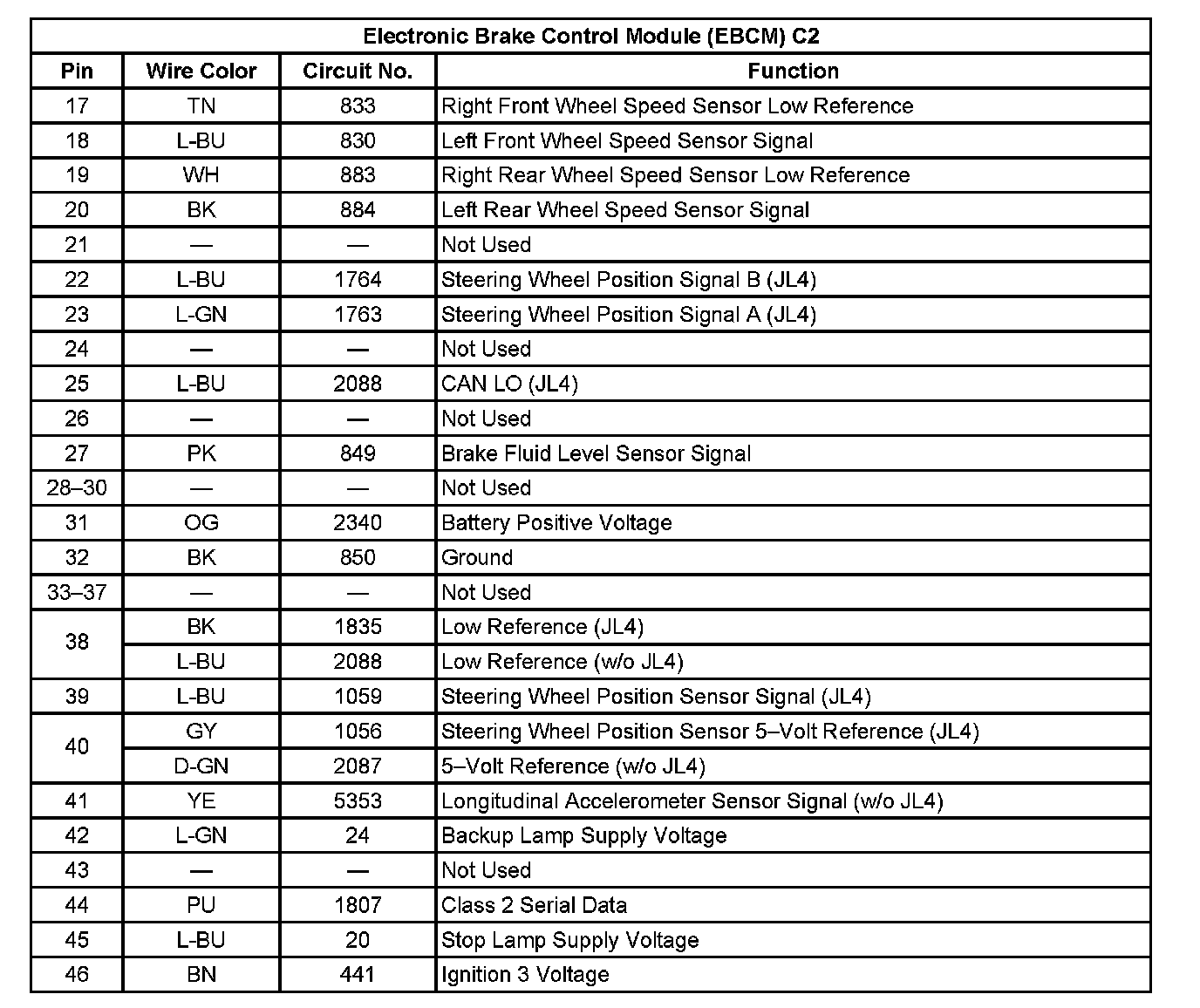

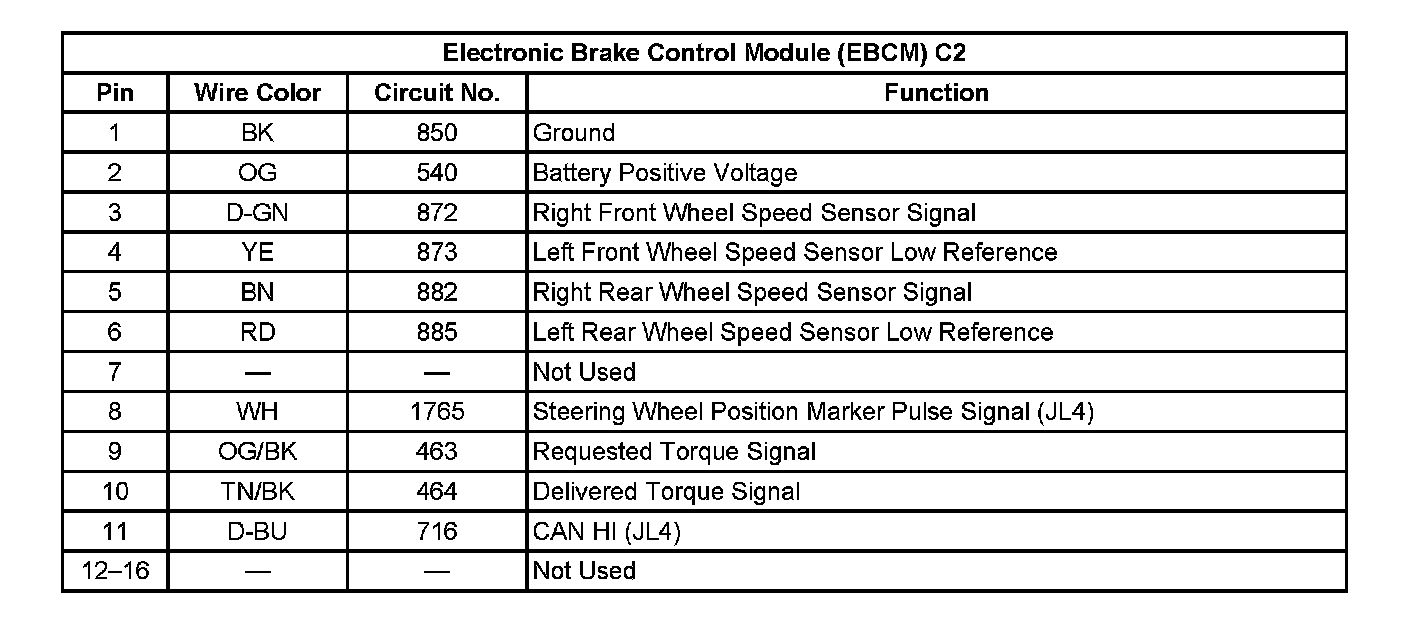

Electronic Brake Control Module (EBCM) C2:
Electronic Brake Control Module (EBCM) C2:
