Powertrain Control Module (PCM) C3 With RPO Code M30

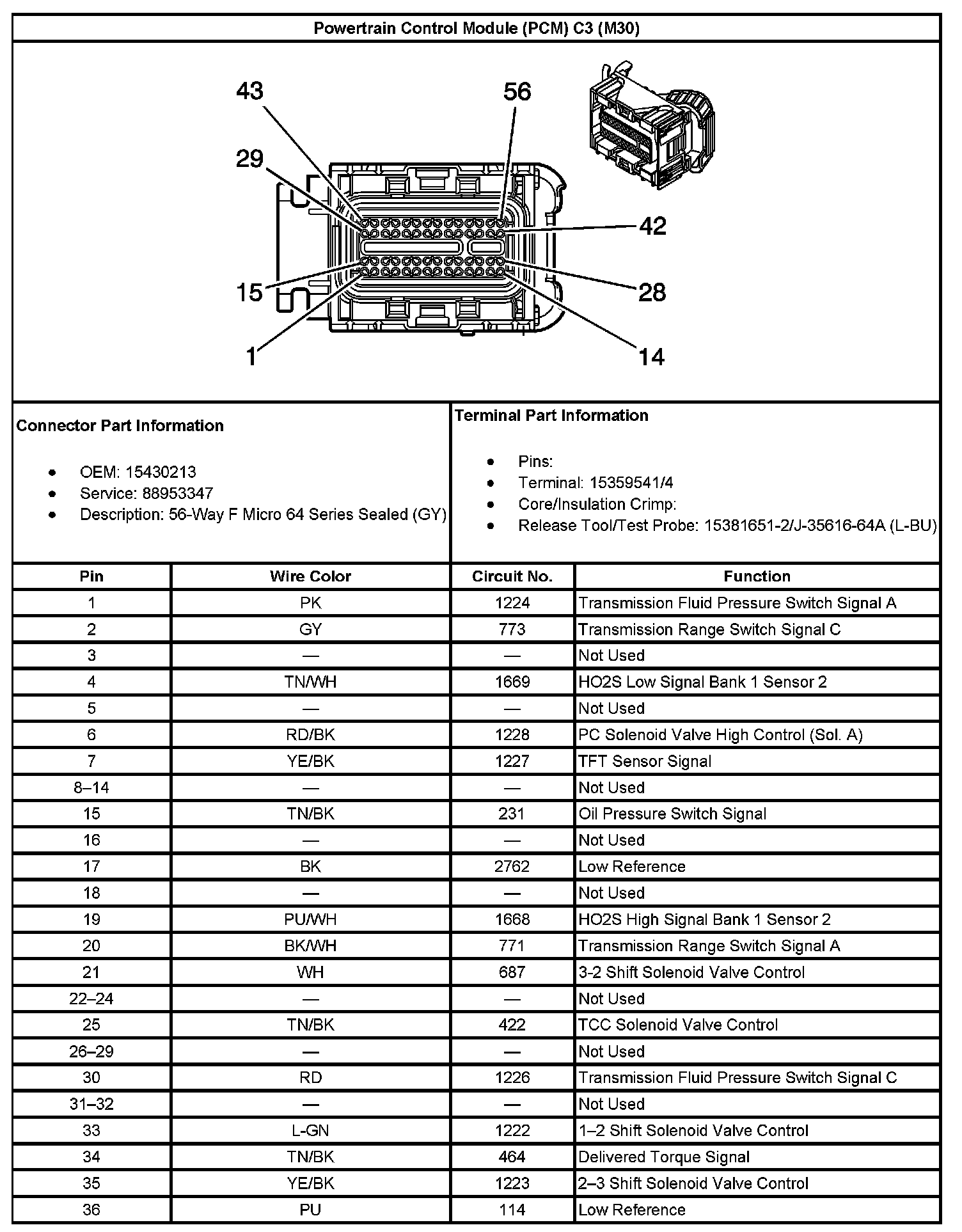

Powertrain Control Module (PCM) C3 (With RPO Code M30) (Part 1):

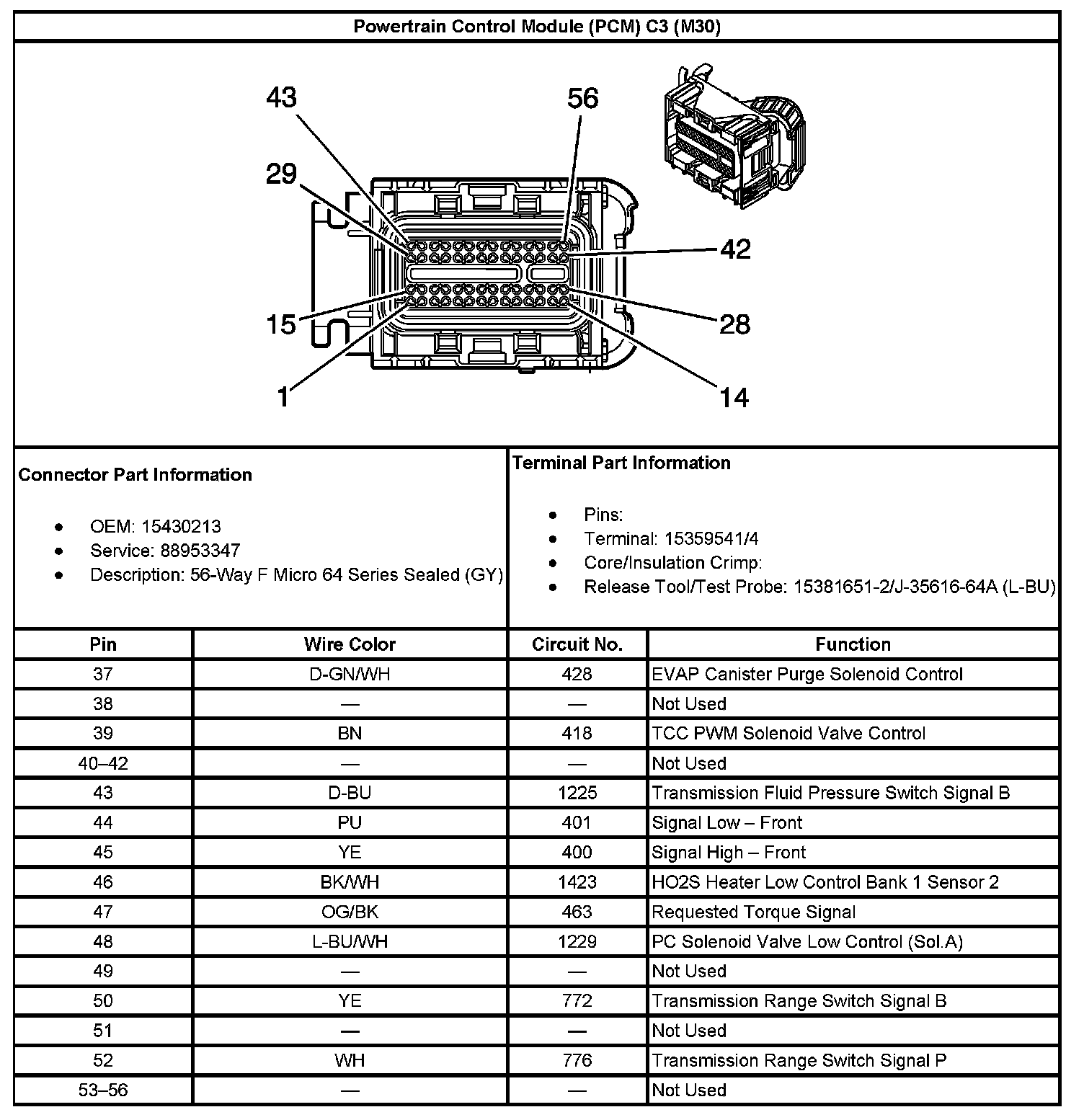

Powertrain Control Module (PCM) C3 (With RPO Code M30) (Part 2):
