Power Window Switch

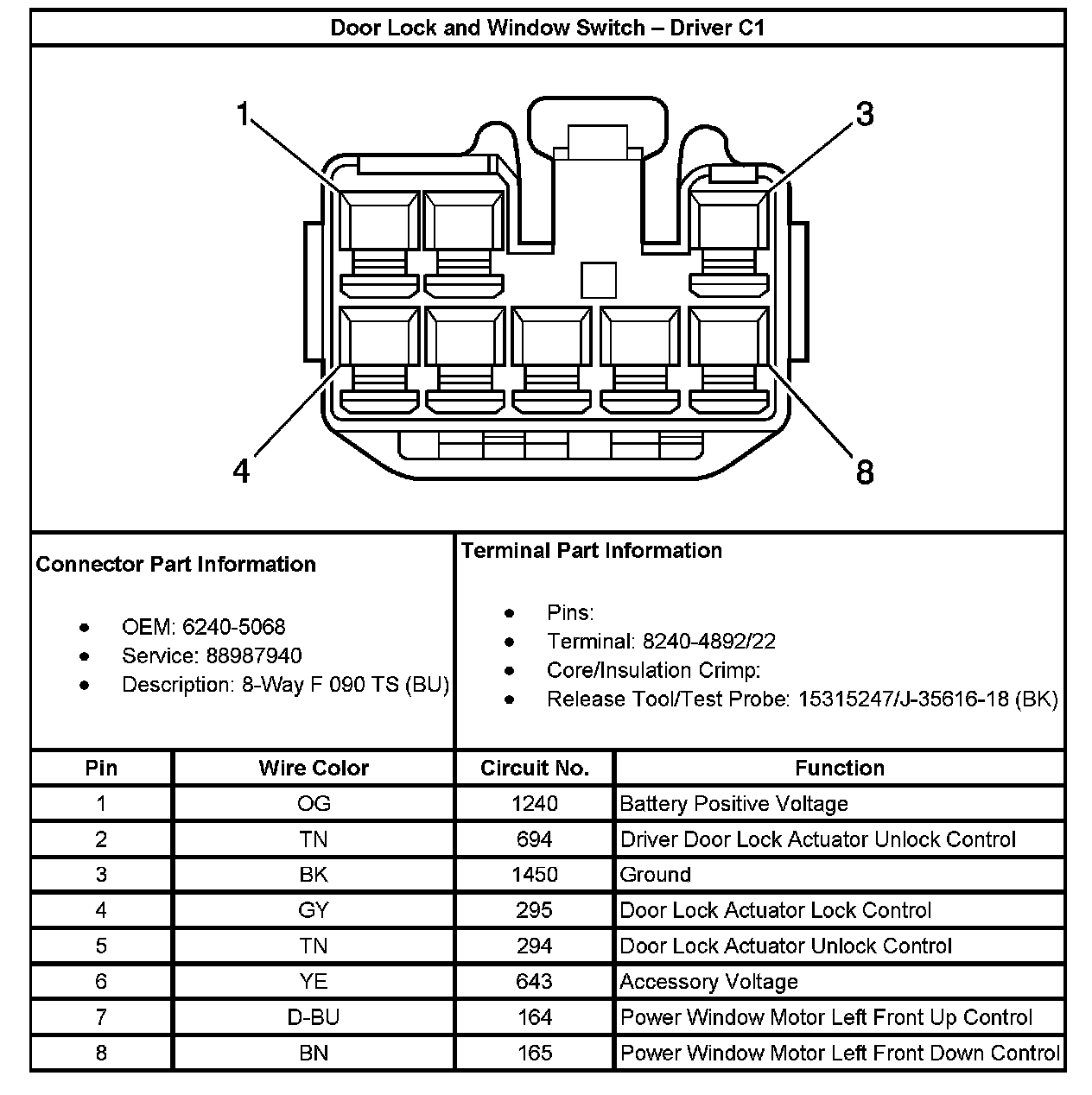

Door Lock And Window Switch - Driver C1:

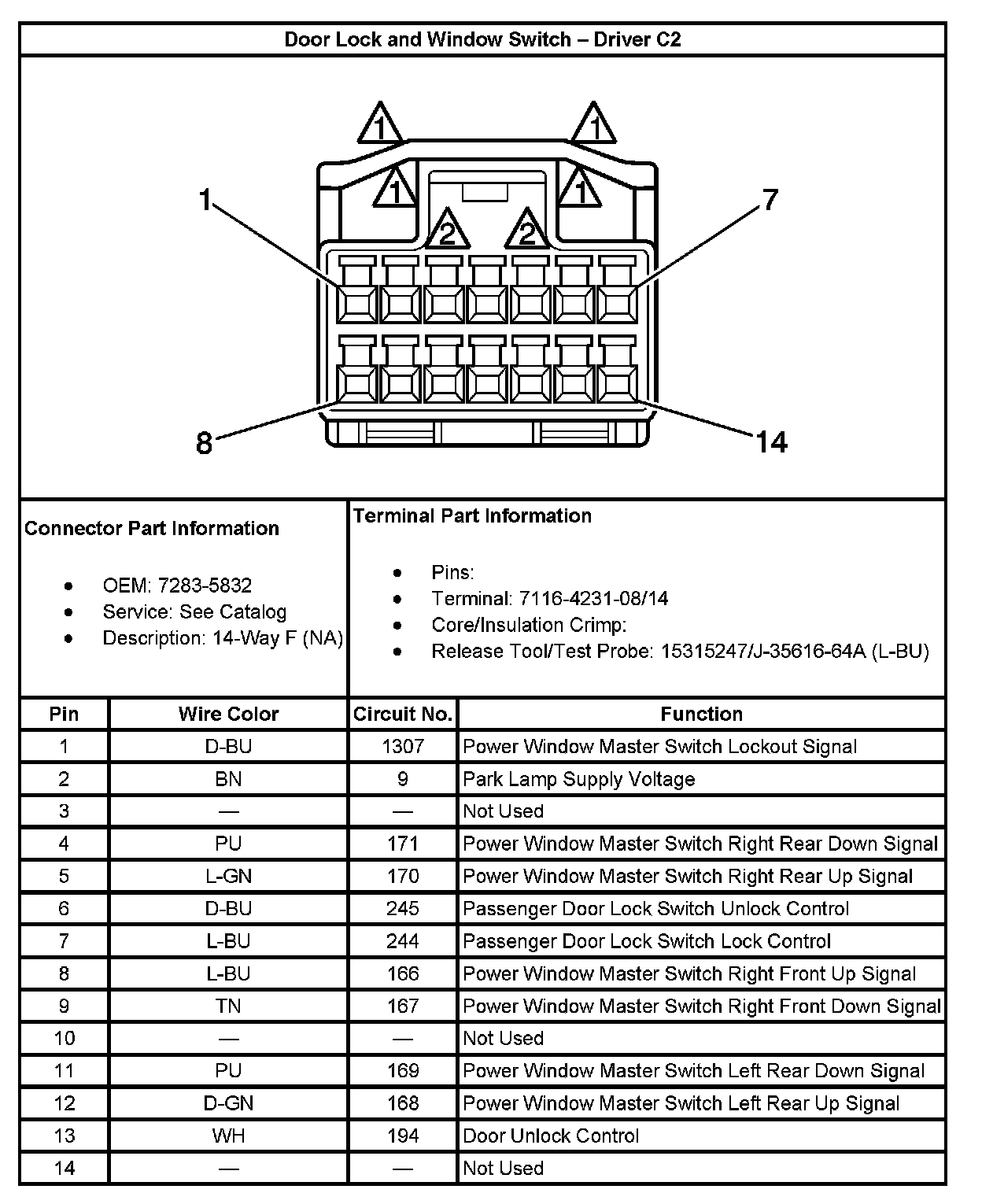

Door Lock And Window Switch - Driver C2:

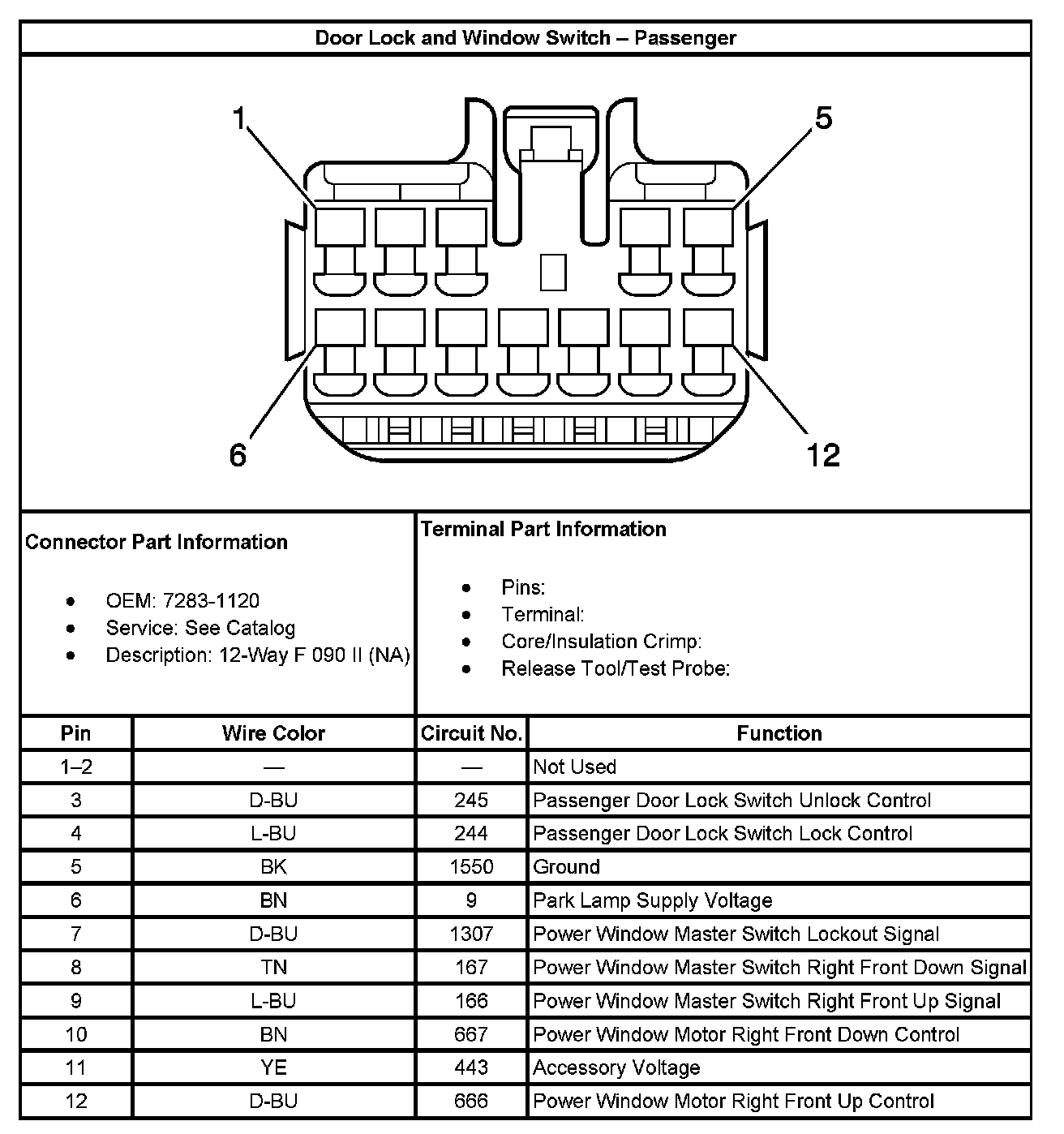

Door Lock And Window Switch - Passenger:

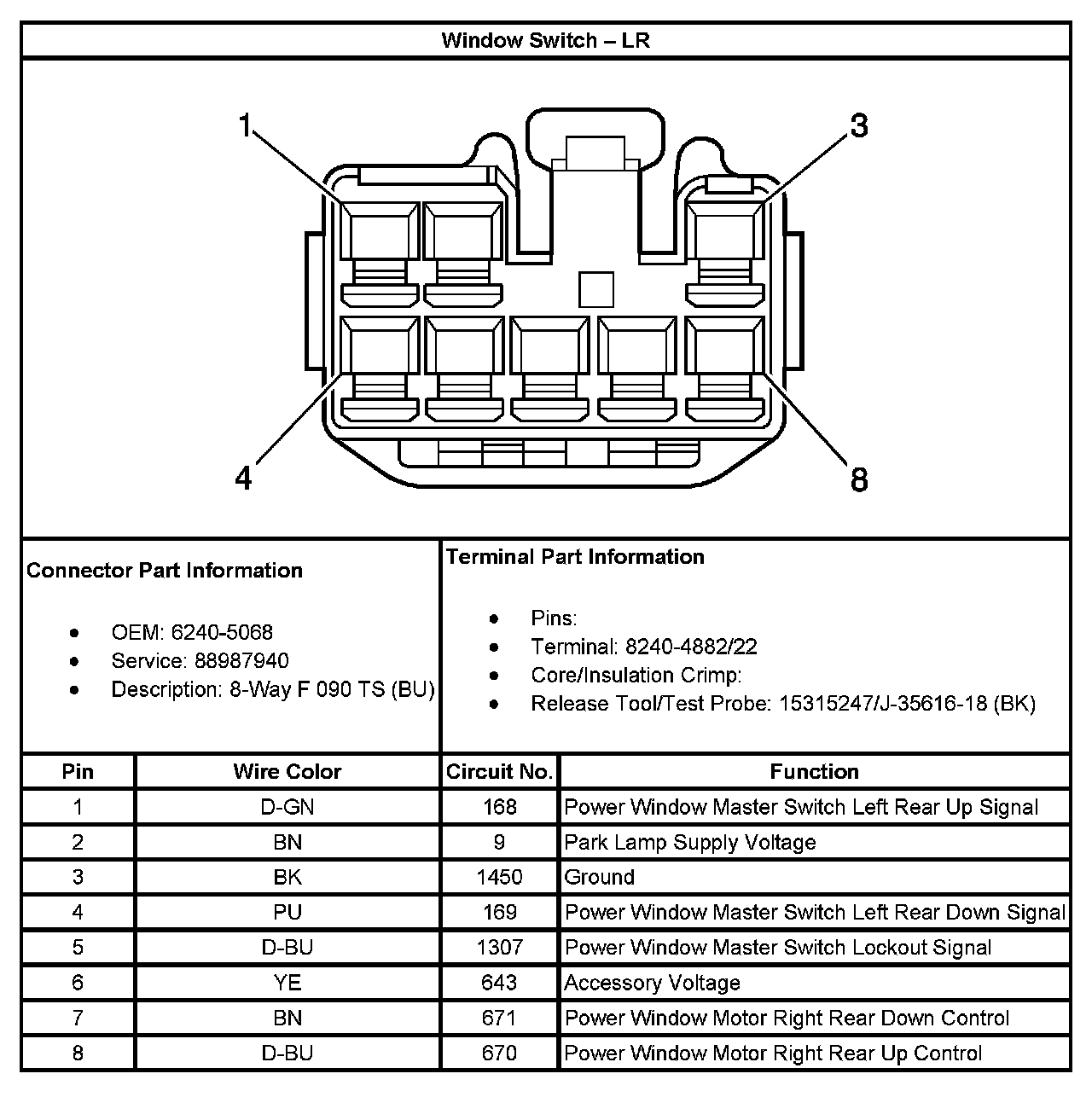

Window Switch - LR:

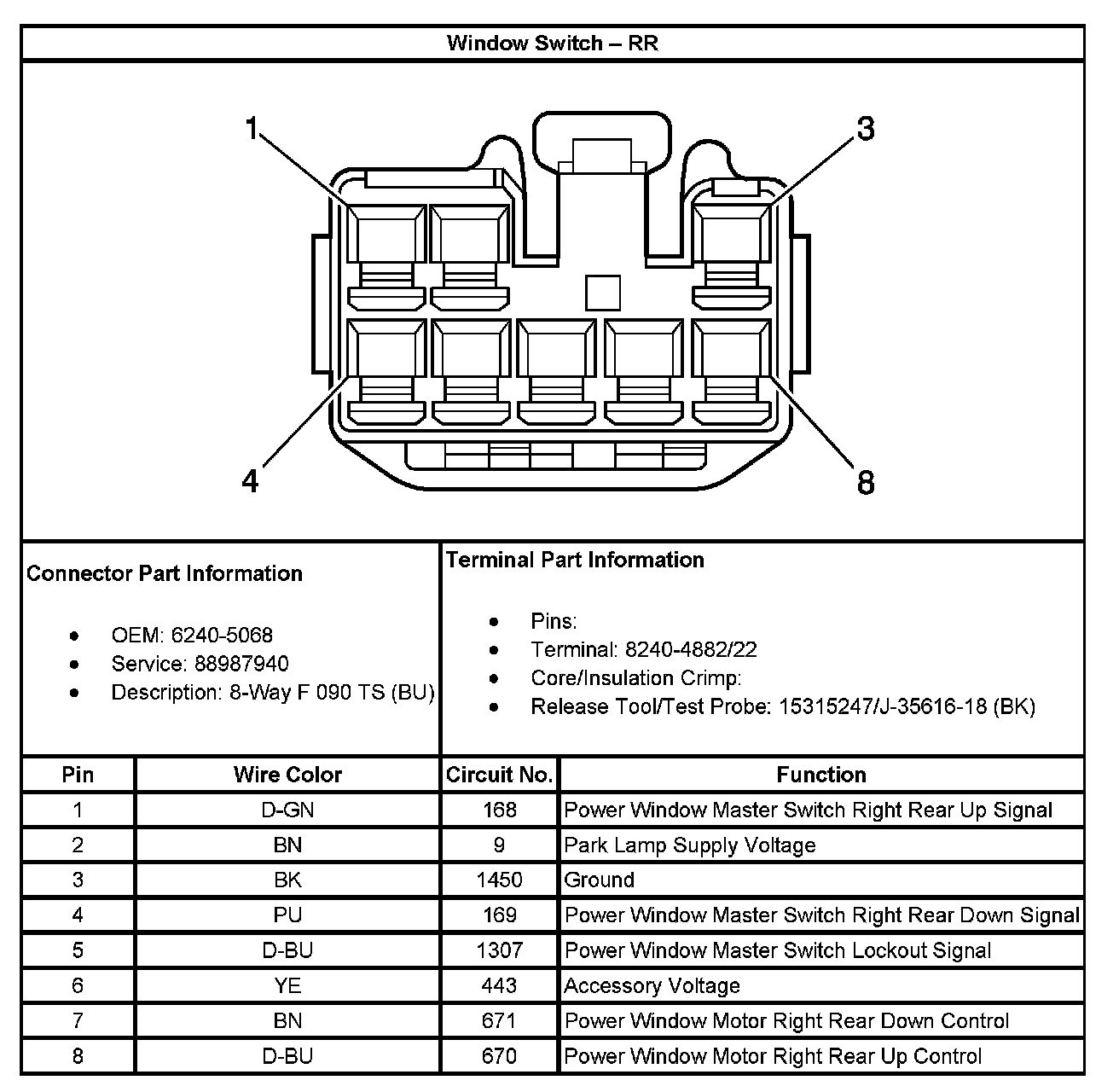

Window Switch - RR:
