Yaw Rate Sensor



Yaw Rate/Lateral and Longitudinal Accelerometer Sensor(JL4)

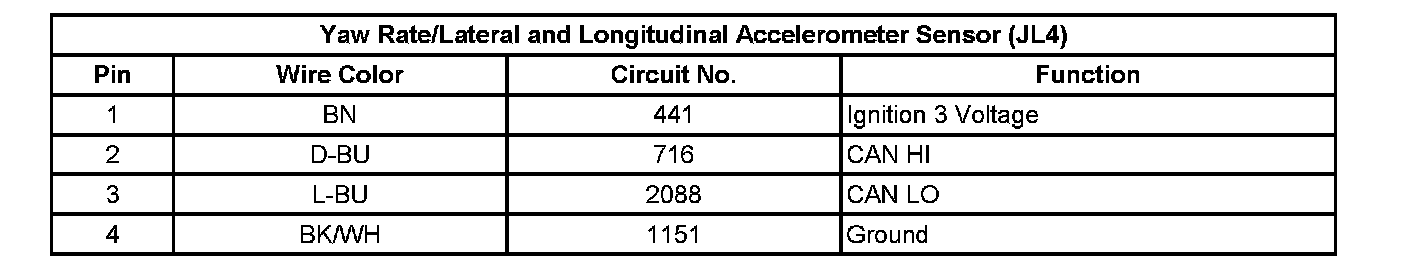

Yaw Rate/Lateral and Longitudinal Accelerometer Sensor (JL4):
