Accessory Delay Module

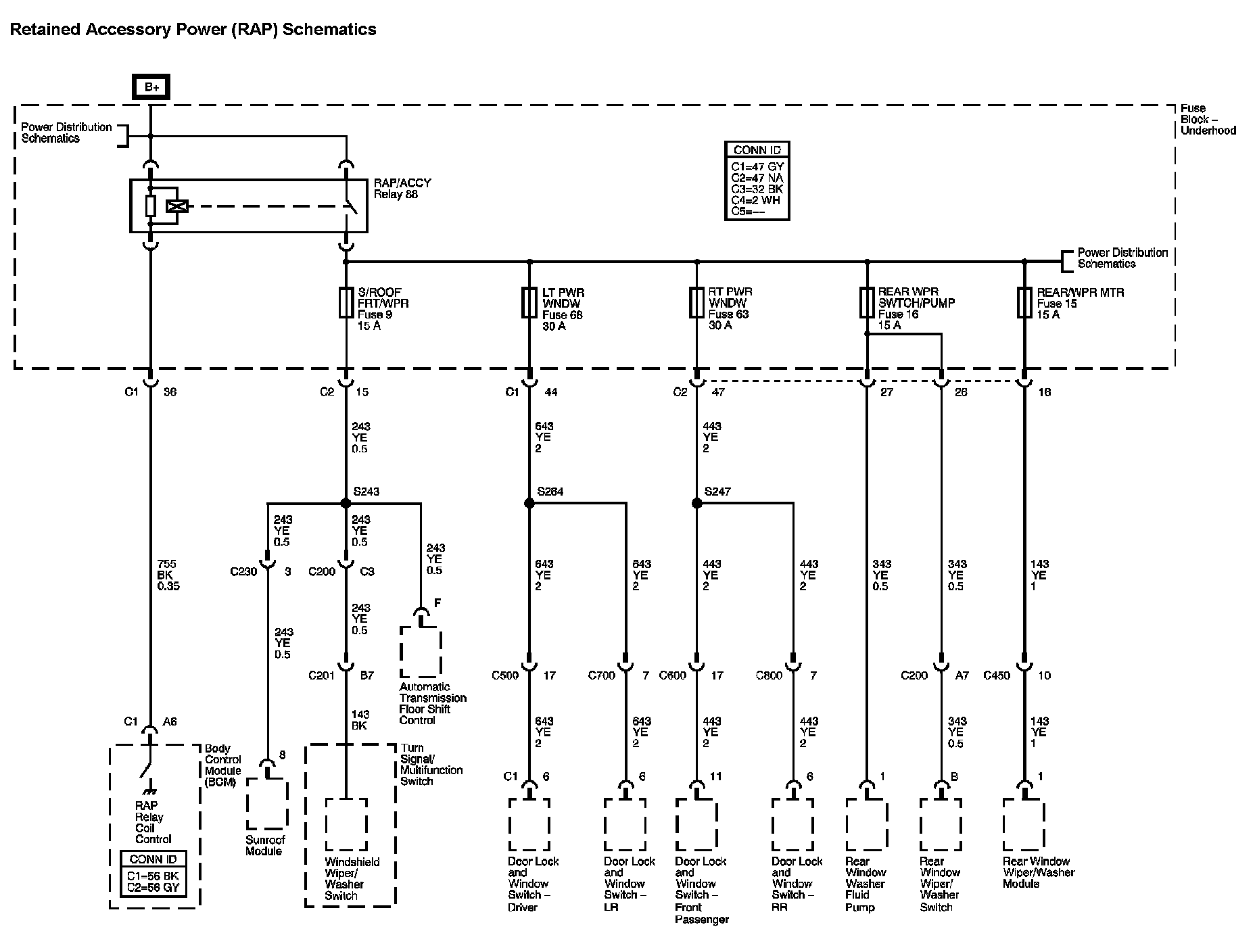

Retained Accessory Power (RAP) Diagram:

Location: The location for the connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
